Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
2.2KW
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ruile
-
Model Number:
-
RL-320
-
Dimension(L*W*H):
-
820x900x1980mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Name:
-
beef jerky packaging machine
-
Product name:
-
Automatic Vertical Packing Machine
-
Usage:
-
Food Snack
-
Main Function:
-
Weighing Forming Filling Sealing
-
Machine type:
-
Vertical Automatic Packing Machine
-
Packing material:
-
Plastic Film
-
Packing speed:
-
30-80bags/min
-
Bag type:
-
3/4/pillow Sides Seal
-
Film material:
-
Hot Seal Film
-
Item:
-
Food Industry
-
Certification:
-
CE Certification
Quick Details
-
Function:
-
BOXING, Capping, COATING, Embossing, FILLING, Gluing, Labeling, Laminating, Sealing, SLITTING, Wrapping
-
Packaging Type:
-
Bags, Barrel, Belt, Bottles, CANS, Capsule, Cartons, case, Film, Foil, Pouch, Stand-up Pouch
-
Packaging Material:
-
Glass, Metal, Paper, Plastic, Wood
-
Voltage:
-
220V/380V
-
Power:
-
2.2KW
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ruile
-
Model Number:
-
RL-320
-
Dimension(L*W*H):
-
820x900x1980mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Name:
-
beef jerky packaging machine
-
Product name:
-
Automatic Vertical Packing Machine
-
Usage:
-
Food Snack
-
Main Function:
-
Weighing Forming Filling Sealing
-
Machine type:
-
Vertical Automatic Packing Machine
-
Packing material:
-
Plastic Film
-
Packing speed:
-
30-80bags/min
-
Bag type:
-
3/4/pillow Sides Seal
-
Film material:
-
Hot Seal Film
-
Item:
-
Food Industry
-
Certification:
-
CE Certification
Multi-Function Potato/Crisps /Beef Jerky Packaging Machine
Introduction for beef jerky packaging machine
1.This machine adopts correcting system controlled by microcomputer, owing to a response signal is handle and pass through microcomputer it can accomplish whole set to synchronization, sack length, position fixing, voluntarily follow the tracks of light-mark and voluntarily diagnose trouble and show to screen.
2.This machine can automatically complete a series of actions, such as bag making, the measuring, filling, inflating, counting, sealing, code printing, material giving, stopping in certain quanting, fixde-bag cutting and same cutting.
3.Suitable for granule, particle material (
sugar puffed, fried fresh chip, cracknel, mooncake,tean and so on
).
4.Packing material should have hot-sealing material, such as polyester/polyethylene, nylon-compound membrane, strengthen-compound membrane, BOPP and so on
Techincal parameter for beef jerky packaging machine
|
Model |
RL-320 |
RL-350 |
RL-480 |
|
Power |
AC220V 50/60Hz 2.0KW |
AC220V 50/60Hz 2.5KW |
AC220V 50/60Hz 2.5KW |
|
Bag size |
30-150mm(L) 30-150mm ( W ) |
50-320mm(L) 30-150mm ( W ) |
80-320mm(L) 80-220mm ( W ) |
|
Bag type |
Three/four/pillow side sealing bag |
Three/four/pillow side sealing bag | Three/four/pillow side sealing bag |
|
Measure range |
10-100g |
10-300g | 100-1000g |
|
Film roll diameter |
Max. 320mm |
Max. 320mm | Max. 460mm |
|
Packaging speed |
40-80bag/min |
30-60bag/min | 20-40bag/min |
|
Machine weight |
380kg |
450kg | 480kg |
|
Machine size |
750*980*1780mm |
820x980x1980(mm) | 820x980x1980(mm) |
Feature for beef jerky packaging machine
1.Measuring cup, filling material in high accuracy.
2.Whole machine is made of food grade stainless steel 304 material.
3.PLC touch screen and important electric components are imported overseas.
4.The processes of bag making, measuring, filling, sealing, cutting, counting and heat pressing codes is be done automatically.
5. Our machine can make 3/4/pillow bag and connected bag. We can add make round hole or butterfly hole in bag.

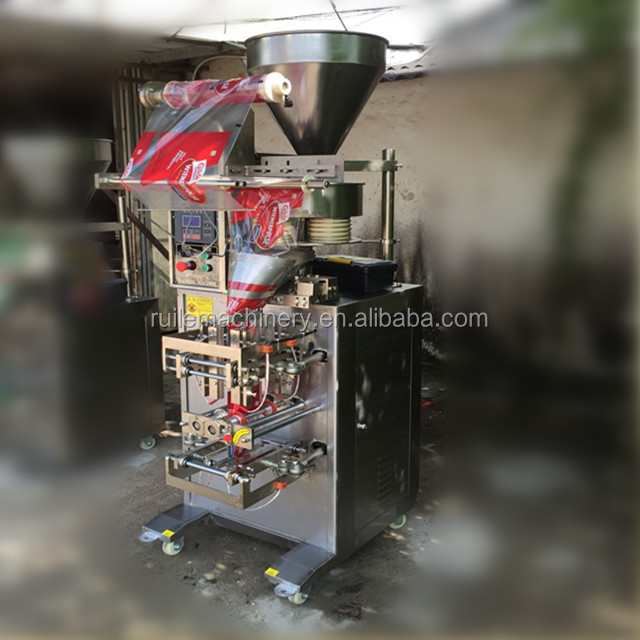

Detail pictures for beef jerky packaging machine
1. All our seller are professinal, they can recommend suitable and high quality machine for you by reasonable price.We can custom the machine according to your design.
2. We will deliver the machine as we agreed. Before we send out the machine, we will test it to gurantee our machine can work well. And we can provide video and pictures for you .
3. One year gurantee and longtime techincal support. Any spare breakdown in gurantee time, we will send them for free. 24hours online to solve any problem, supply English manual book.
If you are interested in our beef jerky packaging machine, pls free to contact us.
1.Q: What are your payment methods?
A: T/T,30% in advance,70% balance before delivery(Most of customers choose)
Western Union(for small amount only).
2.Q: What is MOQ?
A: MOQ is 1set.
3.Q:What is the delivery time?
A: If we have machines in stock, we can deliver it 3-5days.
Customized machine take about 10~15 days.
4. Q: Can I get Discount from buying your goods?
A: As everybody knows that the price depends on the quantity. We will automatically making discount to our regular customer.
5. Q: How can you send the equipments to my country?
A: We can arrange shipment to the destination port for you, as we have cooperated with experienced forwarding agents. We can quote you competitive freight cost.
6.Q: How about customization?
A: ODM/OEM business partner will be warmly welcome.Pls consult with us for more details.
7.Q: Customer Service:
A: Please contact us any time when you have questions or problems upon our products.
Your inquiry will be replied within 12 hours.
