Quick Details
-
Brand Name:
-
Melin Sunergy
-
Model Number:
-
ML2420
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
520W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE ,RoHS
-
Warranty:
-
36 Months, 3 Years
-
Product name:
-
24V 20A MPPT Solar Charge Controller Solar Panel Battery Inverter
-
Technical Type:
-
MPPT
-
Efficiency:
-
99%
-
Display:
-
Digital LCD screen
-
Waterproof:
-
IP32
-
OEM:
-
acceptable
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
System voltage:
-
12V/24V Auto
-
Color:
-
White
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Melin Sunergy
-
Model Number:
-
ML2420
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
520W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE ,RoHS
-
Warranty:
-
36 Months, 3 Years
-
Product name:
-
24V 20A MPPT Solar Charge Controller Solar Panel Battery Inverter
-
Technical Type:
-
MPPT
-
Efficiency:
-
99%
-
Display:
-
Digital LCD screen
-
Waterproof:
-
IP32
-
OEM:
-
acceptable
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
System voltage:
-
12V/24V Auto
-
Color:
-
White

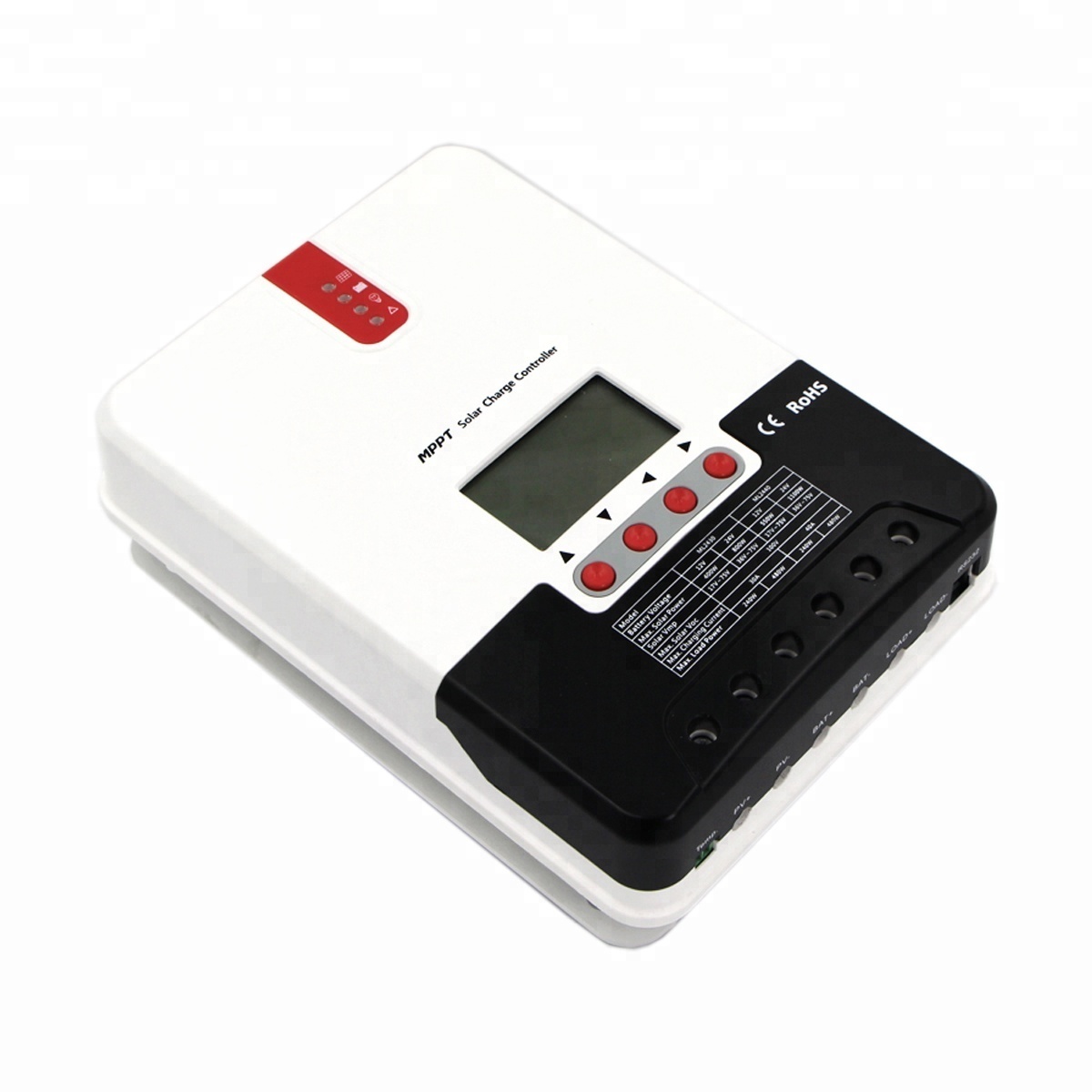

24V 20A Manual MPPT Solar Charge Controller Solar Panel Battery MPPT Inverter
| Product Model | ML2420 |
| System voltage | 12V, 24V auto |
| Battery voltage | 9V~70V |
| Max solar panel voltage | 100V(25 °C ), 90V(- 25 °C ) |
| Max input power |
260W/12V 520W/24V |
| Max capacity load capacity | 10000uF |
| No-load loss | 0.7W-1.2W |
| Charging current | 20A |
| Rated load current | 20A |
| Conversion efficiency | ≤98% |
| MPPT tracking efficiency | >99% |
| Operating temperature | -35 °C ~+45 °C |
| Temperature compensation factor | -3mv/ °C/2V(default) |
| Waterproof | IP32 |
| Communication method | RS232 |
| Altitude | ≤3000m |
| Product dimensions | 210x151x59.5mm |
| Weight | 1.4kg |
