Quick Details
-
Power:
-
45
-
Dimension(L*W*H):
-
12*3.5*.3 meter
-
Weight (KG):
-
600
-
Application:
-
Wood Processing
-
Usage:
-
Chip.shaving.sawdust
-
Spare parts:
-
Cutter Blades
-
After-sale Service:
-
Field Installation
-
Spindle speed:
-
1900-2800
-
Final product:
-
100 mesh
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SKY WIN
-
Voltage:
-
380v
-
Power:
-
45
-
Dimension(L*W*H):
-
12*3.5*.3 meter
-
Weight (KG):
-
600
-
Application:
-
Wood Processing
-
Usage:
-
Chip.shaving.sawdust
-
Spare parts:
-
Cutter Blades
-
After-sale Service:
-
Field Installation
-
Spindle speed:
-
1900-2800
-
Final product:
-
100 mesh

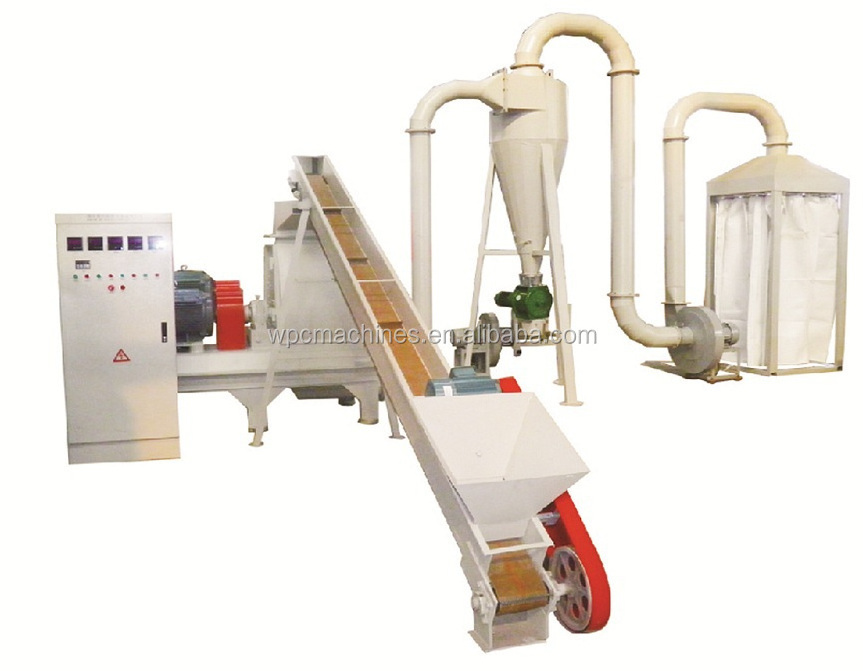

I. Practical Application: To pulverize wood chips/saw dust/ rice shell/ bamboo chips into powder for WPC use. (from 5mm into 40-120mesh) II. Instructions: If raw material size is over 5mm, you have to use a shredder first.
II. Technical parameters i. Main technical data of SWMF200 1. Raw material for processing: saw dust, wood chips and shavings, rice shell 2. Water content in raw material: less than 10% 3. Final powder size: 40-80mesh 4. Output:150-200Kg/hr 5. Total power: 19.5KW 6. Electric energy consumed about 14KW.h 7. Machine occupation area: 10m2 ii. Configuration and description
|
Type |
Output(KG/H) |
Power(KW) |
Meshes of product |
Outline dimension (mm) |
Weight (KG) |
|
SWMF200 |
200 |
55.5 |
40-80 |
5000*3000*3500 |
3500 |
|
SWMF400 |
400 |
85.5 |
40-80 |
6000*3500*4000 |
4000 |
|
SWMF200X |
200 |
45.5 |
80-120 |
4500*3000*4000 |
3000 |
PE film
Export standard wooden box.
Payment term:
30% advanced payment by T/T, 70% by T/T before delivery after the machines test to be OK in seller’ s factory.
Delivery Date:
60 working days from the date seller receives the first payment.
Machine Commissioning, Adjusting and Training:
1. The seller should send staff to help to install, adjust the machines and train the buyer’ s staff after notified by buyer.
2. The buyer should pay the seller for all the expenses of test, including travelling tickets back and forth, accommodation & food, personal safety, urgent illness, etc..
3. During the testing period, the buyer should pay every seller’ s staff for USD50 every day.
Warranty :
Mechanic parts (except screw and barrel) guaranteed in a year; electric parts guaranteed in half a year. During the guaranteed period, the buyer should change the broken component for a new one from the seller due to its bad quality.
Turn Key project, including WPC project feasibility analysis, workshop and electric facilities design, machine installation and test, staff training, formulation,mould adjust and test, after-sale service, etc...
