Quick Details
-
Working Temperature:
-
-5℃ to +65℃
-
Features:
-
Abrasion And Chemical Resistant, Impact And Crush Resistant
-
Transporting Medium:
-
Liquid, Powder, Granules
-
Connection:
-
Camlock, KC Nipple, Hose Mender, Bauer, Storz, Pin Lug
-
Product name:
-
PVC Suction Hose
-
Inner Diameter:
-
19mm-356mm
-
Used For:
-
Industry, Agriculture And Construction
-
Bursting Pressure:
-
9bar-30bar
Quick Details
-
Place of Origin:
-
Shandong, China
-
Color:
-
Blue, Orange, Yellow, Red, etc
-
Working Pressure:
-
3bar-10bar
-
Working Temperature:
-
-5℃ to +65℃
-
Features:
-
Abrasion And Chemical Resistant, Impact And Crush Resistant
-
Transporting Medium:
-
Liquid, Powder, Granules
-
Connection:
-
Camlock, KC Nipple, Hose Mender, Bauer, Storz, Pin Lug
-
Product name:
-
PVC Suction Hose
-
Inner Diameter:
-
19mm-356mm
-
Used For:
-
Industry, Agriculture And Construction
-
Bursting Pressure:
-
9bar-30bar

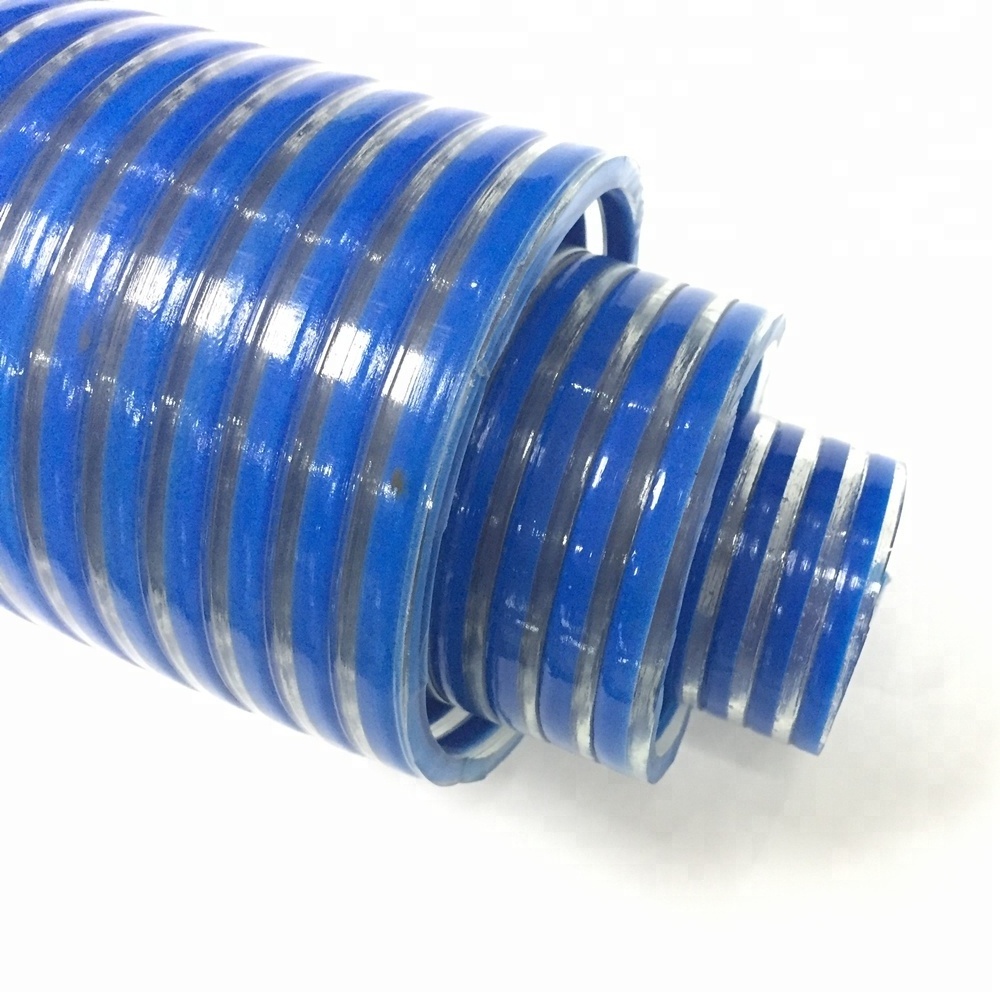

Durable Flat Corrugated Flexible 8 Inch, 10 inch PVC Water Pump Suction Hose pipe Duct Vacuum Hose
Application
For suction and delivery of liquids, powder, granules in industry, agriculture and construction.
Features
Flexible PVC with rigid PVC spiral reinforcement, abrasion and chemical resistant, impact and crush resistant, smooth inner construction for unrestricted flow of materials.
Temperature Range -5℃ to +65℃
Specification
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 3/4 | 19 | 0.984 | 25 | 0.28 | 8 | 120 | 50 | 150 |
| 1 | 25 | 1.221 | 31 | 0.35 | 8 | 120 | 50 | 150 |
| 1-1/4 | 32 | 1.496 | 38 | 0.40 | 7 | 100 | 50 | 150 |
| 1-1/2 | 38 | 1.811 | 46 | 0.65 | 7 | 100 | 50 | 150 |
| 2 | 51 | 2.362 | 60 | 1.05 | 6 | 90 | 50 | 150 |
| 2-1/2 | 64 | 2.913 | 74 | 1.30 | 6 | 90 | 30 | 90 |
| 3 | 76 | 3.386 | 86 | 1.70 | 5 | 75 | 30 | 90 |
| 4 | 102 | 4.488 | 114 | 3.00 | 5 | 75 | 30 | 90 |
| 5 | 127 | 5.512 | 140 | 3.60 | 4 | 60 | 30 | 90 |
| 6 | 153 | 6.614 | 168 | 5.50 | 4 | 60 | 20 | 60 |
| 8 | 203 | 8.622 | 219 | 7.00 | 3 | 45 | 10 | 30 |
| 10 | 254 | 10.787 | 274 | 12.00 | 2 | 30 | 10 | 30 |
| 12 | 305 | 12.953 | 329 | 18.00 | 2 | 30 | 10 | 30 |
pvc suction hose types:
1. standard duty pvc suction hose
2. heavy duty pvc suction hose
3. pvc fiber braided reinforced suction hose
4. sand blast suction hose
5. pvc suction hose assembly
6. we supply pvc suction hose with different connectors
7. corrugated outer surface suction hose
8. smooth outer and inner surface suction hose
9. we supply clear and non transparent pvc suction hose
