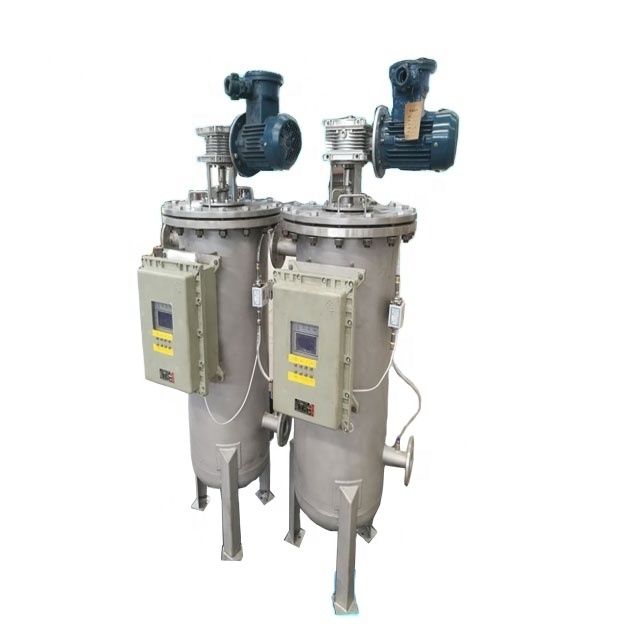

50/100/200/300 Micron Automatic hydraulic self cleaning filter housing Screen Filter

50/100/200/300 Micron Automatic hydraulic self cleaning filter housing Screen Filter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4900

≥5 Pieces

US $4700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

After-sales Service Provided:: Overseas third-party support available

Control Voltage:: AC24V

Control Time:: 10--200s

Type:: DN40-DN80

Filtration Precision:: 10---4000 um

Application:: Liquid purification

Feature:: Continuous filtration

Keyword:: Self cleaning filter

Filter precision:: 1~100um

Function:: Removing Impurities

Quick Details

Weight (KG):: 150

Place of Origin:: Henan, China

Brand Name:: Junyi

After-sales Service Provided:: Overseas third-party support available

Control Voltage:: AC24V

Control Time:: 10--200s

Type:: DN40-DN80

Filtration Precision:: 10---4000 um

Application:: Liquid purification

Feature:: Continuous filtration

Keyword:: Self cleaning filter

Filter precision:: 1~100um

Function:: Removing Impurities

Introduction of Self Cleaning Filter

The Self-cleaning Filter is a kind of more precise filter, which is consist of the high strength filter screen and the stainless steel scraping brush. The filtration, cleaning and slag discharge will be realized by manual control or automatic control to achieve the purpose of purification.

According to the installation position, Horizontal Self Cleaning or Vertical Self Cleaning Filter or Y Type Self-cleaning Filter can be chosen. We also support customization.

Working Principle of Automatic Self-cleaning Brush Filter

1. After the liquid flows into the filter housing through the inlet, the filtration will be realized from the inside of the metal screen to the outside. Then the impurities will be blocked on the internal surface.

2.When the pressure difference between the inlet and outlet reaches the set value or the timer reaches the set time, the controller will send a signal to drive the motor to rotate the brush for cleaning. At the same time, the drain valve will be opened. With the scrapping of the metal brush or nylon brush, the impurity particles adsorbed on the screen will fall down and be discharged with the water from the drain valve.

3.After the cleaning has been finished, the motor will stop running. During the whole process, the material flows continuously, realizing the continuous and automatic production.

Different Modesl with Technical Details

Model	Flow (M3/H)	Inlet/Outlet	Drain Outlet	Diameter of Housing
JYSCF-50	20	DN50	DN25	219
JYSCF-65	30	DN65	DN25	273
JYSCF-80	40	DN80	DN25	273
JYSCF-100	60	DN100	DN50	273
JYSCF-125	100	DN125	DN50	273
JYSCF-150	150	DN150	DN50	350
JYSCF-200	250	DN200	DN50	377
JYSCF-250	400	DN250	DN50	426
JYSCF-300	500	DN300	DN50	529
JYSCF-350	750	DN350	DN80	529
JYSCF-400	1000	DN400	DN80	600
JYSCF-450	1200	DN450	DN100	600
JYSCF-500	1500	DN500	DN100	700
JYSCF-600	2100	DN600	DN100	800
JYSCF-700	3000	DN700	DN200	900
