Quick Details
-
Dimension(L*W*H):
-
5300*2050*2700mm
-
Weight:
-
9000 KG
-
Drilling Depth:
-
400m
-
Mobility:
-
crawler
-
Drilling depth::
-
400m
-
Feature:::
-
Well Drilling Rig For Sales
-
Name:
-
Well Drilling Rig For Sales
-
drilling diameter:
-
130-400mm
-
One advance length:
-
3000mm
-
Walking speed:
-
2.5km/h
-
Working pressure:
-
30Mpa
-
Tractor power::
-
105KW
-
Air consuption:
-
17-35m3 / min
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
5300*2050*2700mm
-
Weight:
-
9000 KG
-
Drilling Depth:
-
400m
-
Mobility:
-
crawler
-
Drilling depth::
-
400m
-
Feature:::
-
Well Drilling Rig For Sales
-
Name:
-
Well Drilling Rig For Sales
-
drilling diameter:
-
130-400mm
-
One advance length:
-
3000mm
-
Walking speed:
-
2.5km/h
-
Working pressure:
-
30Mpa
-
Tractor power::
-
105KW
-
Air consuption:
-
17-35m3 / min
Product Description

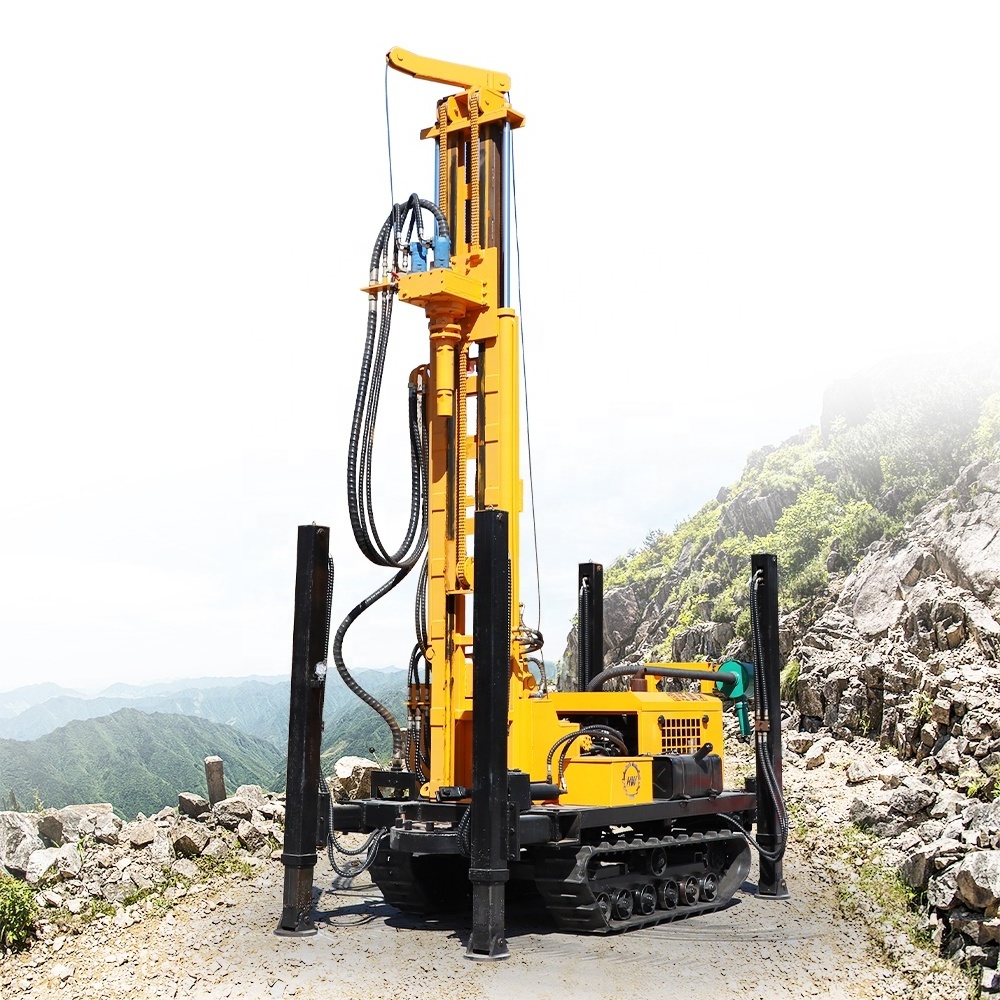

DTH pneumatic water drilling rig machine well drilling rig
Pneumatic Drilling Rig Hengwang pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc.
Note here:
* Drilling rock: 20m ~ 40m / hour
* Drilling depth:400 m
* Drilling diameter: 130-400 mm
* Motor power: 105Kw
* Competitive price
* Site instruction and installation
*Professional after-sales team
* CE, BV, TUV, ISO
* Drilling diameter: 130-400 mm
* Motor power: 105Kw
* Competitive price
* Site instruction and installation
*Professional after-sales team
* CE, BV, TUV, ISO
This drilling rig needs to be
used with an air compressor
. If you want to buy an air compressor at the same time, please tell us your drilling depth and diameter, and we will give the corresponding recommendation:
Our drilling rig is equipped with
high hydraulic outriggers
. If you need this function, we can provide you with this configuration extra, because it can be convenient for you to install the drilling rig on a truck for long-distance transportation.
|
Model
|
HQZ-450L
|
|
Total Weight（T )
|
8/10
|
|
Dimensions（mm )
|
5300*2050*2700
|
|
Drilling Diameter（mm)
|
130-400
|
|
Drilling Depth（m)
|
450
|
|
One-time Advance Length of the Drill（mm)
|
3000/6000
|
|
Walking Speed（km/h)
|
6
|
|
Climbing Ability（max )
|
25
|
|
Min.Ground Clearance（mm )
|
300
|
|
Working Air Pressure（Mpa )
|
1.7-3.5
|
|
Air Consumption（m3 /min )
|
17-35
|
|
Main Power（kw)
|
100/6 cylinder
|
|
Rotation（rpm)
|
45-75
|
|
Rotary Torque（N.m )
|
9000-10000
|
Customer Feedback
The following images of pneumatic water well drilling rig are from customer feedback (Vietnam, Thailand, Chile, Mexico, South Africa, Philippines, Malaysia, Colombia,etc.), We also have a lot of
customer feedback
videos, if you are interested, please contact us
The pneumatic drilling rig is multifunction, with different configurations suitable for different geologies.Accept customization,any good ideas please contact us, our engineers will help you get what you want, we can also put the platform on a truck mounted chassis
back hammer, impactors, bits and other accessories of this pneumatic drilling rig are packed in plywood cases. 1 set shipped with 20GP; The complete set with air compressor needs a 40GP;
