Quick Details
-
Model Number:
-
HHC15D
-
Max. Current:
-
16(10)A
-
Product name:
-

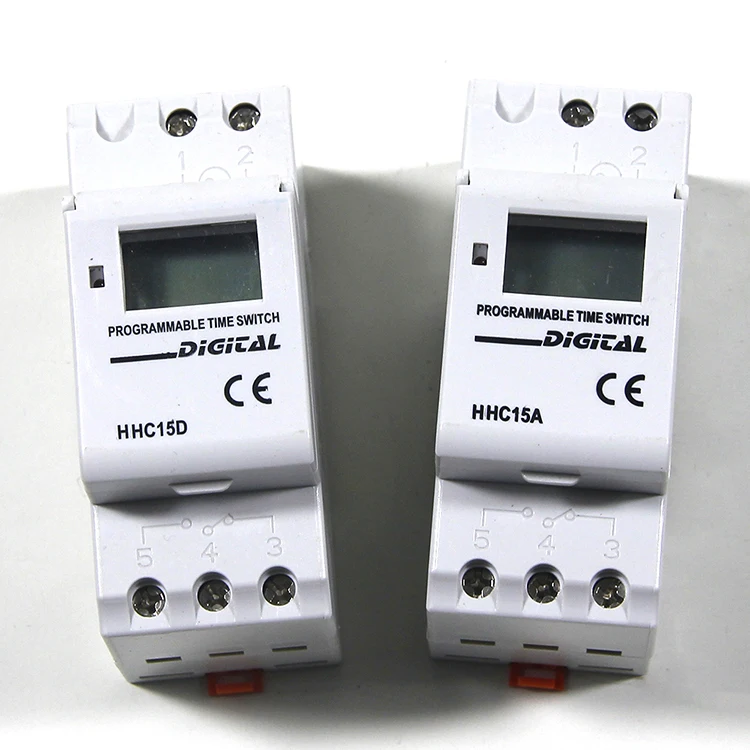

Astronomical timer
-
Type:
-
HHC15D
-
Dimension:
-
86*36*66mm
-
Rated voltage:
-
AC 220V 85%-110%
-
Installation type:
-
DIN-rail
-
Frequency:
-
50-60Hz
-
Full timing range:
-
Per week or per day cycle, auto change the time as to latitude
-
Programmable:
-
8 ON/OFF per day/week
-
Type of protection:
-
IP 20
-
Housing and insulation material:
-
High-temperature resistant, self-extinguishing thermoplastic
Quick Details
-
Max. Voltage:
-
220 VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CKMINE
-
Model Number:
-
HHC15D
-
Max. Current:
-
16(10)A
-
Product name:
-
Astronomical timer
-
Type:
-
HHC15D
-
Dimension:
-
86*36*66mm
-
Rated voltage:
-
AC 220V 85%-110%
-
Installation type:
-
DIN-rail
-
Frequency:
-
50-60Hz
-
Full timing range:
-
Per week or per day cycle, auto change the time as to latitude
-
Programmable:
-
8 ON/OFF per day/week
-
Type of protection:
-
IP 20
-
Housing and insulation material:
-
High-temperature resistant, self-extinguishing thermoplastic
|
Type
|
HHC15D
|
|
Rated Voltage
|
AC 220V 85%-110%
|
|
Contact capacity
|
16(10)A, 250VAC
|
|
Power reserve
|
3 years
|
|
Programmable
|
8 ON/OFF per day/week
|
|
Minimum setting Unit
|
15 min
|
|
Type of protection
|
IP 20
|
|
Ambient temperature
|
–10 °C +50°C
|
