HW series belt pulley driven mixed flow water pump

HW series belt pulley driven mixed flow water pump

FOB Reference Price: Get Latest Price

≥1 Sets

US $300

≥5 Sets

US $280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: One Year, 1 year

Brand Name:: Wolf Pump

Model Number:: HW

Place of Origin:: Sichuan, China

Outlet Size:: DN150-800

Power:: 450kw

motor:: Horizontal

Pump name:: belt pulley driven mixed flow water pump

Material:: cast iron

Seal:: mechanical seal

Character 1:: mixed flow

Character 2:: big flow

Driven:: by motor or diesel engine

Flow:: 180-7200m3/h

Head:: 5-17m

Usage:: irrigation,floods,drainage

Quick Details

Application:: Developing World Water Solutions, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, Water Distribution

Pressure:: High Pressure

Voltage:: 220-480V

Warranty:: One Year, 1 year

Brand Name:: Wolf Pump

Model Number:: HW

Place of Origin:: Sichuan, China

Outlet Size:: DN150-800

Power:: 450kw

motor:: Horizontal

Pump name:: belt pulley driven mixed flow water pump

Material:: cast iron

Seal:: mechanical seal

Character 1:: mixed flow

Character 2:: big flow

Driven:: by motor or diesel engine

Flow:: 180-7200m3/h

Head:: 5-17m

Usage:: irrigation,floods,drainage

HW series belt pulley driven mixed flow water pump

Product Description

Introduction:

1.HW mixed flow pump is horizontal, single stage, single suction volute type pump; it is suitable for
transporting clean water or similar chemical liquid whose temperature is under 50°C.

2.The mixed flow pump has the features of simple structure, reliable in operation, easy installation,
high efficiency, small dimension, light weight.,

3.It is in high efficiency and energy saving type, mainly used for agricultural irrigation, sugar factory,
paper making factory and can also be used for floods and rain water drainage.

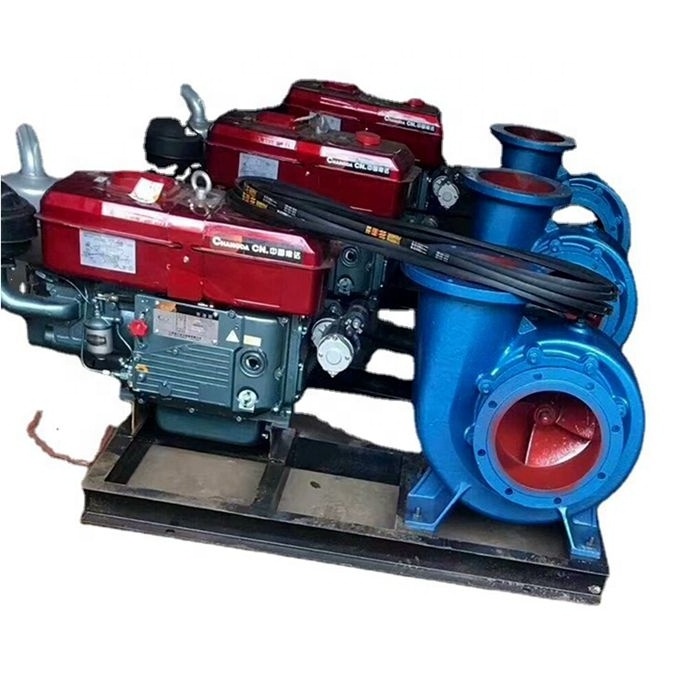

4.The pump's performance range: flow 130~9000m/h, head 3.5~22m.Can be direct connection or belt pulley driven
by electric motor or diesel engine.

5.It is widely used in farmland irrigation, industrial and urban water supply, drainage and other occasions

Mixed Flow Pump Data Sheet
Model	Flow(m3/h)	Head(m)	Power(Kw)	Speed(r/min)	Efficiency(%)
150HW-5	180	5	4	1450	82
150HW-8	180	8	5.5	1450	82
150HW-12	180	12.5	11	2900	82
200HW-5	360	5	7.5	1450	81.5
200HW-8	360	8	11	1450	83.5
200HW-12	360	12.5	18.5	1450	83.5
250HW-5	540	5	11	1180	82
250HW-8	540	8	18.5	1180	84
250HW-12	540	12.5	30	1180	84
300HW-5	792	5	15	970	83
300HW-8	792	8	22	970	85
300HW-12	792	12.5	37	970	85
400HW-8	1116	8.4	45	730	86
400HW-10	1400	9.94	55	730	86
500HW-6	1980	6.2	55	580	87
650HW-5	3312	5.1	75	485	85
650HW-7	3663	7.6	100	485	88
650HW-10	3322	9.7	115	490	88
800HW-10	5980	12.2	250	490	88
800HW-16	7200	17.7	450	590	88
