Quick Details
-
Model Number:
-
SSV
-
Brand Name:
-
ONNT
-
Product name:
-

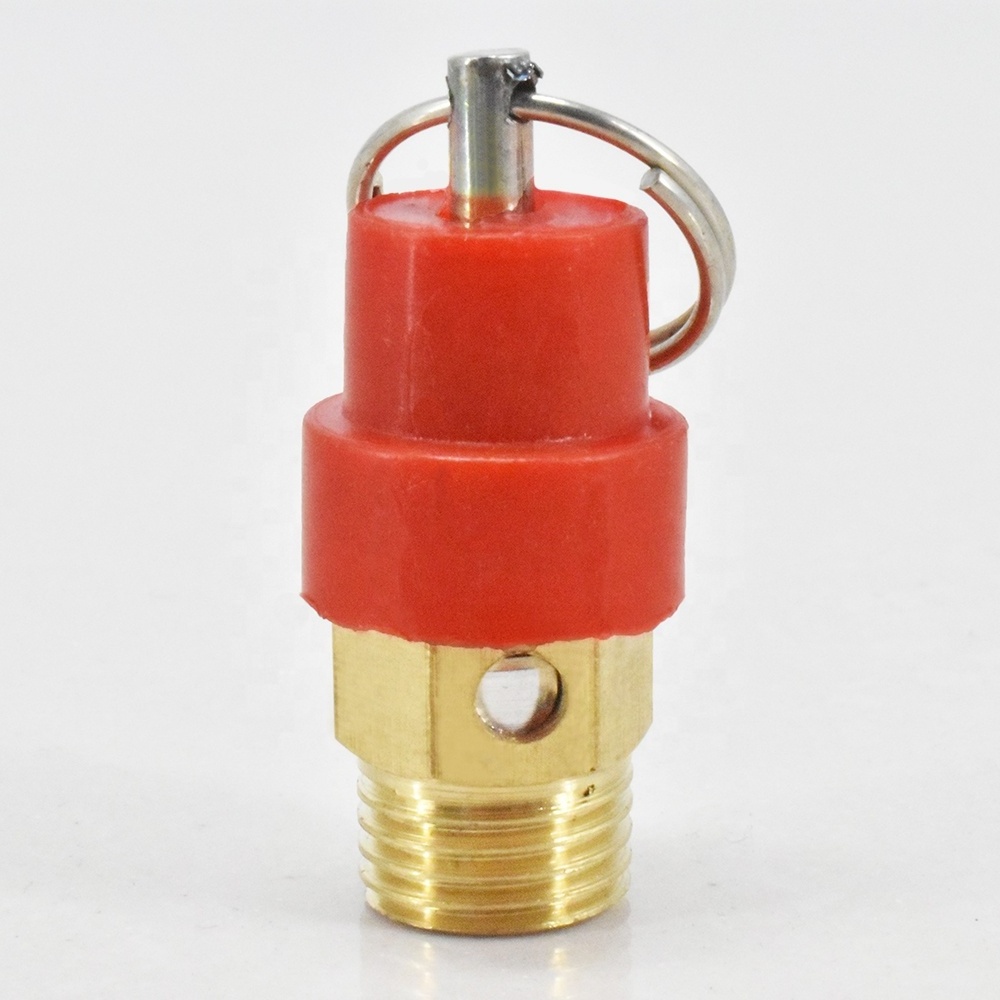

Mini brass Air Compressor Safety Pressure Relief Valve
-
Size:
-
1/8'' 1/4'' 3/8'' 1/2'' 3/4''
-
Color:
-
Yellow Red
-
Body material:
-
Brass
-
Operating Temperature:
-
0~60℃
-
Max.Working Pressure:
-
1.0Mpa
-
Acting Type:
-
Direct action
-
Type:
-
Safety Relief Valves
Quick Details
-
Port Size:
-
1/8'' 1/4'' 3/8'' 1/2'' 3/4''
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
SSV
-
Brand Name:
-
ONNT
-
Product name:
-
Mini brass Air Compressor Safety Pressure Relief Valve
-
Size:
-
1/8'' 1/4'' 3/8'' 1/2'' 3/4''
-
Color:
-
Yellow Red
-
Body material:
-
Brass
-
Operating Temperature:
-
0~60℃
-
Max.Working Pressure:
-
1.0Mpa
-
Acting Type:
-
Direct action
-
Type:
-
Safety Relief Valves
Taizhou Safety Valve Yellow Red Hat Red Cap Male Thread Gas Water Burner Brass Compressor Safety Mini Pressure Air Relief Valve
Ordering Code
SSV - 01 - 8bar
Series Size Relief Pressure
01:PT1/8 (Red cap) 2: 2bar 6: 6bar
02:PT1/4 (Red cap) 3: 3bar 7: 7bar
03:PT3/8 (Yellow cap) 4: 4bar 8: 8bar (Standard pressure)
04:PT1/2 (Yellow cap) 5: 5bar 10:10bar
Specifications
| Model |
SSV-01 |
SSV-02 |
SSV-03 |
SSV-04 |
|
| Fluid | Air( to be filtered bu 40 µ m filter element) | ||||
| Action | Direct acting type | ||||
| Port size | 1/8'' 1/4'' 3/8'' 1/2'' | ||||
| Operating pressure | 0~12.0kgf/cm² | ||||
| Ambient & fluid Temperature °C | 0~60℃ | ||||
| Lubrication | Not required | ||||
| Main parts material | Body | Copper | |||
| Seal | NBR | ||||
