Quick Details
-
Dimension(L*W*H):
-
2400x1450X1800mm
-
Weight:
-
800 KG
-
Key Selling Points:
-
High efficiency
-
Product name:
-
wood chipper
-
Application:
-
Cutting Forestry Wood Log Waste
-
Usage:
-
Wood Shredder Cutting Wood Branch
-
Keywords:
-
mobile wood chipper
-
Color:
-
Customer Requirements
-
Feature:
-
Easy Opperation
-
Package:
-
Wooden Case
-
Feeding system:
-
Hydraulic Feeding System
-
Capacity:
-
0.8t-1.2t
-
Advantage:
-
High Efficieny
Quick Details
-
Use:
-
Wood Chipper machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CQ
-
Dimension(L*W*H):
-
2400x1450X1800mm
-
Weight:
-
800 KG
-
Key Selling Points:
-
High efficiency
-
Product name:
-
wood chipper
-
Application:
-
Cutting Forestry Wood Log Waste
-
Usage:
-
Wood Shredder Cutting Wood Branch
-
Keywords:
-
mobile wood chipper
-
Color:
-
Customer Requirements
-
Feature:
-
Easy Opperation
-
Package:
-
Wooden Case
-
Feeding system:
-
Hydraulic Feeding System
-
Capacity:
-
0.8t-1.2t
-
Advantage:
-
High Efficieny
tracks distributor 40 ton horizontal log splitter gas and branch shredder wood grinder chipper crusher machine
The branch shredder is suitable for gardens, orchards, road tree maintenance, parks, and residential roads to smash branches. The shredded branches can be used for in-situ burying and covering, garden bed bases, edible fungi, papermaking, biological power generation, papermaking and other waste reuse. The crushed wood chips can be sprayed directly into the vehicle, reducing the volume by 80%, saving transportation costs, energy saving and environmental protection.
tracks distributor 40 ton horizontal log splitter gas and branch shredder wood grinder chipper crusher machine
Technical Parameter:
|
Model |
CQ -6130 |
|
Cutter diameter( mm ) |
300 |
|
Equipped with powe r |
3 5 HP diesel engine(22kw) |
|
Spindle speed( r/min ) |
2500 |
|
Inlet size( mm ) |
650x400 |
|
Number of blades (piece) |
3 movable knives, 1 static knife |
|
Feeding roller power |
Hydraulic motor |
|
Start method |
Electric start |
|
Tire size |
165/70r13 |
|
Max . diameter of processed material(mm) |
150 |
|
Discharge size (mm) |
10-30( adjustable ) |
|
Capacity (kg/h) |
800-150 0kg/h |
|
Discharge height |
2.5m |
|
Weight |
800kg |
working principle:
The branch shredder uses a motor or a diesel engine as the power source, and drives the fly cutter to rotate at a high speed to slice and smash as a whole. It mainly smashes poplar, pine, miscellaneous wood, bamboo, fruit branches, branches and leaves, and is suitable for edible fungus sawdust processing. It is also suitable for the crushing of fiber materials such as corn stalks, straws, weeds, sorghum stalks, reed stalks, etc.
tracks distributor 40 ton horizontal log splitter gas and branch shredder wood grinder chipper crusher machine
Features :
1. Equipped with traction frame tires, it is convenient to move when pulled by tractors and cars, and can crush materials anytime and anywhere.
2. Equipped with hydraulic feeding system, safe and efficient, can be advanced, retreated, and can be stopped.
3. The discharging steering pipe is equipped with a direction adjustment device for quick adjustment, which is convenient for crushing operations in different working places.
4. Equipped with a generator, the battery can start the operating system with one button.
5. The steel frame structure of the grinder is processed by laser cutting and numerical control. The grinder is durable and has good performance and long life.

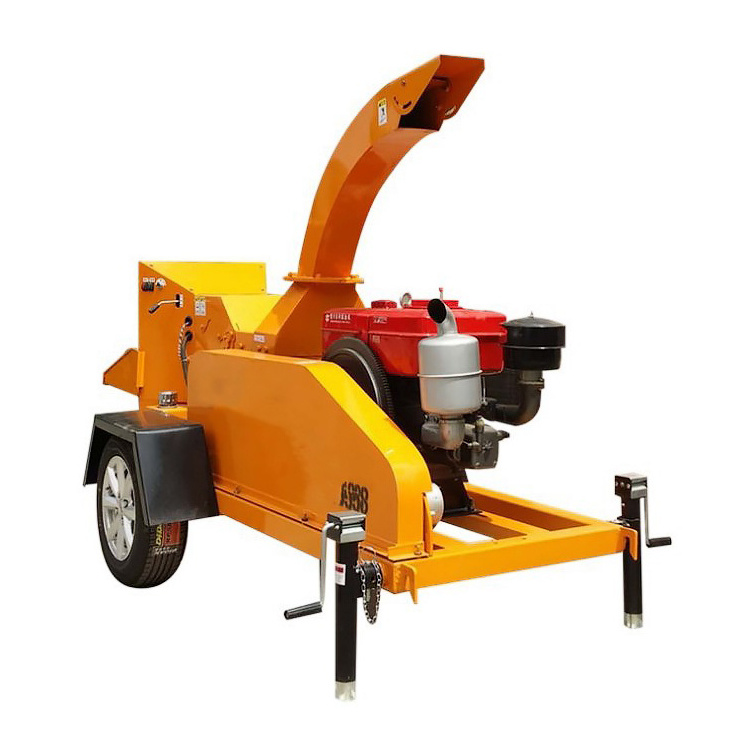

Actual pictures:
tracks distributor 40 ton horizontal log splitter gas and branch shredder wood grinder chipper crusher machine
FAQ :
1.Is your company a trading one or a factory?
Factory and trade (we have our own factory site.)
2.Which payment terms are you accepted?
T/T, Paypal and Western Union.
3.When to deliver the goods after the order is placed?
It depends on the quantity of the products. Generally we can arrange shipment after 7 to 15 days.
4. Does your company accept customization?
We have excellent design team, and we accept OEM.
5.What about the cooperation process?
Confirm details of the order, 30% deposit, arrange to produce, pay the balance before shipment.
