Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINFUXIN
-
Voltage:
-
380v 50hz 3phase (customized)
-
Dimension(L*W*H):
-
35M*6M*6M
-
Power (kW):
-
120
-
Weight:
-
24000 KG
-
After-sales Service Provided1:
-
Field installation, commissioning and training
-
After-sales Service Provided2:
-
Field maintenance and repair service
-
After Warranty Service:
-
Spare parts
-
Power(W):
-
120kw
-
Certification:
-
CE ISO
-
Marketing Type:
-
Ordinary Product
-
plastic monofilament extruder:
-
pp monofilament extruder
-
PP monofilament extruder:
-
PP PE monoiflament extruder
-
monofilament extruder:
-
rope net monofilament extruder
-
rope net monofilament extruder:
-
rope net monofilament making machine
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw Speed (rpm):
-
90 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINFUXIN
-
Voltage:
-
380v 50hz 3phase (customized)
-
Dimension(L*W*H):
-
35M*6M*6M
-
Power (kW):
-
120
-
Weight:
-
24000 KG
-
After-sales Service Provided1:
-
Field installation, commissioning and training
-
After-sales Service Provided2:
-
Field maintenance and repair service
-
After Warranty Service:
-
Spare parts
-
Power(W):
-
120kw
-
Certification:
-
CE ISO
-
Marketing Type:
-
Ordinary Product
-
plastic monofilament extruder:
-
pp monofilament extruder
-
PP monofilament extruder:
-
PP PE monoiflament extruder
-
monofilament extruder:
-
rope net monofilament extruder
-
rope net monofilament extruder:
-
rope net monofilament making machine
Machine Description
Plastic PE P
P Nylon Monofilament/Yarn/Fiber Extrusion Line
I. Brief Introduction of PP PE Nylon Monofilament Extrusion Line
Plastic monofilament extrusion line consists of material loader and dryer,, extruder, material filter, melt pump, mold, haul-off rollers, ovens, and winders
----Raw material: plastic granules
----high tension
----Monofilament diameter: 0.05-1.0mm or as customer needs
Extrusion line picture
PE PP Nylon monofilament yarn fiber picture
PET PP Nylong monofilament yarn fiber application
II. Main Technical Parameters
|
NO
|
Machine Model
|
Machine Capacity
|
Power Consumption
(KW)
|
|
1
|
SJ75
|
60-70kg/h
|
130
|
|
2
|
SJ90
|
150-200kg/h
|
160
|
|
3
|
SJ110
|
200-250kg/h
|
180
|
|
4
|
SJ120
|
250-300kg/h
|
210
|
Machine Pictures & Details
1. S single screw extruder
----optional material drying and loading system for different material
2 . Material Filter, Melt pump, Extrusion Mould & Cooling Tank
--- candle type filter, bigger filtering area, no need change filter net shortly.
----
Close--loop control system
from extruder to melt pump, by which extrusion can be automatically controlled by melt pump.
----Melt pump ensures stable extrusion
----Melt pump ensures stable extrusion
---304 stainless steel water cooling tank
3. Extrusion Mould
---produce different size monofilaments
---hole quantity can be changed

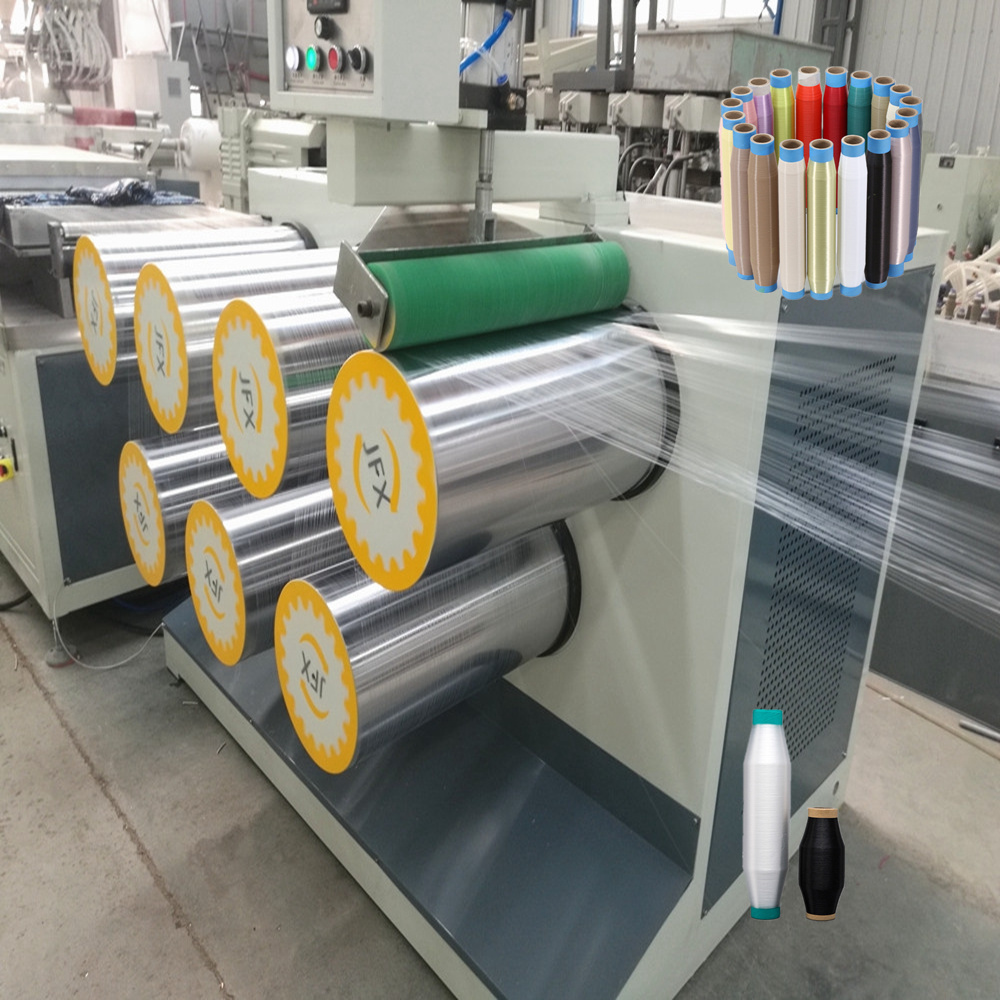

4. Haul-off Rollers
--gear transmission
---chromized rollers
---rollers are PLC synchronized speed control
5. Water Oven
---made by 304 stainless steel
6. Air Oven
---forced air blowing system
---inverter control
---good heat-preservation
7. Winding machine I
---specially designed for broom brush monofilament
Winding machine II
--I-wheel bobbin
--winding weight: as customer needs
Winding machine III
Winding machine IV
--Olival spindle
Machine packaging & Delivery
