Quick Details
-
Brand Name:
-
GRX
-
Warranty Time:
-
12months
-
Product name:
-
Industrial 1000M transceiver 2 1000M RJ45 Port & SC Optical Port
-
Fiber Type:
-
Multi/single mode&dual/single-fiber
-
Ports:
-
2+1 Ports
-
Transmission distance:
-
20KM
-
Power supply:
-
DC 12v-36v
-
Function:
-
Distribution Fiber System (FTTH)
-
Warranty:
-
24 months
-
Operating temperature:
-
-35-80℃
-
Data Rate:
-
10/100/1000Mbps
-
Feature:
-
High-performance
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
GRX-ISYT20-1F2T
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GRX
-
Warranty Time:
-
12months
-
Product name:
-
Industrial 1000M transceiver 2 1000M RJ45 Port & SC Optical Port
-
Fiber Type:
-
Multi/single mode&dual/single-fiber
-
Ports:
-
2+1 Ports
-
Transmission distance:
-
20KM
-
Power supply:
-
DC 12v-36v
-
Function:
-
Distribution Fiber System (FTTH)
-
Warranty:
-
24 months
-
Operating temperature:
-
-35-80℃
-
Data Rate:
-
10/100/1000Mbps
-
Feature:
-
High-performance
|

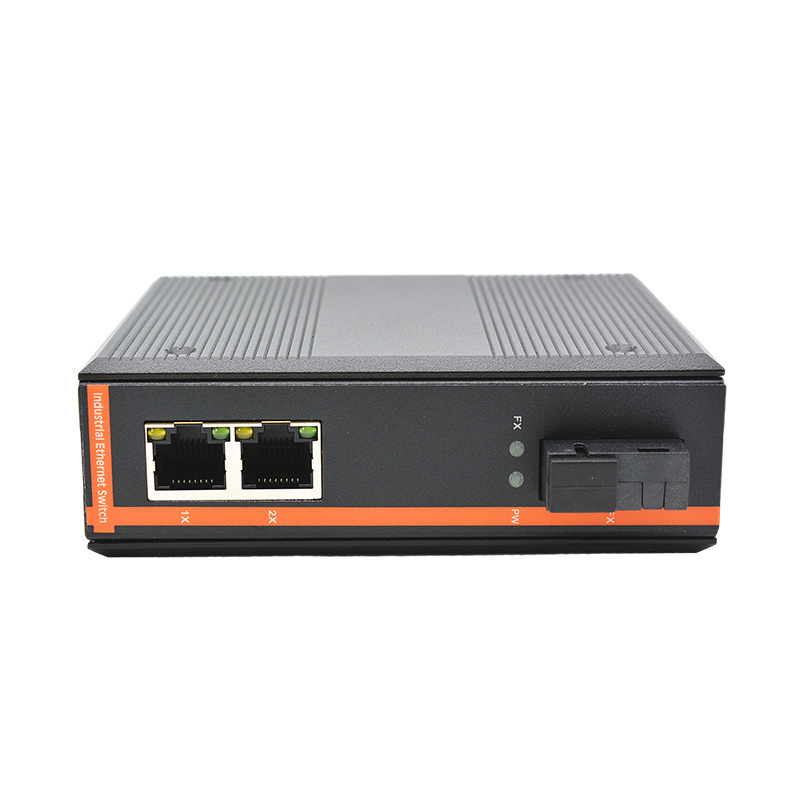

Product name
|
1000M Industrial Transceiver 1 SC Optical Port and 2* 10/100/1000M RJ45 Ports
|
|
|
|
|||
|
Model
|
GRX-ISY120-1F2T
|
|
|
|
|||
|
Port
|
10M/100M /1000MRJ45
|
|
2
|
|
|||
|
|
SC optical port
|
|
1
|
|
|||
|
Performance
|
Core control
|
|
RTL8367S-CG
|
|
|||
|
|
Store and forward
|
|
support
|
|
|||
|
|
Backplane bandwidth/MAC
|
|
5.6G / 16K
|
|
|||
|
Usage environment
|
Working temperature: -40℃～85℃
Storage temperature: -50℃～105℃
|
|
|
|
|||
|
|
Working humidity: 10% ~ 90% RH non-condensing
Storage humidity: 5% ~ 90% RH non-condensing
|
|
|
|
|||
|
Input power
|
DC input 12-36V
|
|
|
|
|||
|
Supported standards and protocols
|
IEEE 802.3
IEEE802.3u
IEEE802.3z
IEEE802.3ab
IEEE802.3x
IEEE802.3az
IEEE802.3Qad
IEEE802.3ah
IEEE802.1X
IEEE802.1Q
IEEE1588
|
|
|
|
|||
|
Default system mode
|
Fiber Transceiver
|
|
|
|
|||
|
Optional system modes
|
Includes Deadline Restart Mode (will automatically reset if no data is exchanged for 60 seconds)
|
|
|
|
|||
|
Switch characteristics
|
Delay time <7us
The bandwidth of the backplane is 5.6Gbps
The overall packet forwarding rate is 4.16Mb |
|
|
|
|||
|
Product characteristics
|
Cache up to 4Mb, video transmission without pressure, no packet loss, no delay.
|
|
|
|
|||
|
|
Supports 16K byte giant frame transmission and is
compatible with various extension protocols. 16K MAC address table. |
|
|
|
|||
|
|
Supports IEEE802.3az energy-efficient Ethernet technology.
|
|
|
|
|||
|
|
Support IPv6 protocol. Electrical port 4KV surge protection, easy to cope with outdoor environment use.
|
|
|
|
|||
|
Dimension
|
117mm*91mm*27mm（L*W*H）
|
|
|
|
|||
|
Weight
|
1.5kg
|
|
|
|
|||
