Quick Details
-
Weight:
-
8640kg
-
Warranty:
-
One Year
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Request
-
Working width (mm):
-
2.6m
-
Price:
-
low
-
Efficiency:
-
High
-
Quality:
-
Good
-
Productivity:
-
High
-
working rows:
-
5
-
Function:
-
Multifunction
-
Product name:
-
Maize Harvestor
-
Application:
-
Corn
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
sankay
-
Dimension(L*W*H):
-
9000x2900x3680mm
-
Weight:
-
8640kg
-
Warranty:
-
One Year
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Request
-
Working width (mm):
-
2.6m
-
Price:
-
low
-
Efficiency:
-
High
-
Quality:
-
Good
-
Productivity:
-
High
-
working rows:
-
5
-
Function:
-
Multifunction
-
Product name:
-
Maize Harvestor
-
Application:
-
Corn

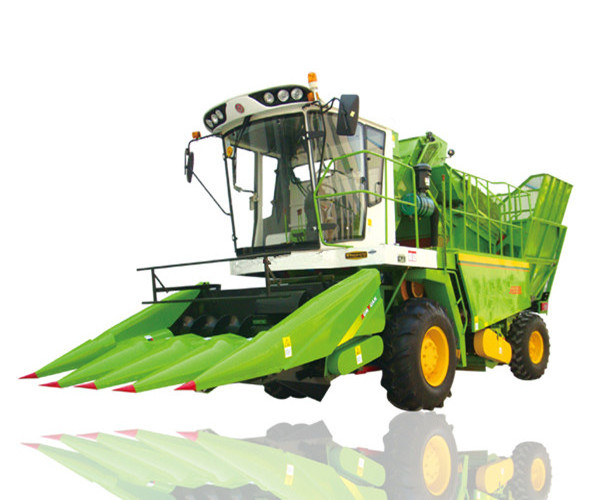

mini corn combine harvester/maize harvester/corn harvester 4YZ-5B Corn Harvester Machine
This harvester can complete the whole process of cob picking, transportation, peeling, packing, straw returning. It has advantages of small size, compact structure, flexible operation and high efficiency. Double power output and infinitely variable speeds system make the machine safe and reliable. It is one of the most popular models in the market.
| Main Advantages of Mini Sweet Corn Harvester Machine |
1) Supporting reel protect cover makes repair and maintenance convenient.
2) Hidden front ladder makes operation simple and getting on/off convenient.
3) Vibrating sieve and twice re-threshing and seperating makes corn cleaner
4) Clutch on straw disintegrator can protect the harvester from being damaged with sudden power failure.
5) Hydraulic control of real lifting and corn turning over
6) Infrared monitor system
7) Straw crusher set: can meet different needs according to users and be operated conveniently.
| Specification of Mini Sweet Corn Harvester Machine 4YZ-5B |
|
Model |
4YZ-5B |
|
Power(KW/HP) |
117/160 |
|
Dimension(L*W*H) |
9000*2900*3680 |
|
No. of harvesting rows |
5 |
|
Model of diesel motor |
YC6108ZT |
|
Fuel consumption (kg/h) |
≤25 |
|
Adapting row spacing/ best row spacing |
550-600/600-700 |
|
Working range (mm) |
2600 |
|
Total weight (kg) |
8640 |
|
Throughput |
10-18 |
|
Picking mode |
Combined type of pulling stem roller and picking board |
|
Shift gears mode and No. |
Step-less shift gears; 4 shifts and 1 reverse gear |
|
Tread (mm) of driving wheel ( former axle) |
1950 |
|
Tread (mm) of driving wheel (rear axle) |
1845-2145(changeable) |
|
Wheelbase(mm) |
3550 |
|
Min. turning radius (mm) |
6250 |
|
Max. unloading height(mm) |
2130 |
|
Min. picking height (mm) |
300 |
| Detailed Pictures of Mini Sweet Corn Harvester Machine |
| About Us |
Sankay is a professional agricultural machinery enterprise integrating research, development and production. Our products cover planters, harvesters & processing machinery for wheat, corn, rice, soybeans, potatoes and so on. Located in Zhengzhou, Henan province, our company has 300 staff, of which more than 70% are bachelors and masters. The factory takes an area of 80000 square meters, and the annual sales are more than thirty million dollars. At present, our products have been exported to Asia, Africa, America, Europe and are highly spoken by customers because of excellent products and perfect service.
| Warm Tips |
| Warm Tips |
In order to save cost and time for you,we need your provide below information:
1.Which kind of grain do you want to harvest? 2.FOB or CIF price?(If CIF price, please advise your destination port) 3.Quantity?(set) 4.How Many rows? (3, 4 or 5) 5.Catacity?(Ha/H) |
| Trade Terms |
Trade Terms: FOB, CIF, CFR,
EXW
Payment terms : T/T, L/C or by negotiation
Payment Condition: 30%T/T deposit in advance, 70% balance before delivery
Delivery Time: 10-15 working days after deposit
Packing: as required
Shipping: By sea, by air
