Quick Details
-
Brand Name:
-
LTMG
-
Fork Length:
-
1200mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
5050*2260*2490mm
-
Weight (KG):
-
7000 kg
-
Product name:
-

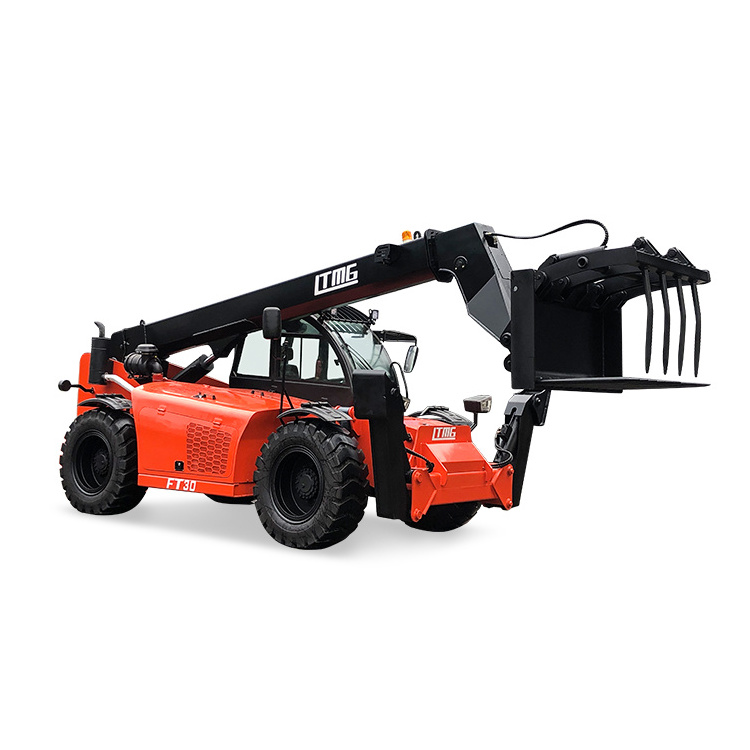

3 ton telescopic forklift for sale
-
Load capacity:
-
3000kg
-
Load Center:
-
500mm
-
Max.height:
-
7000mm
-
Max. Horizontal reach:
-
3350mm
-
Wheelbase:
-
2800mm
-
Tire Specs:Front:
-
16/70-24
-
Tire Specs:Rear:
-
10 -20-16
-
Marketing Type:
-
New Product 2023
Quick Details
-
Min. Lifting Height:
-
0mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Fork Length:
-
1200mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
5050*2260*2490mm
-
Weight (KG):
-
7000 kg
-
Product name:
-
3 ton telescopic forklift for sale
-
Load capacity:
-
3000kg
-
Load Center:
-
500mm
-
Max.height:
-
7000mm
-
Max. Horizontal reach:
-
3350mm
-
Wheelbase:
-
2800mm
-
Tire Specs:Front:
-
16/70-24
-
Tire Specs:Rear:
-
10 -20-16
-
Marketing Type:
-
New Product 2023
Products Specifications
|
Items
|
|
|
Unit
|
Deviation allowed
|
FT25
|
FT30
|
||
|
Basic parameter
|
Rated load
|
|
kg
|
-
|
2500
|
3000
|
||
|
|
Load center
|
|
mm
|
-
|
500
|
500
|
||
|
|
Load capacity @ max. Forward reach
|
|
kg
|
-
|
1000
|
1250
|
||
|
|
Basic boom max. Lifting height
|
|
mm
|
±1.5%
|
4850
|
4850
|
||
|
|
Max. Lifting height
|
|
mm
|
±1.5%
|
7000
|
7000
|
||
|
|
Max. Horizontal reach
|
|
mm
|
±1.5%
|
3350
|
3350
|
||
|
|
Min. Horizontal reach
|
|
mm
|
±1.5%
|
930
|
930
|
||
|
|
Min. Ground clearance
|
|
mm
|
±1.5%
|
400
|
400
|
||
|
|
Min. Turning radius ( outer tyre center）
|
|
mm
|
≤105%
|
6200
|
6200
|
||
|
|
Angle
|
Boom frame upward angle
|
°
|
±1.0
|
60
|
60
|
||
|
|
|
Boom frame downward angle
|
°
|
±1.0
|
-11
|
-11
|
||
|
|
Operating weight
|
|
kg
|
±5%
|
8200
|
8600
|
||
|
Overall dimension
|
Length (with fork)
|
|
mm
|
±2%
|
5730
|
5730
|
||
|
|
Width
|
|
mm
|
±2%
|
2390
|
2390
|
||
|
|
Height
|
|
mm
|
±2%
|
2485
|
2485
|
||
|
|
Wheel tread
|
|
mm
|
±1%
|
1870
|
1870
|
||
|
|
Wheel base
|
|
mm
|
±1%
|
2700
|
2700
|
||
|
Rated power / Rated turning speed
|
|
|
kW/rpm
|
-
|
60/2000
|
60/2000
|
||
|
Driving system
|
Max. Travelling speed (unloaded)
|
|
km/h
|
±10%
|
30
|
30
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
Gradeability
|
|
%
|
-
|
≥30%
|
≥30%
|
||
|
Tyre
|
Front （2 pcs）
|
|
-
|
-
|
16/70-24
|
16/70-24
|
||
|
|
Rear （2 pcs）
|
|
-
|
-
|
10 -20-16
|
10.00 -20-16
|
||
|
Engine
|
Dongfeng Cummins
|
|
-
|
National 2
|
4BTA3.9-C80II
|
4BTA3.9-C80II
|
||
|
|
|
|
-
|
National 3
|
QSB3.9-C80
|
QSB3.9-C80
|
||
About Us
Certifications
FAQ
1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 7 days to 90 days.
