Quick Details
-
CaO Content (%):
-
0
-
CrO Content (%):
-
0
-
SiC Content (%):
-
≥88%
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Customer's Requirement
-
Brand Name:
-
SUPEREAL
-
Product name:
-
Silicon carbide fish plate
-
Density:
-
2.7-2.75 g/cm3
-
Color:
-
Black
-
Open Porosity:
-
<14
-
working temperature:
-
1400℃
-
Application:
-
kiln furniture
-
Bending Strength 20℃:
-
45 MPa
-
Bending Strength 1200℃:
-
55 MPa
Quick Details
-
SiO2 Content (%):
-
5%
-
Al2O3 Content (%):
-
1.5%
-
MgO Content (%):
-
0
-
CaO Content (%):
-
0
-
CrO Content (%):
-
0
-
SiC Content (%):
-
≥88%
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Customer's Requirement
-
Brand Name:
-
SUPEREAL
-
Product name:
-
Silicon carbide fish plate
-
Density:
-
2.7-2.75 g/cm3
-
Color:
-
Black
-
Open Porosity:
-
<14
-
working temperature:
-
1400℃
-
Application:
-
kiln furniture
-
Bending Strength 20℃:
-
45 MPa
-
Bending Strength 1200℃:
-
55 MPa

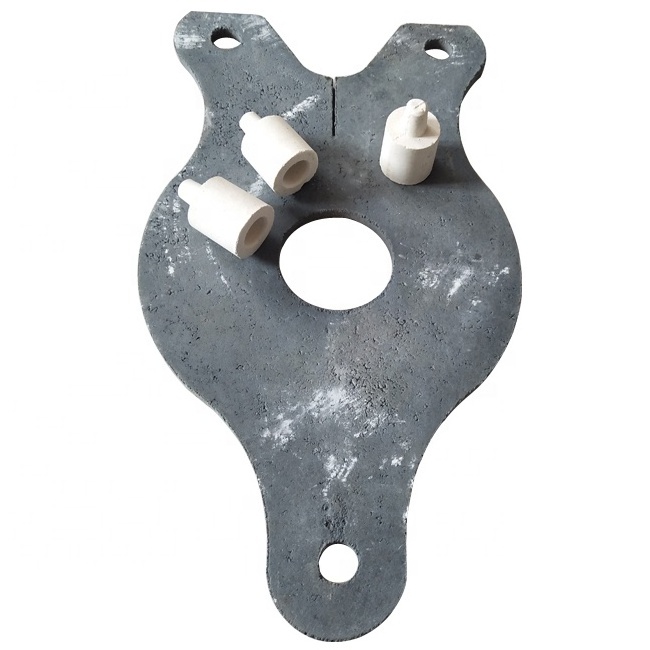

Sic silicon carbide fish plate as support kiln shelves of kiln trolley with mullite pillars and supports
Sic silicon carbide fish plate as support kiln shelves of kiln trolley with mullite pillars and supports offers many benefits of using SiC but at a reduced cost .
Taking silicon carbide as the main material and adding expansion agent and anti oxidant,oxide bonded silicon carbide SIC shelves used for Sanitary ware kiln have very high load softening temperature and excellent anti oxidative effect through vibration supported uniaxial press compaction and high temperature firing. It was originally used as an alternative to conventional bonded SiC materials, but it shows the long term stability comparable to RSiC and NSiC with lower cost.
1. Technical parameters of Sic silicon carbide fish plate as support kiln shelves of kiln trolley with mullite pillars and supports
| Plate Size(Inch) | A(mm) | B(mm) | C(mm) | D(mm) |
| 6 | 165 | 285 | 240 | Φ18 |
| 6 | 170 | 288 | 238 | Φ18 |
| 8 | 187 | 363 | 313 | Φ18 |
| 8 | 195 | 350 | 295 | Φ18 |
| 8.5 | 200 | 370 | 320 | Φ18 |
| 9.5 | 220 | 390 | 335 | Φ18 |
| 10 | 218 | 406 | 350 | Φ18 |
| 10 | 230 | 405 | 350 | Φ18 |
| 10.5 | 230 | 410 | 355 | Φ18 |
| 11 | 230 | 410 | 360 | Φ18 |
| 12 | 230 | 430 | 400 | Φ18 |
| 12.5 | 230 | 450 | 395 | Φ18 |
| 15 | 300 | 460 | 470 | Φ18 |
| ITEM | UNIT | DATA |
| Temperature | ℃ | 1400 |
| Density | g/cm³ | 2.7-2.75 |
| Open Porosity | % | <14 |
| Moh's Scale of Hardness | 13 | |
| Bending Strength | MPa | 45 (20℃) |
| MPa | 55 (1300℃) | |
| Modulus of Elasticity | GPa | 330 (20℃) |
| GPa | 300 (1200℃) | |
| Thermal Conductivity | W/m.k | 14 (1200℃) |
| Coefficient of thermal expansion | k -1 ×10 -6 | 4.8 |
| Acid Alkaline -proof | Excellent |
2.Sic silicon carbide fish plate as support kiln shelves of kiln trolley with mullite pillars and supports Property:
Good thermal shock resistance
Good resistance against corrosion and oxdiation
Good mechanical strength at high temperature
Excellent thermal and electric conductivity
Long service life and energy saving
Environmental friendly
Other recommendations :
Reaction Bonded SiC (SiSiC)
Recrystallizde SiC (RSiC)
Nitride Bonded SiC (NSiC)
3. Sic silicon carbide fish plate as support kiln shelves of kiln trolley with mullite pillars and supports
B atts, setter plate, pusher plate, setter slab, sagger,muffle board , support shelves and other special shaped products
Remark: sizes and shape are available upon requests.
Some OSiC Oxide bonded silicon carbide parts is shown as follows:
4. Sic silicon carbide fish plate as support kiln shelves of kiln trolley with mullite pillars and supports Application:
Oxide bonded silicon carbide SIC shelves used for Sanitary ware kiln can be made into OSiC plate, OSiC support, OSiC disc and other special shaped products, which are mostly used as kiln furniture like batts, setter plate, pusher plate, setter slab, sagger,muffle board and support shelves in firing tableware, sanitary ceramics, electrical ceramics, emery wheel and so on.
5.Sic silicon carbide fish plate as support kiln shelves of kiln trolley with mullite pillars and supports Packing
