If thier any dies you prefer, just share with us is ok.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1.70*1.10*1.20m
-
Weight (KG):
-
1300
-
Name:
-
Pneumatic Forging Hammer
-
Application:
-
Power Hammer Blacksmith
-
Usage:
-
Pneumatic Open Die Forging Hammer
-
Advantage:
-
High Efficiency Metal Forging Equipment
-
COLOR:
-
Blue
-
Widely used:
-
Auto Mobile Parts Forging Press
-
Forging station:
-
1~`6 Stations
-
Precision:
-
0.02 Mm
-
Weight of falling parts:
-
16/25/40/75 Kg
-
Specification:
-
C41-20KG
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
fantai
-
Machine Type:
-
Forging Hammer
-
Voltage:
-
380V
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1.70*1.10*1.20m
-
Weight (KG):
-
1300
-
Name:
-
Pneumatic Forging Hammer
-
Application:
-
Power Hammer Blacksmith
-
Usage:
-
Pneumatic Open Die Forging Hammer
-
Advantage:
-
High Efficiency Metal Forging Equipment
-
COLOR:
-
Blue
-
Widely used:
-
Auto Mobile Parts Forging Press
-
Forging station:
-
1~`6 Stations
-
Precision:
-
0.02 Mm
-
Weight of falling parts:
-
16/25/40/75 Kg
-
Specification:
-
C41-20KG
Product Description
C41 25kg/40kg/65kg/75kg Pneumatic Hammer Power Hammer Forging Hammer
Blacksmith forging hammer introduction: It is a kind of free forging equipment. The air is compressed by the compressor cylinder and sent to the working cylinder through the distribution valve to drive the piston and the hammer head to move up and down for hammering. The operation is flexible. This model is suitable for various free forging, such as extension, upsetting, punching, shearing, forging welding, torsion, bending, etc. It can be used for various open die forging.
Blacksmith forging hammer introduction: It is a kind of free forging equipment. The air is compressed by the compressor cylinder and sent to the working cylinder through the distribution valve to drive the piston and the hammer head to move up and down for hammering. The operation is flexible. This model is suitable for various free forging, such as extension, upsetting, punching, shearing, forging welding, torsion, bending, etc. It can be used for various open die forging.
The characteristics are as follows:
1. Driven by compressed air, the striking force and frequency can be controlled by adjusting the air pressure to meet the needs of safety production
1. Driven by compressed air, the striking force and frequency can be controlled by adjusting the air pressure to meet the needs of safety production
2. The machine body is made of cast iron, and the large tonnage air hammer anvil is made of cast steel
3. The mechanism is simple and not easy to be damaged
Specification
|
Model
|
C41-20
|
C41-25
|
C41-40
|
C41-55
|
C41-75
|
|
Max hit energy(KJ)
|
0.22
|
0.27
|
0.52
|
0.7
|
1
|
|
Height of working area(mm)
|
200
|
240
|
245
|
266
|
300
|
|
hit number(min)
|
270
|
250
|
245
|
230
|
210
|
|
dimension of top and bottom die
|
90*50
|
100*50
|
120*50
|
120*55
|
145*65
|
|
max round steel can be
|
35
|
45
|
68
|
68
|
85
|
|
max square steel can be
|
30*30
|
40*40
|
55*55
|
52*52
|
65*65
|
|
rate power(kw)
|
2.2
|
3/2.2
|
4.5
|
5.5
|
7.5
|
|
speed of motor(r.p.m)
|
1440
|
1440
|
1440
|
1400
|
1400
|
DETAILS IMAGES

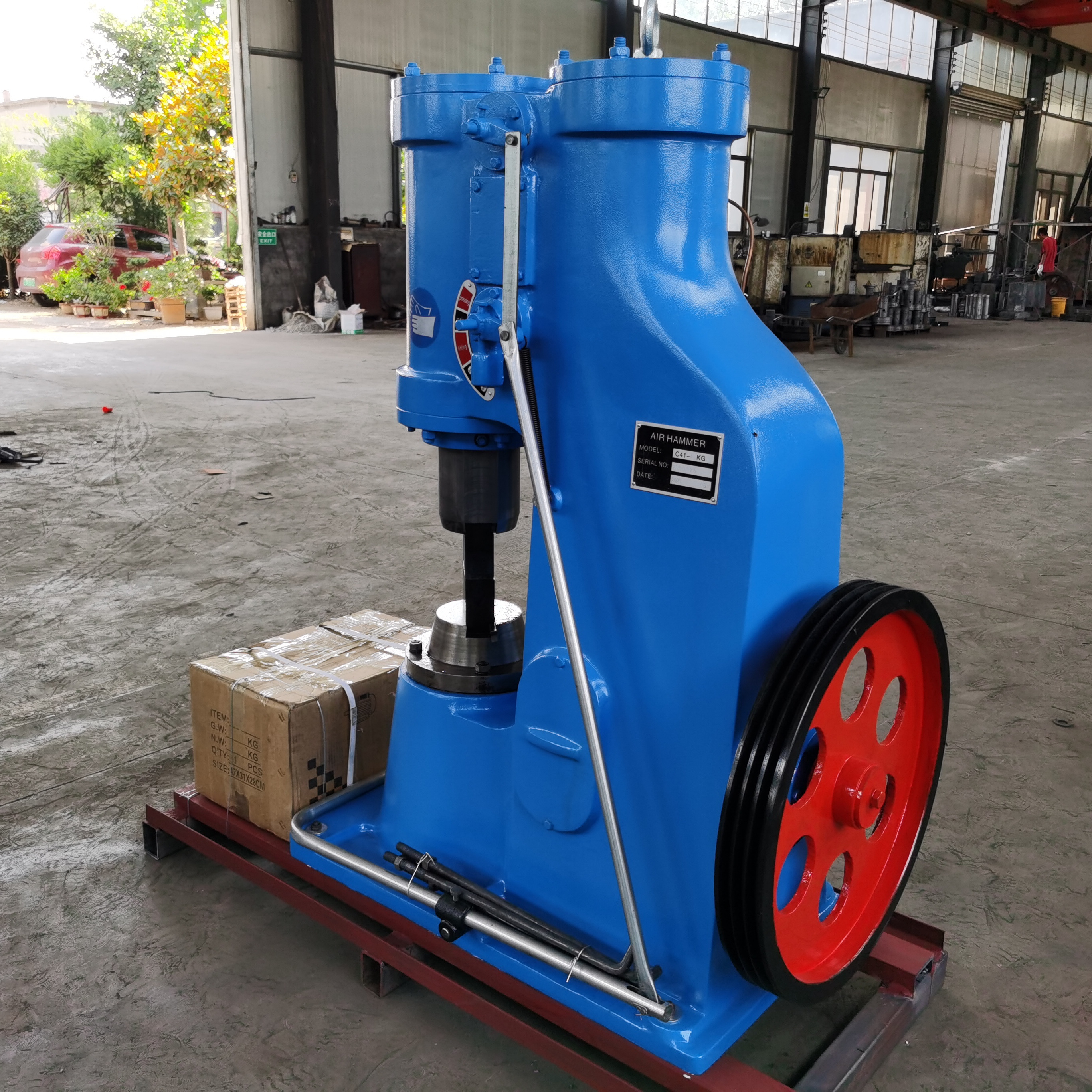

Whole of Forging Hammer
The internal hammer grindin
g cylinder is used in the airhammer compression cylinder and the working cylinderto ensure that the internal clearance of the cylinderbody is finely matched and the working stability isstrong.
Oiler of Forging Hammer
Rod of Forging Hammer
Motor of Forging Hammer
Customer Feedback
Packing & Delivery
Pneumatic Hammer Power Hammer Forging Hammer
usually shipping by wooden case ,which make sure delivery safty.
Here is one we shipping to USA.
