Quick Details
-
Brand Name:
-
Junda
-
Model Number:
-
Cast steel ball
-
Product name:
-
Cast steel ball
-
Application:
-
Power stations Chemical industries Grinding mill Ball mill Coal mill
-
Size:
-
10MM TO 130MM
-
Type:
-
High/Middle/Low/chrome cast gri nding balls
-
MOQ:
-
1 Ton
-
Feature:
-
High Hardness, High impact value;
-
OEM:
-
Customized Diameters
-
Certifications:
-
ISO9000
-
Package:
-
Drum:60*90cm
-
Shape:
-
Round Shape
Quick Details
-
Applicable Industries:
-
Building Material Shops, Energy & Mining, power station
-
Material:
-
Grinding ball
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Junda
-
Model Number:
-
Cast steel ball
-
Product name:
-
Cast steel ball
-
Application:
-
Power stations Chemical industries Grinding mill Ball mill Coal mill
-
Size:
-
10MM TO 130MM
-
Type:
-
High/Middle/Low/chrome cast gri nding balls
-
MOQ:
-
1 Ton
-
Feature:
-
High Hardness, High impact value;
-
OEM:
-
Customized Diameters
-
Certifications:
-
ISO9000
-
Package:
-
Drum:60*90cm
-
Shape:
-
Round Shape
|
Nominal diameter （mm）
|
Weight of single ball in average(g)
|
Quantity/ MT /ton
|
Surface hardness(HRC)
|
Endurance impact test(Times)
|
|
φ15
|
13.8
|
72549
|
>60
|
>10000
|
|
φ17
|
20.1
|
49838
|
|
>10000
|
|
φ20
|
32.7
|
30607
|
|
>10000
|
|
φ25
|
64
|
15671
|
|
>10000
|
|
φ30
|
110
|
9069
|
|
>10000
|
|
φ40
|
261
|
3826
|
|
>10000
|
|
φ 50
|
510
|
1959
|
|
>10000
|
|
φ60
|
882
|
1134
|
|
>10000
|
|
φ70
|
1401
|
714
|
|
>10000
|
|
φ80
|
2091
|
478
|
>58
|
>10000
|
|
φ90
|
2977
|
336
|
|
>10000
|
|
φ100
|
4084
|
245
|
|
>8000
|
|
φ120
|
7057
|
142
|
|
>8000
|
|
φ130
|
8740
|
115
|
|
>8000
|

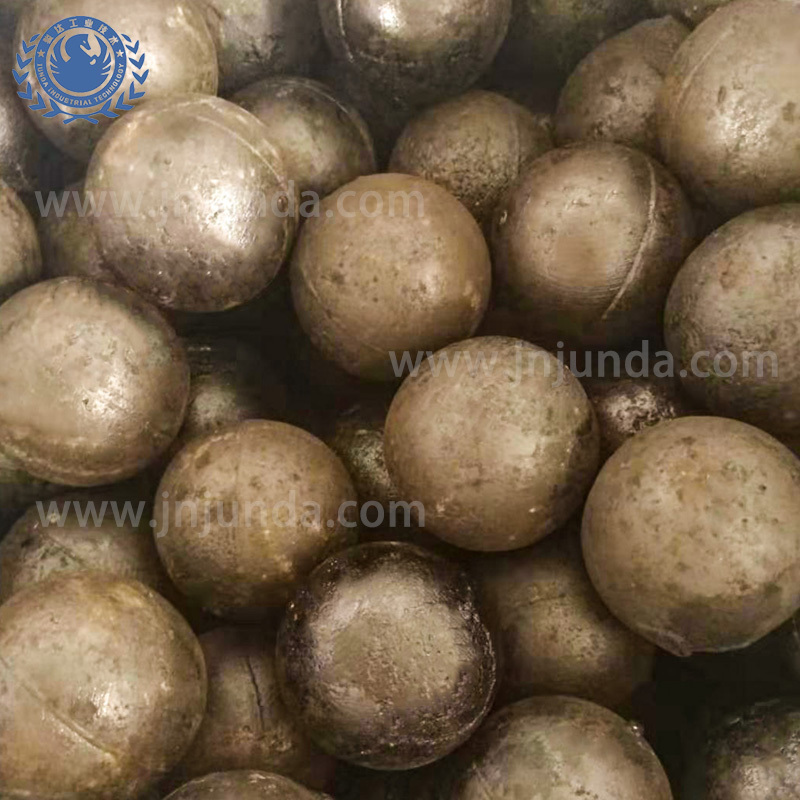

Casting steel balls can be divided into different types ranging from 10mm to 130mm. The size of the casting can be within the range of low, high, and medium steel balls. The steel ball parts include flexible designs, and you can obtain the steel ball according to the size you want.
The main advantages of using cast steel balls are low cost, high efficiency, and wide application range, especially in the dry grinding field of the cement industry.
High chromium cast steel balls, medium chromium cast steel balls and low chromium cast steel balls
Chrome cast steel balls are the cast grinding media balls containing a certain percentage of chromium, and by which are divided into high chromium cast steel balls, medium chromium cast steel balls and low chromium cast steel balls. The chromium cast steel balls are divided into High Chromium Cast Steel Balls, Medium Chromium Cast Steel Balls and Low Chromium Cast Steel Balls. With the feature of high hardness, low wear, and low breakage, cast steel grinding balls are mainly used in cement industry, mining industry, metallurgical industry, power generation industry and construction industry.
Cast Grinding Steel Ball Features
1、The raw materials are all bearing steel scraps, which contain copper, molybdenum, nickel and other precious metal elements, which can effectively improve the matrix structure of the steel ball.
2、Our products are produced by medium frequency electric furnace which can effectively ensures the stability of the material. Balls are not easy to peel off and deform during use. Even it can keep bright and round after long time running.
3、The most advanced large-scale automatic oil quenching production line is adopted for heat treatment, which ensures the good hardness and uniformity of the products.
A casting ball, also called a casting grinding ball, is made from scrap steel, scrap metal, and other trashed materials. The above mentioned materials are highly molten and conduct a continuous current after being heated. During the smelting stage, a large amount of metal elements such as vanadium, iron and manganese are first added to the flue gas to achieve the desired and predetermined yield. These elements can then pour the super-molten iron into a production line model of a steelmaking plant.
Q. What is the mode of your payment?
T/T: 50% advance payment and the rest 50% payment oay us when you get the scanned B/L from our E-mail. L/C:100% irrevocable L/C at sight.
Q. What's the MOQ of your product?
As usual MOQ is 1TONS.Or as your require, we need to calculate the new price to you.
Q. What atandars you carring out for your products?
SAE standard and ISO9001, SGS.
Q.What’s the delivery time?
A : 5-10 work days after receiving client’s payment
Q.Do you have any timely technology supports?
A: We have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (whats, skype, phone).
T/T: 50% advance payment and the rest 50% payment oay us when you get the scanned B/L from our E-mail. L/C:100% irrevocable L/C at sight.
Q. What's the MOQ of your product?
As usual MOQ is 1TONS.Or as your require, we need to calculate the new price to you.
Q. What atandars you carring out for your products?
SAE standard and ISO9001, SGS.
Q.What’s the delivery time?
A : 5-10 work days after receiving client’s payment
Q.Do you have any timely technology supports?
A: We have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (whats, skype, phone).
