Waterproof Bore Explorer Underwater Pipe Inspection Camera With Meter Counter

Waterproof Bore Explorer Underwater Pipe Inspection Camera With Meter Counter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: LIANGFEI

Model Number:: FLC-8M

Control Box:: 7" 10" 12" for choice

Max. inspection depth:: 800m

camera type:: PTZ, dual or panorama camera

Depth counter:: accurate to 0.0005m

Camera diameter:: 30mm, 40mm, 50mm, 75mm, 90mm

Logging Cable:: 6-core Bearing

Centralizer:: Yes

12v:: optional

Tool box:: yes

Quick Details

Special Features:: One-way Audio, PAN-TILT, Temperature Measurement, Two-way Audio, Vandal-proof, Waterproof / Weatherproof

Function:: NIGHT VISION, One-way Audio, PAN-TILT, RESET, Two-way Audio, Vandal-proof, Waterproof / Weatherproof, Wide Angle

Customized support:: Customized logo, OEM, ODM, Online technical support, Software reengineering

Place of Origin:: Henan, China

Brand Name:: LIANGFEI

Model Number:: FLC-8M

Control Box:: 7" 10" 12" for choice

Max. inspection depth:: 800m

camera type:: PTZ, dual or panorama camera

Depth counter:: accurate to 0.0005m

Camera diameter:: 30mm, 40mm, 50mm, 75mm, 90mm

Logging Cable:: 6-core Bearing

Centralizer:: Yes

12v:: optional

Tool box:: yes

Product Description

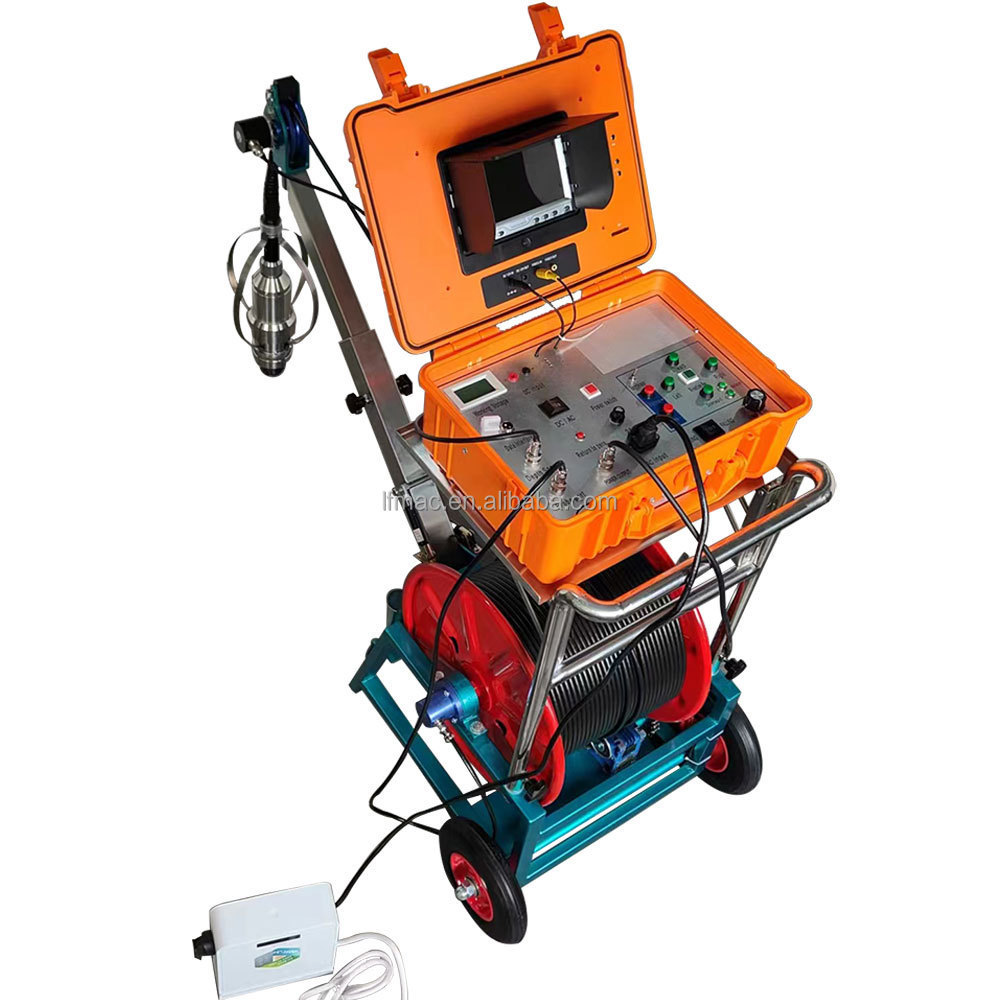

FLC-8M video recording water well video camera deep well inspection camera

Feature

1. 0-800m inspection depth, pressure bear 20MPA, max. to 2000m.
2. Dual rotary, single rotary and panoramic camera for choice.
3. LED adjustable, zooming adjustable .
4. 7", 10" LED HD monitor
5. Electric and Manual integrated winch .
6. With video recording , meter counting functions.

Specification

Control Box	ABS engineering plastic control box, 220V (12V is optional) input
Winch	Electric and manual combined winch, detachable
Monitor	7 inch (optional 12 inch) LED high brightness monitor
Control and Video Recording System	Ultra HD SD recorder. The control panel controls the direction and angle of the downhole camera and the adjustment of the brightness and focal length of the camera light source; the control box manually controls the lifting and speed of the cable and the probe.
Single Rotary Probe	Φ90mm, φ75mm, φ40mm is optional. The camera rotates 360 degrees clockwise and infinitely counterclockwise, tilting 180 degrees flip. Brightness focal length is adjustable. Manually control the direction and angle of the downhole camera, the brightness of the light source and focal length for clear video images, 5-level dimming. φ40cm and φ75mm probe are with front 6/8 highlight patch beads, φ90mm probe is with front 12 highlight patch beads, rear 16 LED strong light bulb bezel focal
Dual Rotary Probe	Φ75mm, φ50mm, φ41mm is optional. Front rear camera, rear side wall camera 360 degree clockwise rotation and counterclockwise infinite rotation. Brightness of the light source can be adjusted for both front and rear lights, five-level dimming. φ75mm side wall camera can adjust the focus.
Depth Counter	Accurate to 0.005m
Logging Cable	6-core Bearing, 800m
Centralizer	High Elasticity Stainless Steel
12V Input(Optional)	Battery power supply function (available within 600 meters)
Tool Box	Camera probe and connecting cable and accessories

Detail Description

1. Main Control System

* ABS engineering plastic main control box control system * Voltage input: 220V(12V is optional) * Depth interface: connect depth sensor * Probe interface: connect probe, transmit video and power * Data interface: you can write the well number by yourself, you can calibrate the depth yourself. * Recording system: Ultra HD SD card recorder, 16G SD card recording system, maximum support 32G * Depth to zero: Zero the depth before logging for accurate counting * Display: 7” high-brightness LED monitor with sun shield, outdoor view * The control panel controls the direction and angle of the downhole camera and the adjustment of the brightness and focal length of the camera light source; the control box manually controls the lifting and speed of the cable and probe. *12V power input is optional. Battery power supply function (available within 600 meters)

2. Electric and Manual Combined Detachable Winch

* Manual and Automatic Electric Combined Winch: 220V or 12V Battery Power.(0-600m can use battery function.) * Manually control lifting up and down and speed on control box. * Main control tray: Stainless steel tray, detachable, easy to transport. * Depth Counting Downhole Pulley: downhole pulley with depth counting function, need to connect the data cable to the main control box * Pulley Support Rod: retractable pulley support rod, detachable, it has a hydraulic bar at the connection part with the winch, to prevent rod shaking when logging. * Depth Counting Function: depth accurate to 0.005 meters, If there is mistake, you can adjust it. * Depth Zero: return depth to zero before logging to ensure accuracy. * Motor: permanent magnet DC motor, self-locking

Winch with automatic wiring system(optional)

3. Single Rotary Probe(different diameter for choice)

* Camera size: Φ90mm/φ75mm/φ42cm, length: 30cm-34cm * Camera material: stainless steel casing * Camera window: explosion-proof optical acrylic glass or explosion-proof glass window * Camera pixel: CCD camera, 700TVL HD low illumination * Lens angle: 360° circumference, counterclockwise rotation infinitely, 180° tilting, dimming and focusing * Camera light: φ90mm camera probe, 12 front bright bead, rear 16 LED strong light bead *φ42cm and φ75mm camera probe: front 6 / 8 bright LED strong light source beads * Brightness focal length adjustment: manually controls the direction and angle of the downhole camera, the brightness of the light source and focas adjustment for clear video image, 5 levels of dimming * Probe withstand voltage: pressure 20MPA, maximum pressure depth up to 2000 meters

4. Dual camera rotation probe (different diameter for choice)

41mm, 50mm, 75mm dual probe * Camera material: hard oxidized aluminum alloy casing * Camera window: explosion-proof optical glass window * Camera pixel: CCD camera, 720TVL HD low illumination * Lens Angle: side camera circumference 360° infinite rotate. * Light: Front 8 or 9 highlight patches lamp beads, rear 8 or 24 LED strong light source bead. * Brightness Adjustment: control box button can adjust brightness, 5 level dimming. * Focal Length: 75mm probe facus is adjustable. * Compression Resistance: 20MPA, max. pressure depth to 2000m.

5. Centralizer

* Stainless steel centralizer spring piece * Aluminum hard oxidation centralizer snap ring

6. Probe connection

Designed and manufactured according to petroleum logging technology equipment, with positioning pin, axial seal, can bear high pressure and high temperature

7. Tool Box

One probe, one bottle of silicone oil, one set of connecting wires, one set of centralizer, and some other accessories.

8. Tube hole video imaging test report software (optional )

Completely interpret the problem in the hole and issue a report. It is mainly used for playback preview of the tube hole detection video, screenshot interpretation, and editing of the diameter reduction segmentation information of the tube hole, automatically generating the tube hole profile view (integrated column chart), and automatically outputting the detection report.

FLC-3M Borehole Camera-Max. 300m

1. Dual camera, 360° rotary camera, panoramic camera for choice.
2. 7" LED monitor, with video recording, SD card storage.
3. With meter counter, depth showing on monitor.
4. Pulley wheel, easy to move.
5. Powerful manual winch

FLC-8M Borehole Camera-Max. 800m

1. 0-800m inspection depth, pressure bear 20MPA, max. to 2000m. 2. Dual rotary, single rotary and panoramic camera for choice. 3. LED adjustable, zooming adjustable. 4. 7", 10" LED HD monitor, touch screen and laptop for choice. 5. Electric and Manual integrated winch. 6. With video recording, meter counting functions.

FLC-20M Borehole Camera-Max. 2000m

1. Max. 2000M inspection depth, pressure bear 20MPA. 2. Dual rotary, single rotary and panoramic camera, different diameter. 3. LED light and zooming adjustable. 4. 7", 12" LED HD monitor 5. Electric and Manual integrated winch. 6. With video recording, meter counting functions, on screen depth showing.

Packing and Delivery

On-site Working

CE Certification
