- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Number of Cells:
-
84
-
Cell size:
-
158.75mm*26.5mm
-
Cell:
-
Monocrystalline Silicon
-
Folding Method:
-
2 Folds
-
Unfolded Dimension::
-
940*520*5mm
-
Application:
-
Commercial / Boat / Car / Camping
-
OEM:
-
Acceptable OEM Service
-
Module Weight:
-
1.7kg
-
Panel Dimensions:
-
420*520*22mm
Quick Details
-
Color:
-
blue, Black / Camouflage / Customized
-
Brand Name:
-
Intenergy
-
Model Number:
-
INE-100W-2F, INE-60M-84
-
Place of Origin:
-
Jiangsu, China
-
Number of Cells:
-
84
-
Cell size:
-
158.75mm*26.5mm
-
Cell:
-
Monocrystalline Silicon
-
Folding Method:
-
2 Folds
-
Unfolded Dimension::
-
940*520*5mm
-
Application:
-
Commercial / Boat / Car / Camping
-
OEM:
-
Acceptable OEM Service
-
Module Weight:
-
1.7kg
-
Panel Dimensions:
-
420*520*22mm
|

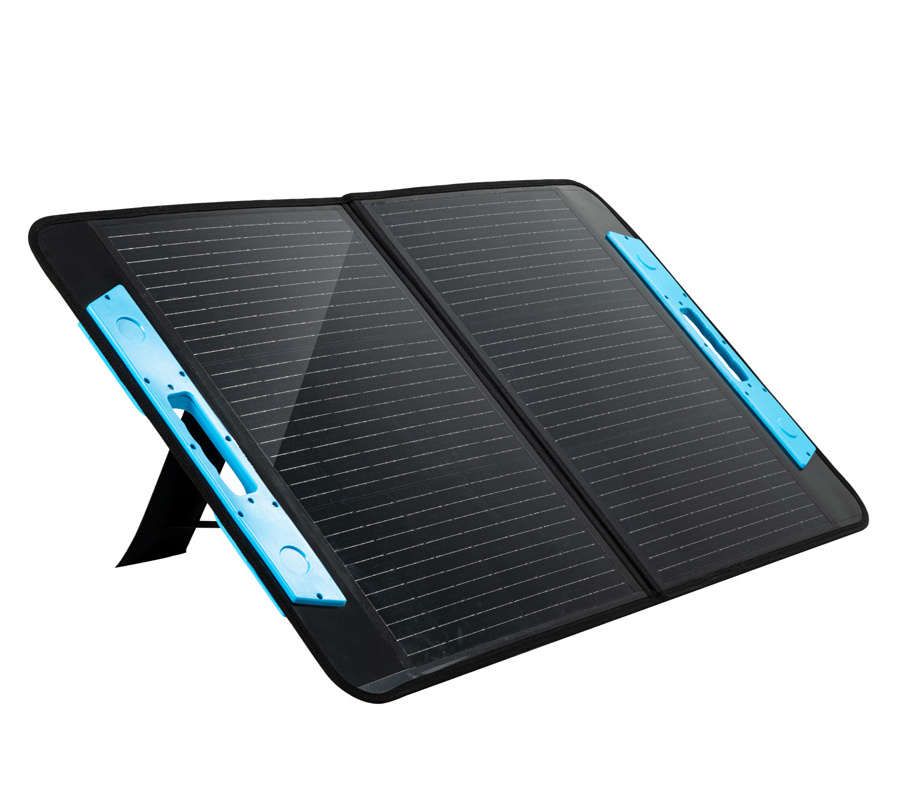

Intenergy Foldable Solar Panel Parameters
|
|
|
|
|
|
|
|
|||||||
|
Module Type
|
|
INE-60M-2F
|
INE-100M-2F
|
INE-120M-4F
|
INE-160M-4F
|
INE-200M-4F
|
INE-300M-6F
|
|||||||
|
Power Output
|
Pmax（W）
|
60
|
100
|
120
|
120
|
200
|
300
|
|||||||
|
Operating Voltage
|
Vmp（V）
|
20.36
|
23.82
|
20.36
|
20.44
|
20.44
|
23.82
|
|||||||
|
operating Current
|
Imp（A）
|
2.95
|
4.2
|
5.9
|
7.83
|
7.83
|
12.6
|
|||||||
|
Open-Circuit Voltage
|
Voc（V）
|
24.47
|
28.64
|
24.47
|
24.55
|
24.55
|
28.64
|
|||||||
|
Short-Circuit Current
|
Isc（A）
|
3.12
|
4.45
|
6.23
|
8.31
|
8.31
|
13.36
|
|||||||
|
Folded Size(mm)
|
|
490*480*50
|
570*590*50
|
490*480*50
|
510*590*50
|
570*590*50
|
520*590*50
|
|||||||
|
Unfolded Size(mm)
|
|
970*480*30
|
1150*590*30
|
1740*480*30
|
1920*590*30
|
2150*590*30
|
3160*590*30
|
|||||||
|
Net Weight（KG)
|
ETFE
|
3.26
|
4.62
|
5.92
|
7.05
|
7.78
|
10.37
|
|||||||
|
|
GLASS
|
3.65
|
4.97
|
6.68
|
7.81
|
8.46
|
11.32
|
|||||||
|
Fold
|
|
2Folded
|
|
4Folded
|
|
|
6Folded
|
|||||||
|
Cell Efficiency
|
|
≥22%
|
|
|
|
|
|
|||||||
|
Cell (Material / Dimensions)
|
|
Monocrystalline silicon / 182×91mm
|
|
|
|
|
|
|||||||
|
Bracket
|
|
Yes
|
|
|
|
|
|
|||||||
|
Packing
|
|
Single Package
|
|
|
|
|
|
|||||||
|
Operating Temperature
|
|
-40℃ to 80℃
|
|
|
|
|
|
|||||||
|
Accessories
|
|
(1)Standard:Junction Box,DC 5525/5521 (2)Other Accessories can be customized
|
|
|
|
|
|
|||||||
COMPANY INTRODUCTION
Intenergy was established in 2012, Which engaged in the design, research, devel-opment and marketing of high-efficiency solar modules, on-grid,off-grid and hybridsolar power systems, foldable solar panel, intelligent hardware, solar lamps and inte-grated circuits.The products are sold to more than 100 countries and regions aroundthe world, including China, the European Union, Mexico, Brazil, Australia, etc.Intener-gy strives to provide every customer with the most valuable products and services, andhas passed the testing and certification of the world's major authoritative testing insti-tutions, including TUV, CSA, IEC, CEC, MCS, JET, CE, etc.
Intenergy focuses on green smart mobile storage energy industry, combines theInternet of Things, software and power electronic equipment and solutions,big data,new generation communication, cloud computing and other technologies, actively ex-plores new models and new categories of new energy industry, and realizes the com-pany's vigorous and innovative development.
