Quick Details
-
Material:
-
Cold rolled steel plate, Cold rolled steel
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HVPAL
-
Model Number:
-
HA7613
-
Usage:
-
ATM,Large tray,Heavy storage drawer
-
Surface treatment:
-
Blue white zinc
-
Length:
-
10"-60" (254mm-1524mm)
-
Height:
-
76 mm
-
Thickness:
-
19.1±0.3mm
-
Load Capacity:
-
500lbs (227kg)/18"
-
Feature:
-
3 Fold+Full Extension+drawer slide
-
Close-open test:
-
100000 times
Quick Details
-
Application:
-
Warehouse, Workshop, Other, Storage & Closet
-
Design Style:
-
Industrial
-
Type:
-
Industry Hardware, Drawer Slide (Heavy Duty)
-
Material:
-
Cold rolled steel plate, Cold rolled steel
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HVPAL
-
Model Number:
-
HA7613
-
Usage:
-
ATM,Large tray,Heavy storage drawer
-
Surface treatment:
-
Blue white zinc
-
Length:
-
10"-60" (254mm-1524mm)
-
Height:
-
76 mm
-
Thickness:
-
19.1±0.3mm
-
Load Capacity:
-
500lbs (227kg)/18"
-
Feature:
-
3 Fold+Full Extension+drawer slide
-
Close-open test:
-
100000 times
1. Size: 12''-60''( 304.8-1524mm)
2.Load rating: 227KG/18''
3. Certification: ISO9001, SGS
4. Finish: Clear zinc plated, electrphoresis
|
Product Name
|

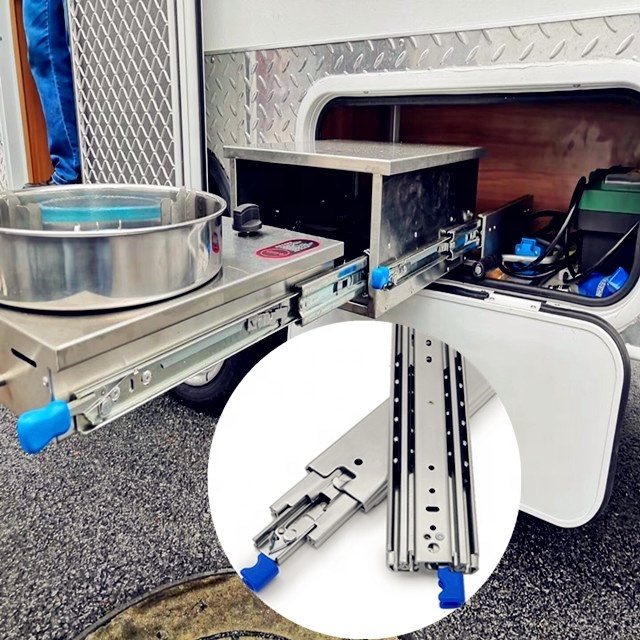

(HA7613) 900mm 3 Fold Full Extension Ball Bearing Drawer Slide For Camping Truck
|
|
Material
|
Hardened cold rolled steel
|
|
Surface
|
Clear znic electroplate
|
|
Brade
|
HVPAL
|
|
Used
|
Heavy duty storage drawers, truck bodies, and large pantry pull-outs etc.
|
Shanghai Hvpal Hardware Products Co.,Ltd specializes in Hardware accessories such as slides, hinges, locks, etc. Especially focus on Heavy Duty Slide series.
Our products are widely used in ATM, Autocar, Furniture, Large tray, Fire truck, Electrical appliances, Kitchen cabinets, Heavy Duty storage drawer, Tool cabinets, Medical equipments and so on. Slide series,51mm,53mm,76mm with load capacity from 45kg to 227kg+.
Our factory covers 5000+ square meters with professional production lines and machines. All of our products are approved by ISO9001:2000 and Inspected by SGS.
Annual exporting rate is 80%-90%.
We offer OEM+ODM service for non-standard parts. Any info., pls visit www.hvpal.com.
Packing Details :
1. Inner packing: PE Bag
2. Outer packing: Carton (4 sets/Ctn)3. Package can be customized as client requirements.
Delivery Details :Within 2 weeeks after the contract confirmed.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
