Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Desun
-
Model Number:
-
W0542YD-12/24-60
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
60w
-
Outlet Size:
-
1/2" thread
-
Power:
-
60W
-
Product name:
-
Electric booster pump
-
suction lift:
-
1.5M
-
Fuel:
-
DC electric source,Battery.
-
Noise:
-
Low noise
-
Certification:
-
RoHS,ce
-
Color:
-
Black
-
OEM:
-
OEM Services Provided
-
Pump:
-
Diaphragm Pumps
Quick Details
-
Application:
-
Family Homes, Industrial Utilities, Irrigation and Agriculture, Machining, Washing and Cleaning, Water Distribution, Water Treatment Solutions, Other
-
Pressure:
-
High Pressure
-
Voltage:
-
12V
-
Warranty:
-
1 year
-
Brand Name:
-
Desun
-
Model Number:
-
W0542YD-12/24-60
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
60w
-
Outlet Size:
-
1/2" thread
-
Power:
-
60W
-
Product name:
-
Electric booster pump
-
suction lift:
-
1.5M
-
Fuel:
-
DC electric source,Battery.
-
Noise:
-
Low noise
-
Certification:
-
RoHS,ce
-
Color:
-
Black
-
OEM:
-
OEM Services Provided
-
Pump:
-
Diaphragm Pumps
DESUN2195 Inspection Fast Delivery Water Circulation Pump Smart Silent Domestic Tap Water Booster Pump Factory From China
Products Description
W0542YD-12-60

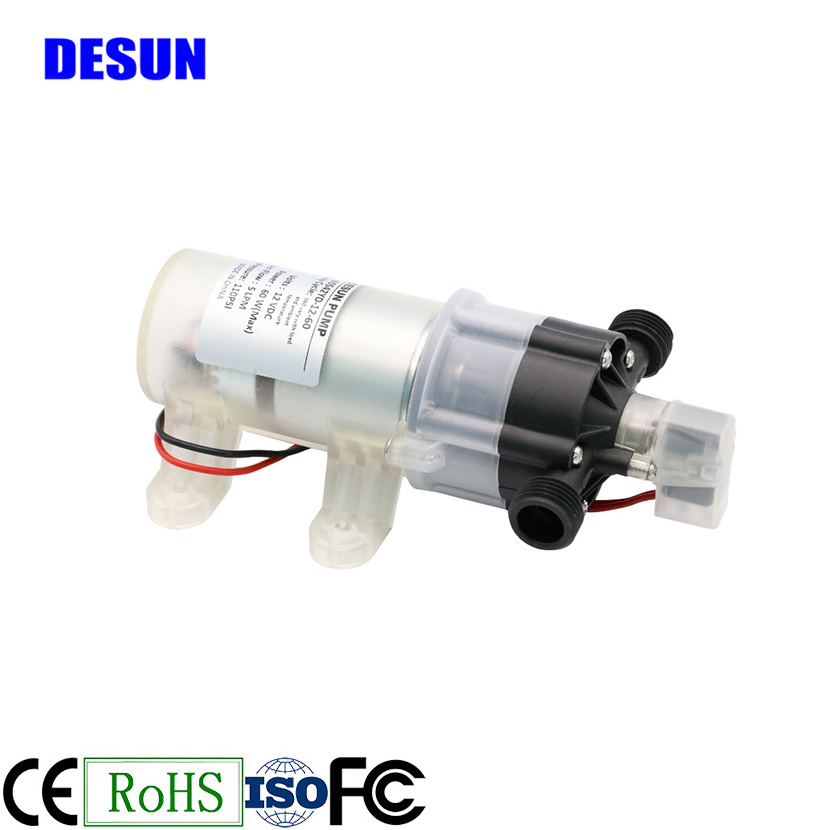

DIAPHRAGM SELF-PRIMING WATER BOOSTER PUMP
PUMP'S HEAD TYPE EXPLANATION
TYPE Y INTELLIGENT PUMP HEAD
Features:
When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the power supply will be automatically cut off to stop the motor；
The pressure reduces while reopening the water outlet, then the pressure switch will automatically turn on the power supply, and the motor rerun.
Application scope:
Car washer, solar energy automatic water, water system automatic control or other fluid automatic control auxiliary equipment, etc...
TYPE H REFLUX PUMP HEAD
Features:
When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the reflux valve is opened, the water flow circulates in the pump cavity, and the motor will be
continually running. Therefore, the water spray hole size requirements are not high, with strong adaptability.
Application scope:
High-pressure spraying equipment, agricultural spraying, and so on need high-pressure fog application occasions.
INTERFACE TYPE
EXPLANATION
The pump's head type and the interface can be freely replaced, please
contact us
for the details.
TECHNICAL PARAMETERS
|
Model
|
Volts
|
Power
|
Max. pressure
|
Working pressure
|
Flow
|
Suction lift
|
|
W0542YD-12-30
|
12V
|
30W
|
7KG
|
4.5KG
|
3L/MIN
|
1.5M
|
|
W0542YD-12-60
|
12V
|
60W
|
8KG
|
5.5KG
|
5L/MIN
|
1.5M
|
RELATED MODELS TECHNICAL PARAMETERS
*
The technical parameters above are only a few for your reference.
*
All models can be equipped with adapters.
*
All models can be powered by solar power, DC power, solar panels, batteries, etc.
*
You can
tell us what you use the pump for or the parameters required
,
then we'll recommend you suitable pumps.
ATTENTION
*
Do not use water or dirty water whose temperature exceeds 60℃ (silt in dirty water will cause irreversible damage to the pump).
*
Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water. Dry the pump body after use.
*
Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.
*
Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump).
*
It is strictly forbidden to use this machine without the filter, and the density of the filter should be above 80 mesh (impurities will cause damage to the pump).
*
The diameter of the spray hole must meet the specified value, otherwise, the water pump will be damaged.
*
Please confirm the power supply before use, the power supply parameters must be consistent with the pump input parameters
DESUN2195 Inspection Fast Delivery Water Circulation Pump Smart Silent Domestic Tap Water Booster Pump Factory From China
some application scope for reference, not all.
Mainly used for
High - pressure fog - making, long - distance or mountain road trucks brake water cooling,
pumping wine, milk, soy milk, drinking, cooking oil, and other liquids, Pumping gasoline,
diesel, viscous liquids; Spray irrigation and water spraying, cleaning car, air contioner,
vacuum cleaner，
water purifier, etc...
