Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Decca/oem
-
Weight (KG):
-
90
-
Application:
-
Many industries
-
Cutting material:
-
Stainless steel, carbon steel, alloy steel, etc.
-
Voltage /frequency:
-
220V/50HZ
-
Motor:
-
1800W
-
Blade speed:
-
150-250rpm
Quick Details
-
Cutting Thickness (mm):
-
10
-
Blade Size(mm):
-
1.5mm
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Decca/oem
-
Weight (KG):
-
90
-
Application:
-
Many industries
-
Cutting material:
-
Stainless steel, carbon steel, alloy steel, etc.
-
Voltage /frequency:
-
220V/50HZ
-
Motor:
-
1800W
-
Blade speed:
-
150-250rpm
Products Description

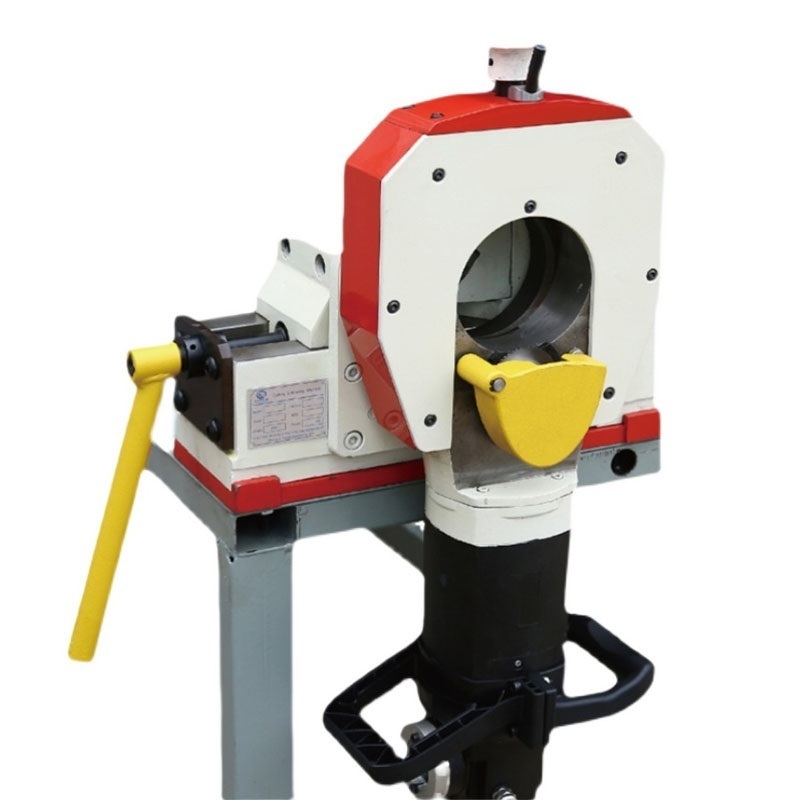

XJPE series planetary pipe cutting machine is driven by a motor. The 1800W motor ensures strong power, convenient operation and space saving.
Fix the pipe to be cut on the "self-centering" clamping device during operation. The pipe will not be deformed. During cutting, the cutting head is driven by the manual or automatic device to rotate around the pipe once and the cutting blade cuts the pipe.
After cutting, the section is vertical. Burr-free, the pipe is not deformed to ensure the quality of pipe welding, and it can complete the bevel requiring mechanical cold processing without damaging the pipe material.
It is used for semiconductors, electronic equipment, beer, pharmaceuticals, biotechnology, beverages, dairy products, pressure vessels, oil, and natural gas., Chemical, aviation and aerospace industries, shipbuilding, power construction, boilers, water treatment and other industries are the best choice for direct welding of pipes after cutting.
Features
●
The motor speed can be adjusted, and different speeds can be selected according to different wall thicknesses.
●
The planetary tube cutting blade only cuts in and cuts from the inside to the outside at the best position.
●
The planetary pipe cutting machine can quickly replace the blades, and the blades can be universally used in AXXAIR CC120 and GF+ pipe cutting machines.
●
The cutting section has high verticality, and can be used for automatic welding requirements after cutting, and it is not deformed by multi-point clamping.
●
The pipe diameter of the cut pipe can be adjusted quickly and can be completed in a few seconds.
●
The motor has its own air cooling system and temperature control protection system, which makes the motor durable.
●
Use planetary special bevel knife to bevel the pipe.
●
Cutting material: stainless steel, carbon steel, alloy steel, etc.
●
The machine is fixed on the worktable, after clamping
Product Paramenters
Customer Photos
Our Advantages
Our service
1. Free technology training or machine inspection at our factory.
2. Free Installation and debugging: our engineers will teach you installation and debugging for free.
3. After-sales service: we will supply the free repairment on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage.)
4. Online remote control for software problems, Whatspp or Wechat for video checking.
5. We also provides customized services to meet different customer requirement.
