Quick Details
-
Model Number:
-
KSNT-40W12/ KSNT-40W24
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
12V 24V 40W nema 3R LED Driver
-
Dimming type:
-
triac/Phase-out
-
Output:
-
12V 24V 40W
-
Certification:
-
UL/cUL Class2 CE Certs.
-
Material:
-
aluminum case
-
Warranty:
-
5 Years
-
Protection:
-
OCP, OVP, SCP, OTP
-
Efficiency:
-
≥ 91%
-
Application:
-
LED Strip Light,Pendants, Linears,Cove Lights,Cabinet lighting.
-
Color:
-
White/ Black
Quick Details
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KSPOWER
-
Model Number:
-
KSNT-40W12/ KSNT-40W24
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
12V 24V 40W nema 3R LED Driver
-
Dimming type:
-
triac/Phase-out
-
Output:
-
12V 24V 40W
-
Certification:
-
UL/cUL Class2 CE Certs.
-
Material:
-
aluminum case
-
Warranty:
-
5 Years
-
Protection:
-
OCP, OVP, SCP, OTP
-
Efficiency:
-
≥ 91%
-
Application:
-
LED Strip Light,Pendants, Linears,Cove Lights,Cabinet lighting.
-
Color:
-
White/ Black
Products Description
waterproof ip65 12V 24V 40W led power supply Phase Dimming ul approved Class2 led driver cabinet for outdoor led lighting
The KSPOWER - NT series triac dimmable led driver 40 Watt is one constant voltage solution, single channel, accept AC input voltage 120V, output voltage 12Volt /24Volt compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers. The class 2 12V /24V dimming transformer use low profile metal aluminum case, dry and damp, makes the dimmable led drivers solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and NEMA 3R waterproof environment protection rated for indoor or outdoor use, the phase dim led driver provide 5 years warranty and outstanding led dimming performance.
|
Input Voltage
|
120V & 230VAC
|
|
|
|
|||
|
NO.
|
KSNT-40W12/ KSNT-40W24
|
|
|
|
|||
|
Output Voltage
|
12V/24V
|
|
|
|
|||
|
Rated Current
|
3.34A/1.67A
|
|
|
|
|||
|
Rated Power
|
40W
|
|
|
|
|||
|
Ripple & Noise (max.)
|
200mVp-p/ 250mVp-p
|
|
|
|
|||
|
Certificate
|
UL /cUL Class2 CE RoHS ...
|
|
|
|
|||
|
Dimension(L*W*H)
|
177*70*35mm/6.97*2.76*1.38in
|
|
|
|
|||
Features:
* Input Voltage: 120V AC input, 60Hz for Residential, Commercial, and Industrial Use
* Color: Black or White
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt and 24Volt options
* Driver Type: Class 2 Class P

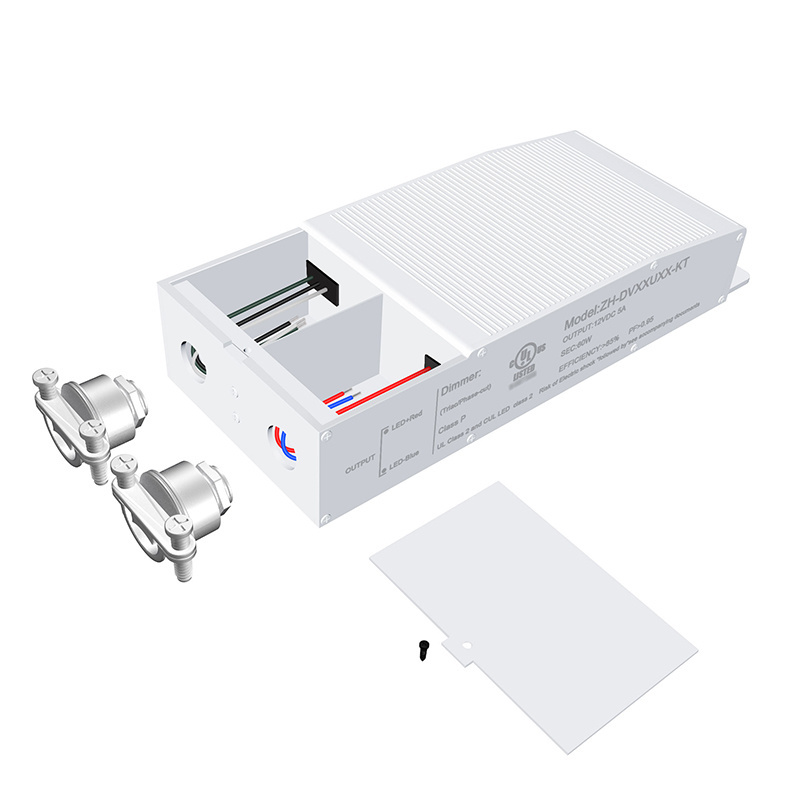

* Enclosure: LISTED Enclosure with junction box
* Dimmable with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* NEMA 3R Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL FCC Listed
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Color: Black or White
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt and 24Volt options
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with junction box
* Dimmable with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* NEMA 3R Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL FCC Listed
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Show Details
Dimming Connect Drawing
Compatibility
|
Dimmer Model
|
Drivers
|
Dimmer Model
|
Drivers
|
Dimmer Model
|
Drivers
|
|
LUTRON DV-600P
|
No Flicker
|
LUTRON MSC-600M
|
No Flicker
|
LEVITON IP106-ILZ
|
No Flicker
|
|
LUTRON D-603PGH
|
No Flicker
|
LUTRON V-600
|
No Flicker
|
LEVITON DSE06-102ELV
|
No Flicker
|
|
LUTRON MAELV-600
|
No Flicker
|
LUTRON PD-6WCL
|
No Flicker
|
LEVITON DSL06-ILZ
|
No Flicker
|
|
LUTRON VT-600M
|
No Flicker
|
LUTRON SELV-300P
|
No Flicker
|
LEVITON DDL06-BL
|
No Flicker
|
|
LUTRON NT-603P
|
No Flicker
|
LUTRON MIRELV-600M
|
No Flicker
|
LEVITON DD710-BD
|
No Flicker
|
|
LUTRON NTLV-603P
|
No Flicker
|
LUTRON SPS-600
|
No Flicker
|
LEVITON IPL06-10
|
No Flicker
|
|
LUTRON N-2003P
|
No Flicker
|
LUTRON SPS-300LD-RP
|
No Flicker
|
LEVITON IP710-DL
|
No Flicker
|
|
LUTRON DVCL-153P
|
No Flicker
|
LEVITON 6613-PLW
|
No Flicker
|
LEVITON RDL06-10
|
No Flicker
|
|
LUTRON S-600P
|
No Flicker
|
LEVITON 6681
|
No Flicker
|
LEVITON TSM10-1L
|
No Flicker
|
|
LUTRON CTCL-153P
|
No Flicker
|
LEVITON 6633-P0G
|
No Flicker
|
LEVITON 66EV
|
No Flicker
|
Note: Due to the different power of dimmer and dimming system, the compatibility will be different. Before purchase, it need to confirm with the KSPOWER sales to ensure the best matching effect of the product.
Product Packaging
1. Each one put in one small inner brown box, then 25 pcs put in one standard carton.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
|
Package
|
Piece/Carton(pcs)
|
|
Piece Weight(KG)
|
|
||
|
OEM package
|
25
|
|
0.72
|
|
||
|
Dimension/Brown Box(mm)
|
Dimension/Carton(mm)
|
|
Gross Weight/Carton(KG)
|
|
||
|
78*45*229
|
420*250*245
|
|
19
|
|
||
