Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Mpro-480
-
Dimension:
-
420 x88 x 320mm
-
Power Supply Mode:
-
Other
-
Storage:
-
NA
-
SNR:
-
NA
-
Output Power:
-
NA
-
Connection Type:
-
Other
-
Shell Material:
-
Other
-
Format:
-
MP3
-
The body material:
-
Other
-
Rated Power (RMS):
-
480W
-
Frequency Respose (-3dB):
-
65Hz - 18kHz
-
T.H.D (1kHz, Rated Power):
-
<1%
-
Signal to Noise Ratio:
-
>80dB
-
Power Source:
-
AC 115 / 230 V, 50/60Hz
-
Weight (Net):
-
12kg
-
Dimensions (W x H x D):
-
420 x88 x 320mm
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LUCKY TONE or OEM
-
Model Number:
-
Mpro-480
-
Dimension:
-
420 x88 x 320mm
-
Power Supply Mode:
-
Other
-
Storage:
-
NA
-
SNR:
-
NA
-
Output Power:
-
NA
-
Connection Type:
-
Other
-
Shell Material:
-
Other
-
Format:
-
MP3
-
The body material:
-
Other
-
Rated Power (RMS):
-
480W
-
Frequency Respose (-3dB):
-
65Hz - 18kHz
-
T.H.D (1kHz, Rated Power):
-
<1%
-
Signal to Noise Ratio:
-
>80dB
-
Power Source:
-
AC 115 / 230 V, 50/60Hz
-
Weight (Net):
-
12kg
-
Dimensions (W x H x D):
-
420 x88 x 320mm
Product Description

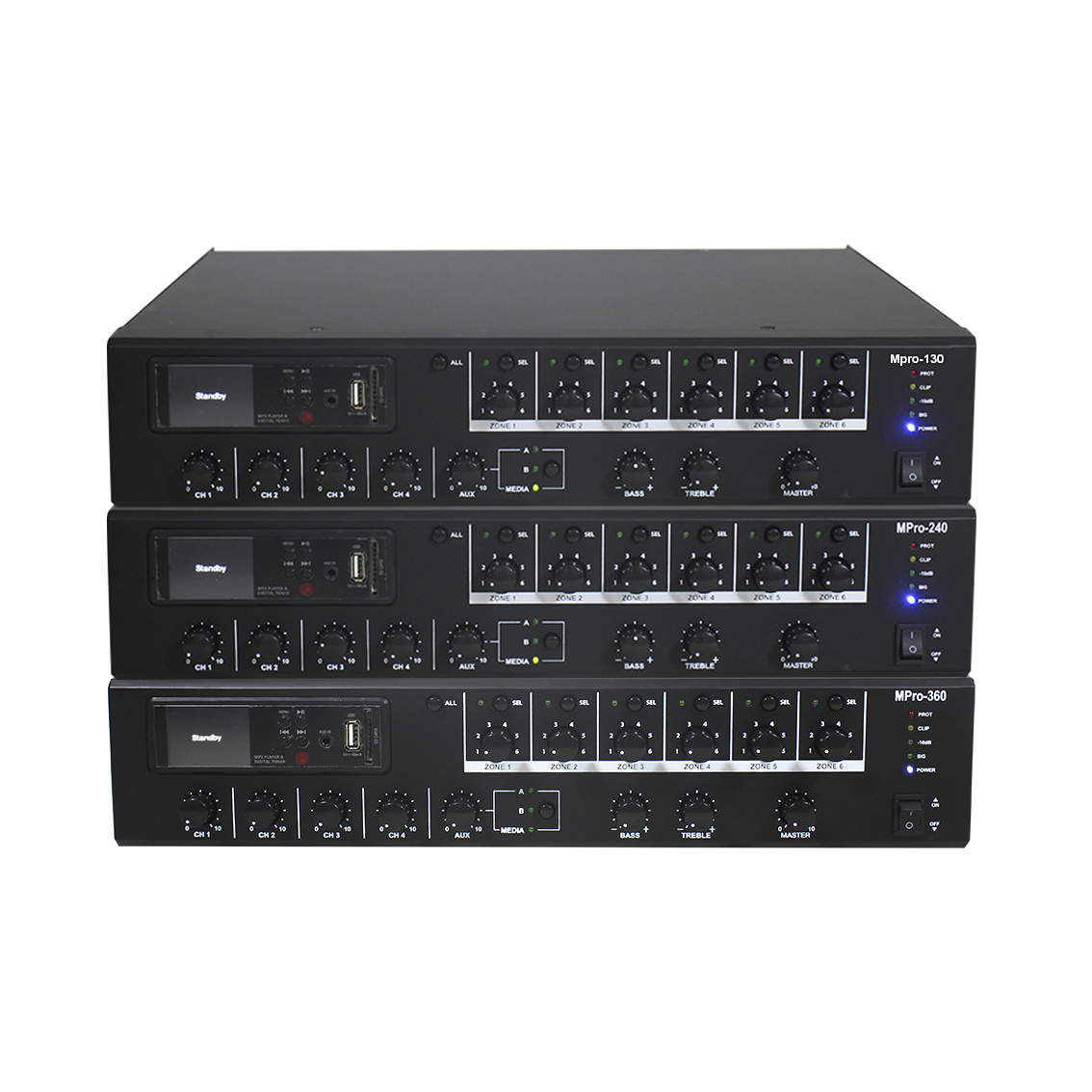

6 Zone Mixer Amplififier with Zone volume control
Features:
>Controls
Front : 4 Input Channel Volume Control and 1 selectable source input Volume control,
Master Volume Control, 6 Zone Speaker Selector with 6 step attenuator.
Rear : Talkover Switch ( VOX ) & Phantom Power Switch for Channel 1-4. Chime enable with
volume control.
Bypass contact input & system mute.
>Connectors
Input : Channel 1 - 4 : Electronically Balanced with chime switch.
Aux : Dual RCA.
Remote Mic : Rj45.
Emergency Alarm input : Euro bolck.
Output : Speaker Output : Euro Bock . Attenuated and Switched 6 CH, Direct Output 4Ω, 70V, 100V.
REC Out & Link out : RCA.
Contact : Ext. Chime : Euro block.
MUTE : Euro block.
>Media player module : MPlayer A / MPlayer B / MPlayer C.
>Indicators : SIG, -10dB, CLIP & Protect. Zone selector.
>Protection : Output Current Limiting, Thermal Protection & DC Offset Protection.
>Cooling : Convection Cooling.
>Option : Rack Mount Kit.
Front : 4 Input Channel Volume Control and 1 selectable source input Volume control,
Master Volume Control, 6 Zone Speaker Selector with 6 step attenuator.
Rear : Talkover Switch ( VOX ) & Phantom Power Switch for Channel 1-4. Chime enable with
volume control.
Bypass contact input & system mute.
>Connectors
Input : Channel 1 - 4 : Electronically Balanced with chime switch.
Aux : Dual RCA.
Remote Mic : Rj45.
Emergency Alarm input : Euro bolck.
Output : Speaker Output : Euro Bock . Attenuated and Switched 6 CH, Direct Output 4Ω, 70V, 100V.
REC Out & Link out : RCA.
Contact : Ext. Chime : Euro block.
MUTE : Euro block.
>Media player module : MPlayer A / MPlayer B / MPlayer C.
>Indicators : SIG, -10dB, CLIP & Protect. Zone selector.
>Protection : Output Current Limiting, Thermal Protection & DC Offset Protection.
>Cooling : Convection Cooling.
>Option : Rack Mount Kit.
|
MODEL
|
Mpro 480
|
|
Rated Power (RMS)
|
480W
|
|
Input sensitivity/Impedance
|
Channel 1-4: -36dB / -10dB Selectable / 20 kΩ Balanced
|
|
|
Aux: 0dB / 20 kΩ Balanced
|
|
|
Remote Mic: 0dB / 20 kΩ Balanced
|
|
Output level/Impedance
|
Speaker Hi-z: 100V(21Ω),70V(10Ω)
|
|
|
Output Low-z: 43V (4Ω)
|
|
|
Rec Out: 0dB / 600Ω Unbalanced
|
|
|
Link Out: 0dB / 600Ω Unbalanced
|
|
Frequency Respose (-3dB)
|
65Hz - 18kHz
|
|
S/N Ratio
|
>80dB
|
|
T.H.D
|
<1%
|
|
Tone Controls
|
100Hz , 10KHz
|
|
Power Source
|
AC 115 / 230 V, 50/60Hz
|
|
Product Dimension (WxHxD)
|
420 x88 x 320mm
|
|
Net Weight
|
12Kg
|
Related Products
Company Introduction
Lucky Tone specializes in design and manufacturing of Public Address System (PA), Conference System and Professional Audio System.
With power amplification, loudspeaker, and PA system management engineering resources all located under one roof.
Lucky Tone uniquely leverages these technologies to deliver products and systems that far outperform the sum of their parts - providing compelling solutions for public Address and Conference systems, and professional installed sound for customers worldwide.
Lucky Tone advances in manufacturing and quality control processes. The company manufactures in its 8,000 square meter, state-of-the-art factory, located in Guangzhou.
Utilizing a compliment of demand planning, parts procurement, operations and logistics, computer-controlled system, and rigorous testing and control, our facility is designed with build-to-order flexibility, giving the company unprecedented ability to respond to customer needs while keeping both parts and finished goods inventory at well-maintained levels.
With power amplification, loudspeaker, and PA system management engineering resources all located under one roof.
Lucky Tone uniquely leverages these technologies to deliver products and systems that far outperform the sum of their parts - providing compelling solutions for public Address and Conference systems, and professional installed sound for customers worldwide.
Lucky Tone advances in manufacturing and quality control processes. The company manufactures in its 8,000 square meter, state-of-the-art factory, located in Guangzhou.
Utilizing a compliment of demand planning, parts procurement, operations and logistics, computer-controlled system, and rigorous testing and control, our facility is designed with build-to-order flexibility, giving the company unprecedented ability to respond to customer needs while keeping both parts and finished goods inventory at well-maintained levels.
Work Place
Our Company Values:
Quality : Excellent and consistent quality are the base for our company, customers and suppliers.
Service : Timely, friendly, and meet the need for the customers.
Customers : We work together and grow together with customers.
Working: As we provide entertainment products, we will provide happy working environment.
Exhibition
Certifications
FAQ
1. How long is the lead time?
Generally 4 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster, But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks....
2. What’s your payment term?
Our policy is at least 30% deposit before production, and 70% paid before shipment date. Certainly, L/C is also acceptable.
3. How do you pack my goods to ensure intactness in the course of transportation?
We always take care of our products and pack them properly. For example, we use strong cardbox (export carton) stuffing with enough foam/ bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
4. What’s your delivery term?
We quote and deliver on the term of FOB Huangpu (except EXW term for small orders. Of course, CIF, C&F or even door to door is acceptable, so we will check and quote the shipping cost additionally.
5. How about the warranty and after-sales service?
Our warranty is 2 years, but considering the long transit time to oversea customers, we offer two and half year warranty from the production date on serial numbers on. For any failure (no-human included), we shall provide you free spare parts and instruction for repair.
6. What’s your advantage over competitors?
A very good questions: Our advantage is more than 10 years expertise and experience in the commercial audio industry, we are good at listening to my customers, getting to know their need and proposing right solution with reliable products. With support from specialized R&D and proficient production teams, we succeed in offering innovative and sophisticated audio equipment of cutting-edge technology, and always keep in mind that to make our customers win and profitable is the core in business cooperation.
Generally 4 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster, But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks....
2. What’s your payment term?
Our policy is at least 30% deposit before production, and 70% paid before shipment date. Certainly, L/C is also acceptable.
3. How do you pack my goods to ensure intactness in the course of transportation?
We always take care of our products and pack them properly. For example, we use strong cardbox (export carton) stuffing with enough foam/ bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
4. What’s your delivery term?
We quote and deliver on the term of FOB Huangpu (except EXW term for small orders. Of course, CIF, C&F or even door to door is acceptable, so we will check and quote the shipping cost additionally.
5. How about the warranty and after-sales service?
Our warranty is 2 years, but considering the long transit time to oversea customers, we offer two and half year warranty from the production date on serial numbers on. For any failure (no-human included), we shall provide you free spare parts and instruction for repair.
6. What’s your advantage over competitors?
A very good questions: Our advantage is more than 10 years expertise and experience in the commercial audio industry, we are good at listening to my customers, getting to know their need and proposing right solution with reliable products. With support from specialized R&D and proficient production teams, we succeed in offering innovative and sophisticated audio equipment of cutting-edge technology, and always keep in mind that to make our customers win and profitable is the core in business cooperation.
