Quick Details
-
Brand Name:
-
HAIZHILI
-
Fork Length:
-
1000mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
L:1460mm W:800mm H:1500/1800/1960/2050/2060mm
-
Product Name:
-

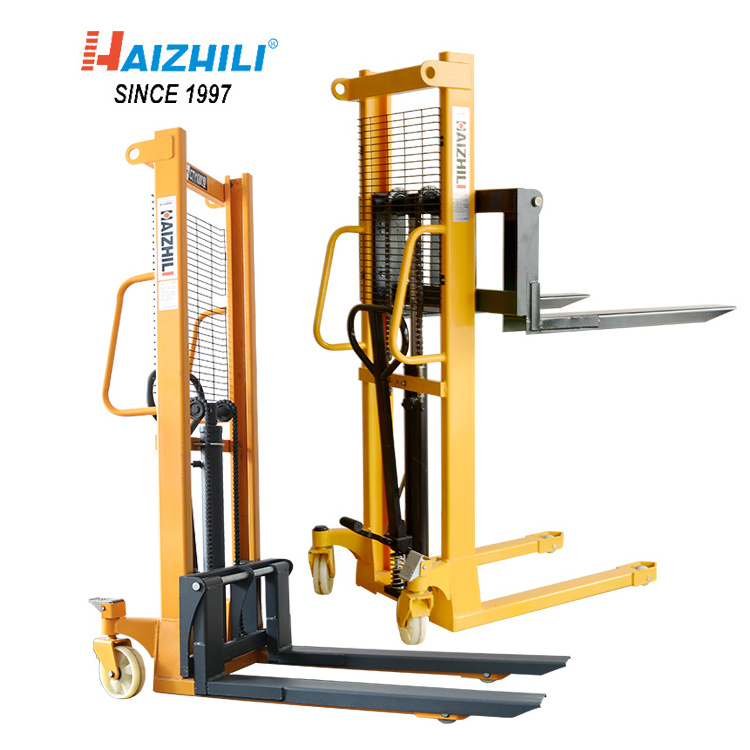

Manual lifter
-
Frame Material:
-
"C" section steel
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Min. Lifting Height:
-
80mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAIZHILI
-
Fork Length:
-
1000mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
L:1460mm W:800mm H:1500/1800/1960/2050/2060mm
-
Product Name:
-
Manual lifter
-
Frame Material:
-
"C" section steel
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Marketing Type:
-
Hot Product 2019
Product Cataloge
Products Description
|
Customized Available
|
|
|
|
|||
|
Model
|
CTY-D1T-1.6M
|
CTY-D2T-1.6M
|
CTY-D3T-1.6M
|
|||
|
Loading Capacity(Kg)
|
1000
|
2000
|
3000
|
|||
|
Max.lifting height(mm)
|
1600
|
|
|
|||
|
Lift Speed(mm/each)
|
33
|
21
|
14
|
|||
|
Cargo Fork Cover Leg Width(mm)
|
690
|
710
|
760
|
|||
|
Descent Speed(mm)
|
Adjustable
|
|
|
|||
|
Long(mm)
|
1440
|
1460
|
1460
|
|||
|
Width(mm)
|
754
|
754
|
804
|
|||
|
Heigh(mm)
|
1960
|
2020
|
2020
|
|||
|
Fork Length(mm)
|
1000
|
|
|
|||
|
Single Fork Width(mm)
|
120
|
130
|
150
|
|||
|
Min.Ground Clearance(mm)
|
20
|
|
|
|||
|
Height Of Legs Above Groud (Min.)(mm)
|
80
|
|
|
|||
|
Cargo Fork Cover Leg Above Ground（Min.)(mm)
|
90
|
|
|
|||
|
Net Weight(kg)
|
152
|
196
|
258
|
|||
