Quick Details
-
Jacket:
-
PVC / XLPE / PO
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YaGuang
-
Model Number:
-
CJPF96/SC
-
Size:
-
2 x 1.5mm2
-
Certificate:
-
ABS/BV/CCS
-
Standard:
-
IEC60092
-
Rated voltage:
-
0.6/1KV
-
Sample:
-
Contact
-
Rated Temperature:
-
+90℃
-
Package:
-
Wooden Durm
-
Core:
-
single core / multi cores
-
Flame retardant:
-
DC, SC
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Marine
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC / XLPE / PO
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YaGuang
-
Model Number:
-
CJPF96/SC
-
Size:
-
2 x 1.5mm2
-
Certificate:
-
ABS/BV/CCS
-
Standard:
-
IEC60092
-
Rated voltage:
-
0.6/1KV
-
Sample:
-
Contact
-
Rated Temperature:
-
+90℃
-
Package:
-
Wooden Durm
-
Core:
-
single core / multi cores
-
Flame retardant:
-
DC, SC
Product Description

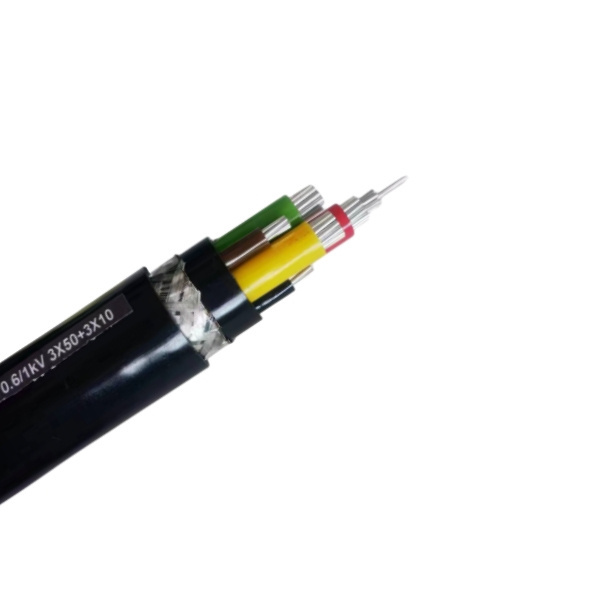

This cable is designed for power, lighting, and control systems on
ships, offshore structures
, and other installations that
require flame retardant . It is also suitable for use in the metallurgical industry, chemical plants, power plants, mines, and
more.
require flame retardant . It is also suitable for use in the metallurgical industry, chemical plants, power plants, mines, and
more.
Specification
|
Standards
|
IEC60092
|
|
Certification
|
ABS/BV/CCS
|
|
Conductor
|
Tinned or bare copper conductor, class 2/ Class 5(R)
|
|
Insulation
|
Cross-Linked Polyethylene - XLPE(J)
|
|
Screen
|
Metal/Polyester tape, copper wire braid (8 types)
|
|
Inner Sheath
|
Thermoplastic polyolefin - SHFI (PF), Cross-linked polyolefin - SHF2 (PJ), PVC - ST2 (V)
|
|
Armour
|
Copper wires braid (8), Steel wires braid (9)
|
|
Outer sheath
|
Thermoplastic polyolefin - SHFI (6), Cross-linked polyolefin - SHF2 (5), PVC - ST2 (2), None (0)
|
|
Rated Voltage
|
U0/U: 0.6/1 kV
|
|
Maximum Temperature At Conductor
|
+90℃
|
|
Characteristic under fire conditions
|
DC / SC
|
|
Specifications
|
1 core: 1~300 mm2;
2~5 cores: 1~185 mm2;
4~37 cores: 1mm2, 1.5mm2, 2.5mm2, 4mm2.
|
Type, Description and Standard
|
Type
|
Description
|
Standard
|
|
CJPJ/SC
|
XLPE Insulated Cross-linked PO Sheathed Bunched Cable Flame Retardant Halogen-free Low-smoke Shipboard Power Cable
|
IEC60228 IEC60092-350 IEC60092-353 IEC60092-351 IEC60092-359 IEC60332-3A IEC61034 IEC60754
|
|
CJPJ80/SC
|
XLPE Insulated Cross-linked PO Sheathed Tinned Copper Wire Braided Bunched Cable Flame Retardant Halogen-free Low-smoke Shipboard
Power Cable |
|
|
CJPJ90/SC
|
XLPE Insulated Cross-linked PO Sheathed Galvanized Steel Wire Braided Bunched Cable Flame Retardant Halogen-free Low-smoke
Shipboard Power Cable |
|
|
CJPJ85/SC
|
XLPE Insulated Cross-linked PO Inner Sheathed Tinned Copper Wire Braided Cross-linked PO Outer Sheathed Cable Flame Retardant
Halogen-free Shipboard Cable |
|
|
CJPJ95/SC
|
XLPE insulated, Cross-linked PO Inner Sheathed, galvanized steel wire-braided, cross-linked PO Outer Sheathed, bunched cable with
flame retardant, halogen-free, and low-smoke properties, designed for shipboard power applications |
|
|
CJPF/SC
|
XLPE insulated, PO-sheathed, bunched cable with flame retardant, halogen-free, and low-smoke properties, designed for shipboard
power applications |
IEC60228 IEC60092-350 IEC60092-353 IEC60092-351 IEC60092-359 IEC60332-3A IEC61034 IEC60754
|
|
CJPF80/SC
|
XLPE insulated, PO-sheathed, tinned copper wire-braided, bunched cable with flame retardant, halogen-free, and low-smoke
properties, designed for shipboard power applications |
|
|
CJPF90/SC
|
XLPE insulated, PO-sheathed, galvanized steel wire-braided, bunched cable with flame retardant, halogen-free, and low-smoke
properties, designed for shipboard power applications |
|
|
CJPF86/SC
|
XLPE insulated, PO-inner-sheathed, tinned copper wire-braided, cross-linked PO-outer-sheathed, bunched cable with flame retardant,
halogen-free, and low-smoke properties, designed for shipboard power applications |
|
|
CJPF96/SC
|
XLPE insulated, PO-inner-sheathed, galvanized steel wire-braided, cross-linked PO-outer-sheathed, bunched cable with flame
retardant, halogen-free, and low-smoke properties, designed for shipboard power applications |
|
|
CJPJP/SC
|
XLPE insulated core-screened, cross-linked PO-sheathed, bunched cable with flame retardant, halogen-free, and low-smoke
properties, designed for shipboard power applications |
IEC60228 IEC60092-350 IEC60092-353 IEC60092-351 IEC60092-359 IEC60332-3A IEC61034 IEC60754
|
|
CJPJP80/SC
|
XLPE insulated, core-screened, cross-linked PO-sheathed, tinned copper wire-braided, bunched cable with flame retardant,
halogen-free, and low-smoke properties, designed for shipboard power applications |
|
|
CJPJP90/SC
|
XLPE insulated, core-screened, cross-linked PO-sheathed, galvanized steel wire-braided, bunched cable with flame retardant,
halogen-free, and low-smoke properties, designed for shipboard power applications |
|
|
CJPJP85/SC
|
XLPE insulated, core-screened, PO-inner-sheathed, tinned copper wire-braided, cross-linked PO-outer-sheathed, bunched cable with
flame retardant, halogen-free, and low-smoke properties, designed for shipboard power applications |
|
|
CJPJP95/SC
|
XLPE insulated, core-screened, PO-inner-sheathed, galvanized steel wire-braided, cross-linked PO-outer-sheathed, bunched cable
with flame retardant, halogen-free, and low-smoke properties, designed for shipboard power applications |
|
|
CJPFP/SC
|
XLPE insulated, core-screened, PO-sheathed, bunched cable with flame retardant, halogen-free, and low-smoke properties, designed
for shipboard power applications |
IEC60228 IEC60092-350 IEC60092-353 IEC60092-351 IEC60092-359 IEC60332-3A IEC61034 IEC60754
|
|
CJPFP80/SC
|
XLPE insulated, core-screened, PO-sheathed, tinned copper wire-braided, bunched cable with flame retardant, halogen-free, and
low-smoke properties, designed for shipboard power applications |
|
|
CJPFP90/SC
|
XLPE insulated, core-screened, PO-sheathed, galvanized steel wire-braided, bunched cable with flame retardant, halogen-free, and
low-smoke properties, designed for shipboard power applications |
|
|
CJPFP86/SC
|
XLPE insulated core screened with PO inner sheath, tinned copper wire braided with PO outer sheath bunched cable, flame retardant
halogen-free and low-smoke shipboard power cable |
|
|
CJPFP96/SC
|
XLPE insulated core screened with PO inner sheath, galvanized steel wire braided with PO outer sheath bunched cable, flame
retardant halogen-free and low-smoke shipboard power cable |
|
|
CJ86/SC
|
XLPE insulated, tinned copper wire braided with PO outer sheath bunched cable, flame retardant halogen-free shipboard power cable
|
IEC60228 IEC60092-350 IEC60092-353 IEC60092-351 IEC60092-359 IEC60332-3A IEC61034 IEC60754
|
|
CJ96/SC
|
XLPE insulated, galvanized steel wire braided with PO outer sheath bunched cable, flame retardant halogen-free shipboard power
cable |
|
|
CJ85/SC
|
XLPE insulated, tinned copper wire braided, cross-linked with PO outer sheath bunched cable, flame retardant halogen-free and
low-smoke shipboard power cable |
|
|
CJ95/SC
|
XLPE insulated, galvanized steel wire braided, cross-linked with PO outer sheath bunched cable, flame retardant halogen-free and
low-smoke shipboard power cable |
|
