Quick Details
-
Product name:
-
1Mii HiFi Desktop Decoder with LDAC
-
Bluetooth Chip:
-
CSR8675
-
DAC Chip:
-
2 x ES9038Q2M
-
Complies with:
-
LDAC,aptX,aptX-LL,aptX-HD
-
Audio Input:
-
Coaxial & Optical & USB & BT
-
Output jack:
-
3.5mm earphone, RCA/AUX
-
Channel:
-
Two-channel
-
Color:
-
Black/Silver
-
THD + N:
-
<0.0004%@1kHz,<0.0005@20-20khZ
-
SNR:
-
≥122dB
Quick Details
-
Brand Name:
-
1Mii/Lavaudio
-
Model Number:
-
DS600
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
1Mii HiFi Desktop Decoder with LDAC
-
Bluetooth Chip:
-
CSR8675
-
DAC Chip:
-
2 x ES9038Q2M
-
Complies with:
-
LDAC,aptX,aptX-LL,aptX-HD
-
Audio Input:
-
Coaxial & Optical & USB & BT
-
Output jack:
-
3.5mm earphone, RCA/AUX
-
Channel:
-
Two-channel
-
Color:
-
Black/Silver
-
THD + N:
-
<0.0004%@1kHz,<0.0005@20-20khZ
-
SNR:
-
≥122dB
Why Choose Us
Product Paramenters
|
Product model
|
DS600 Desktop DAC (Black)
|
|
|
Solution
|
CSR8675 Bluetooth chip + Customized driver + XMOS XU208 + DAC chip ES9038Q2M x 2 + OPA1612 x 2 + heapphone amplifier chip BUF634 x2
|
|
|
USB Input
|
support DSD512, PCM 768kHz/32bit decoding, compatible with Windows, IOS and Android
|
|
|
Coaxial and Optical Input
|
support PCM 24bit/192kHz and DSD64(Dop)
|
|
|
oaxial and Optical Input
|
support PCM 24bit/192kHz and DSD64(Dop)
|
|
|
Output Audio Interface
|
3.5mm, RCA(2.85Vrms/0dB)
|
|
|
Complies with
|
LDAC, aptX, aptX-LL, aptX-HD codec
|
|
|
Hi-Fi feature
|
THD+N:<0.0004%@1kHz,<0.0005@20-20khZ; SNR: ≥122dB
|
|
|
Preamplifier Application
|
|
|
|
CNC Aluminum Unibody
|
|
|
|
OLED Display Screen
|
|
|
|
Remote Control
|
|
|
|
Product size
|
110 x 123.7 x 27.3mm (510g)
|
|
|
Package Size
|
16.2 x 16.2 x 6.1cm (830g)
|
|
Products Description

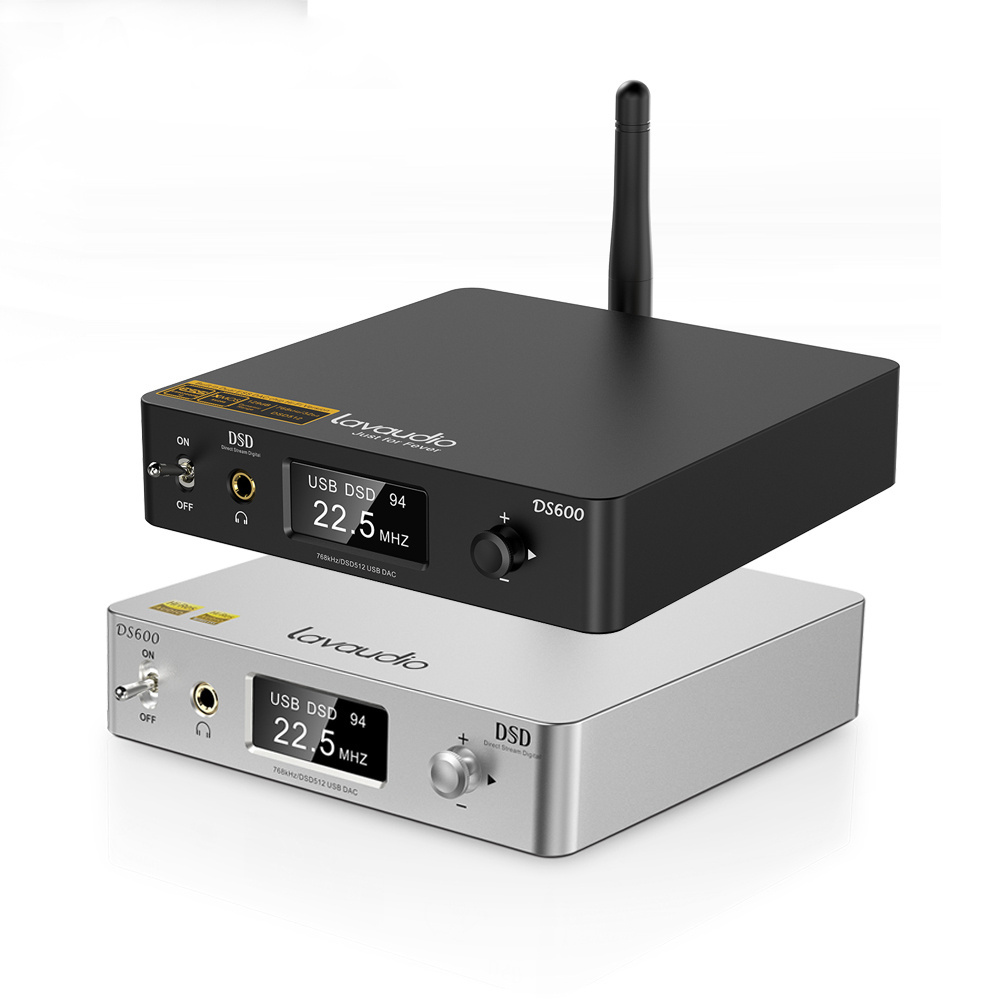

Lavaudio DS600 - HiFi DSD Music DAC Audio Decoder
1>>>HiFi Audio DAC
2>>>2*ES9038Q2M + BUF634*2
3>>>PCM 32Bit/768Khz & DSD512
4>>>XMOS XU208 & Customized Driver
Lavaudio DS600 is a HiFi DSD DAC for home stereo, office, desktop use, which upgrades your old audio devices with incredible HiFi music. The HiFi DAC support USB/Blue tooth/ Coaxial/Optical input and 3.5mm headphone/RCA output.
2>>>2*ES9038Q2M + BUF634*2
Lavaudio DS600 USB DAC uses 2*ES9038Q2M chips, with unprecedented dynamic range and ultra-low distortion. THD+N as low as 0.00012% and SNR greater than 126dB, making DS600 DAC provides HiFi sound and better high frequency extension. Upgraded Lavaudio DS600 HiFi DAC added two current amplifier chips of BUF634, now you have more ability to drive your headphones(16-150 Ω).
3>>>PCM 32Bit/768Khz & DSD512
The XMOS XU208 gives DS600 Blue tooth USB audio DAC excellent decoding ability, USB input supports DSD64-DSD512 and PCM 16Bit/44.1KHz-32Bit/768kHz. The powerful decoding ability is far more than CD and SACD, retaining more abundant music details, restores better sound, bring you the sound of touching soul.
4>>>XMOS XU208 & Customized Driver
The HiFi stereo DAC uses second generation of XMOS XU208 USB receiver chip, equipped with driver customized by German Thesycon, can provide better support for DSD native, and brings a warm, delicate, emotional sound with clear details and full of dynamics.
5>>>HiFi Lossless Sound
Lavaudio DS600 DAC can be used as Blue tooth receiver, supporting LDAC and APTX-HD in Blue tooth mode. Reach up to 32bit/768KHz in USB input mode. Powerful decoding ability ensures HiFi and lossless DSD music experience. Specially designed for audiophilese.
