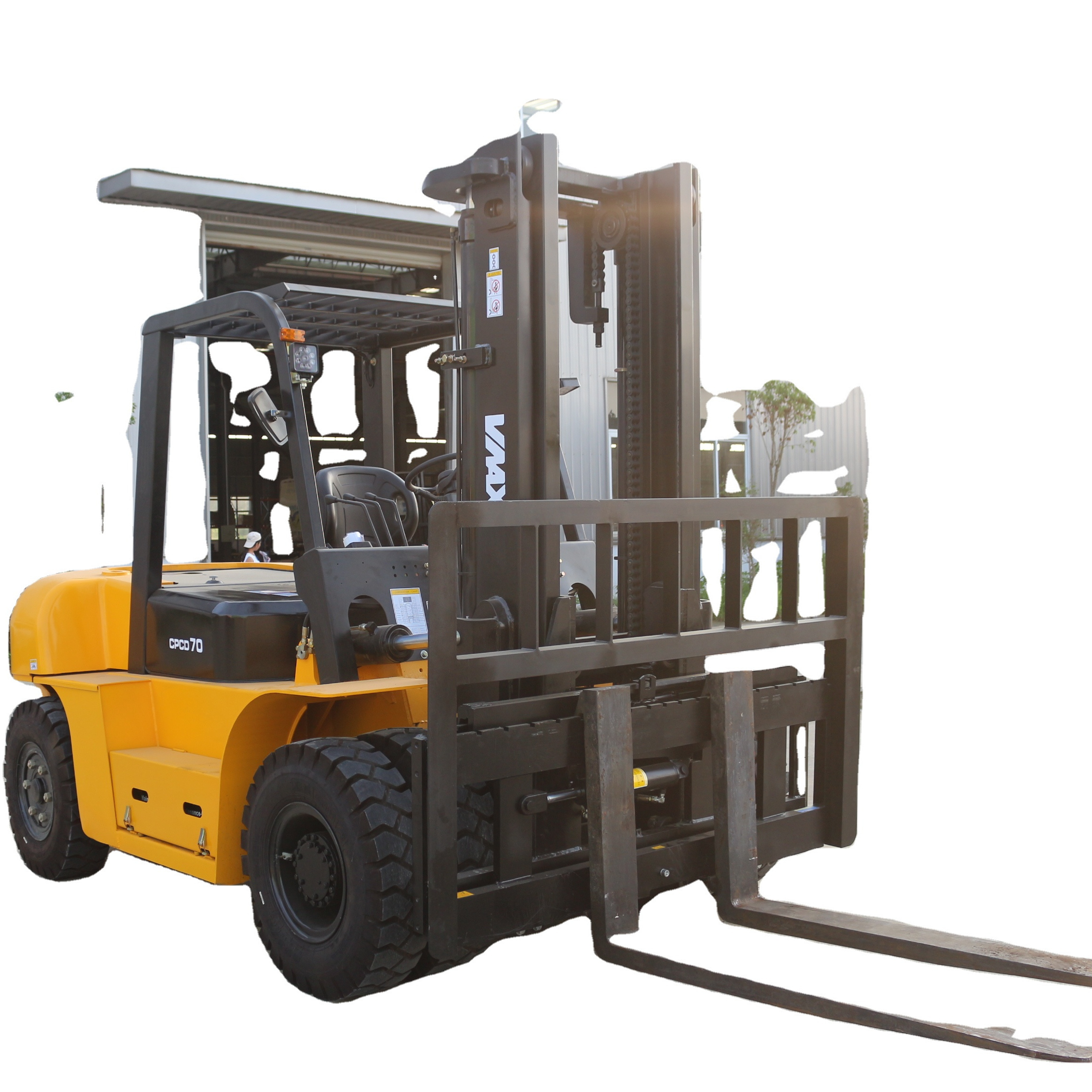

7 ton diesel forklift VMAX Style CE ISO SGS Listed Forklift truck 7000kg
-Adopt top brand XiChai engine
-
With all kinds of Japan engine and America engine
are optional
-Equipped with famous brand parts, Japanese transmission or Korea transmission , seat with safety belt and so on
-Attachments can be easy as customer's requirements, such as tire clamps,paper roll clamps,fork
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
VMAX
-
Fork Length:
-
1220mm
-
Fork Width:
-
125
-
Overall Dimensions:
-
3440*1995*2500mm
-
Weight (KG):
-
9350 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power type:
-
Diesel
-
Loading Capacity:
-
7000 kg
-
Engine 1:
-
XICHANG 6110
-
Type of tyres:
-
Pneumatic tyres
-
Safety Device:
-
Safety seat with steady belt,warning light
-
Color:
-
Red,Orange,Yellow,Green,White etc.
-
Others:
-
Free tool box,spare parts
-
After Warranty Service:
-
Video technical support
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
VMAX
-
Fork Length:
-
1220mm
-
Fork Width:
-
125
-
Overall Dimensions:
-
3440*1995*2500mm
-
Weight (KG):
-
9350 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power type:
-
Diesel
-
Loading Capacity:
-
7000 kg
-
Engine 1:
-
XICHANG 6110
-
Type of tyres:
-
Pneumatic tyres
-
Safety Device:
-
Safety seat with steady belt,warning light
-
Color:
-
Red,Orange,Yellow,Green,White etc.
-
Others:
-
Free tool box,spare parts
-
After Warranty Service:
-
Video technical support
Product Description
7 ton diesel forklift with Japan Engine Hydraulic 7000 kg Forklift
Details Images
Power system
Equipped with Chinese powerful and reliable engines with excellent enviromental performance,original imported
with all kinds of Japan engine and America engine
are optional
Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.
sides.
Lighting system
Equipped with full set of LED lamps,which are brighter and energy saving.
Power system
Wide-view mast design,providing superior vision,making the operation more security.
Security system
Equipped with load sensing priority hydraulic system,flexible steering,mast lifting speed increased by 20%.
Lighting system
Lengthened wheelbase design,reasonable functional layout,super comfortable and larger ddriving space.
Product Paramenters
|
1
|
Manufacturer
|
|
VMAX
|
|
2
|
Model
|
Unit
|
CPCD70
|
|
3
|
Power type
|
|
Diesel
|
|
4
|
Rated capacity
|
kg
|
\000
|
|
5
|
Load center
|
mm
|
500
|
|
6
|
Operator type
|
mm
|
Drive in seat
|
|
7
|
Max. lift height of mast with Load-backrest
|
mm
|
4380
|
|
8
|
Max.lift height of fork(standard)
|
mm
|
3000
|
|
9
|
Height of mast (standard)
|
mm
|
2500
|
|
10
|
Free lift height(standard)
|
mm
|
205
|
|
11
|
Height of Load-backrest
|
mm
|
1372
|
|
12
|
Distance from seat to overhead guard
|
mm
|
1045
|
|
13
|
overhead guard height
|
mm
|
2450
|
|
14
|
Length with fork
|
mm
|
3440
|
|
15
|
Front overhang
|
mm
|
590
|
|
16
|
Rear overhang
|
mm
|
740
|
|
17
|
Wheel base
|
mm
|
2250
|
|
18
|
The height of traction pin
|
mm
|
395
|
|
19
|
Min. ground clearance
|
mm
|
200
|
|
20
|
Overall width
|
mm
|
1995
|
|
21
|
The distance between forks
|
mm
|
1840/300
|
|
22
|
Tread(front /rear)
|
mm
|
1470/1700
|
|
23
|
Min. Turning radius(outside)
|
mm
|
3370
|
|
24
|
Min. Turning radius(inside)
|
mm
|
210
|
|
25
|
Min. Intersecting aisle
|
mm
|
3040
|
|
26
|
Mast tilt angle
|
deg
|
6° / 12°
|
|
27
|
Fork size
|
mm
|
1220*150*70
|
|
28
|
Max.Drive speeds(with/without load)
|
km/h
|
26/28
|
|
29
|
Lifting speeds (with load)
|
mm/s
|
500
|
|
30
|
Lowering speeds(with /without full load)
|
mm/s
|
600/300
|
|
31
|
Max. tractive force
|
KN
|
65
|
|
32
|
Max.grade ability (with/without full load)
|
%
|
30/18
|
|
33
|
Total weight
|
kg
|
9340
|
|
34
|
Weight Distribution full load (front/ rear)
|
kg
|
14560/1780
|
|
35
|
Weight Distribution zero load(front / rear)
|
kg
|
3860/5500
|
|
36
|
Quantity of wheels
|
|
4 X / 2
|
|
37
|
Type of tyres
|
|
Penumatic tires
|
|
38
|
Front tire
|
|
8.25*9-15-14PR
|
|
39
|
Rear tire
|
|
8.25-15-14PR
|
|
40
|
Driving Brake
|
|
hydraumatic pedal
|
|
41
|
Parking Brake
|
|
Mechanical manual
|
