Quick Details
-
Output Speed:
-
2052r/min
-
Warranty:
-
1year
-
Weight (KG):
-
16
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KRS
-
Name:
-

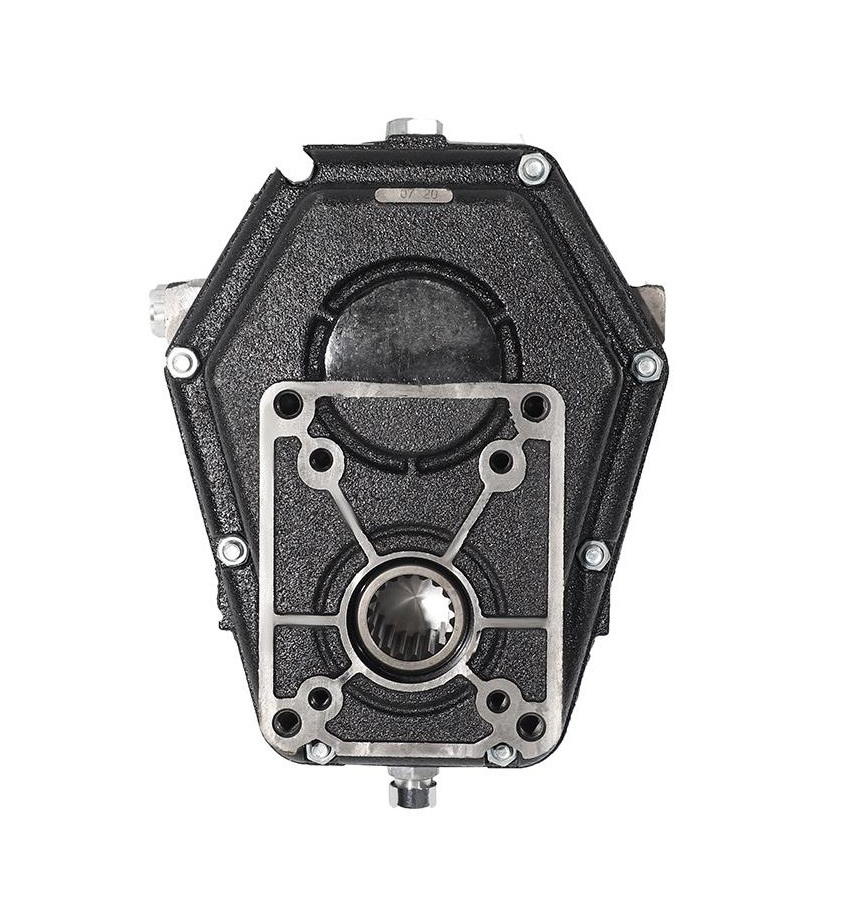

Agricultural 540rpm pto gearbox KMT7001 for tractor hydraulic system
-
Material:
-
Cast iron
-
Use:
-
For goup 3 gear pump
-
Certification:
-
CE
-
Ratio:
-
3.8
-
Input torque:
-
660Nm
Quick Details
-
Gearing Arrangement:
-
Spur
-
Output Torque:
-
166Nm
-
Input Speed:
-
540r/min
-
Output Speed:
-
2052r/min
-
Warranty:
-
1year
-
Weight (KG):
-
16
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KRS
-
Name:
-
Agricultural 540rpm pto gearbox KMT7001 for tractor hydraulic system
-
Material:
-
Cast iron
-
Use:
-
For goup 3 gear pump
-
Certification:
-
CE
-
Ratio:
-
3.8
-
Input torque:
-
660Nm
| Name | Agricultural 540rpm pto gearbox KMT7001 for tractor hydraulic system |
| Input torque | 660Nm |
| Output torque | 166Nm |
| Output speed | 2052r/min |
| Power | 37kw |
| Rotation | clockwise and anti clockwise available |
Gearbox:
KMT7001-6
The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO). Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps. Different input running speeds can also be suitable,provided that the gearbox output speed does not exceed 3000 rpm.
Gears
Made in Steel UNI 18 PCR M03.Stub teeth guarantee very high resistance and run very quietly.
Shafts
Made in steel UNI 16 CRN4.They are coupled with gears via splined parts and are thus more suitable to stand the torques stated in the catalogue.
Pump assembly
Pump assembly requires a half-coupling and a fitting flange according to specific requirements,when ordering please specify flange and pump shaft type.Contact our technical staff when installing special pumps.
Drawing
Plastic bag packing for one piece,
two pieces in one exporting carton;
100 cartons put on a pallet;
Service A: OEM and customized products are acceptable
Our company can do OEM and customized products according to the requirements of customer,welcome to inquiry.
Service B: Develop new products is welcome
We have technicians and research department to make new products, if customers need us to develop new products according to sample or drawing, it is welcome.
Service C: Sourcing related producs
Our company have much experience in hydraulic and transmissions parts field, such as gear pump,tractors,farm machinery,if you need other products, we can find the right supplier for you,and order together with our products will enjoy a discount.
Other requirement from customers can be discussed.
