Quick Details
-
Warranty:
-
25 year product warranty
-
Brand Name:
-
Trina
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1762*1134*30 mm
-
Application:
-
Solar System
-
OEM Order:
-
Acceptable
-
Product name:
-
Sola Panel
-
Frame:
-
Black Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Rated
-
Connector:
-
MC4 Compatible Connector
-
Cell Type:
-
N-type 182*91mm
-
Cable:
-
4mm2
-
Certificate:
-
CE/TUV/IEC/INMETRO/RETIE
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, N-TYPE
-
Panel Efficiency:
-
above 21.5%
-
Warranty:
-
25 year product warranty
-
Brand Name:
-
Trina
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1762*1134*30 mm
-
Application:
-
Solar System
-
OEM Order:
-
Acceptable
-
Product name:
-
Sola Panel
-
Frame:
-
Black Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Rated
-
Connector:
-
MC4 Compatible Connector
-
Cell Type:
-
N-type 182*91mm
-
Cable:
-
4mm2
-
Certificate:
-
CE/TUV/IEC/INMETRO/RETIE
Manufacturers part number TSM-430-NEG9R.28

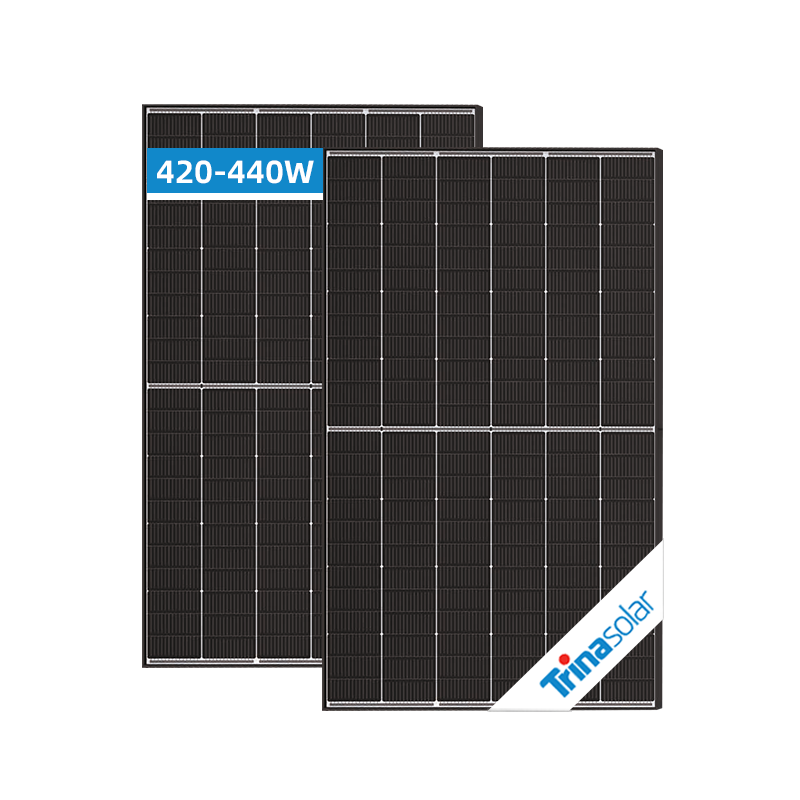

Trina Solar 430W Vertex S+ Dual Glass N Type i-TOPCon Solar Module – Black Frame/White Backsheet
Small in size, bigger on power
* Multi-busbar technology for better light trapping, lower series resistance, improved current collection and enhanced reliability
* Reduces installation cost with higher power bin and efficiency
Dual-glass Design, High Reliability
* Excellent fire rating and resistance to harsh environmental conditions
* 5,400 Pa snow load and 4,000 Pa wind load (test loads)
Maximize Energy Harvest
* Up to 25 years product warranty and 30 years power warranty
* 1 % first-year degradation and 0.4 % annual degradation enabled by N-type technology
Universal solution for residential and C&I rooftops
* Designed for compatibility with existing mainstream inverters, optimizers and mounting systems
* Perfect size and low weight for easy handling. Optimized transportation cost
* Flexible installation solutions for system deployment
Module packaging 36 pcs per pallet – 936 per container
Trina Solar 430W Vertex S+ Dual Glass N Type i-TOPCon Solar Module – Black Frame/White Backsheet
Small in size, bigger on power
* Multi-busbar technology for better light trapping, lower series resistance, improved current collection and enhanced reliability
* Reduces installation cost with higher power bin and efficiency
Dual-glass Design, High Reliability
* Excellent fire rating and resistance to harsh environmental conditions
* 5,400 Pa snow load and 4,000 Pa wind load (test loads)
Maximize Energy Harvest
* Up to 25 years product warranty and 30 years power warranty
* 1 % first-year degradation and 0.4 % annual degradation enabled by N-type technology
Universal solution for residential and C&I rooftops
* Designed for compatibility with existing mainstream inverters, optimizers and mounting systems
* Perfect size and low weight for easy handling. Optimized transportation cost
* Flexible installation solutions for system deployment
Module packaging 36 pcs per pallet – 936 per container
