- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HNOC
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
1250*650*2150
-
Name:
-
Vertical hydraulic baler
-
Machine type:
-
Hydraulic packer
-
Usage:
-
Fully automatic and manual
-
Control system:
-
Easy to operate
-
Hay balers Application:
-
Completely maintain the physical characteristics of the material
-
Baling track:
-
Two bundles for easy operation
-
Platen:
-
The platen automatically returns to position
-
Compression effect:
-
Anti-rebound barb, keep compression effect
-
Compaction ratio:
-
The waste compaction ratio can reach 5:1
-
Dynamic:
-
High power
Quick Details
-
Voltage:
-
220v/380v
-
Power:
-
4kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNOC
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
1250*650*2150
-
Name:
-
Vertical hydraulic baler
-
Machine type:
-
Hydraulic packer
-
Usage:
-
Fully automatic and manual
-
Control system:
-
Easy to operate
-
Hay balers Application:
-
Completely maintain the physical characteristics of the material
-
Baling track:
-
Two bundles for easy operation
-
Platen:
-
The platen automatically returns to position
-
Compression effect:
-
Anti-rebound barb, keep compression effect
-
Compaction ratio:
-
The waste compaction ratio can reach 5:1
-
Dynamic:
-
High power
Product Description
Introduction

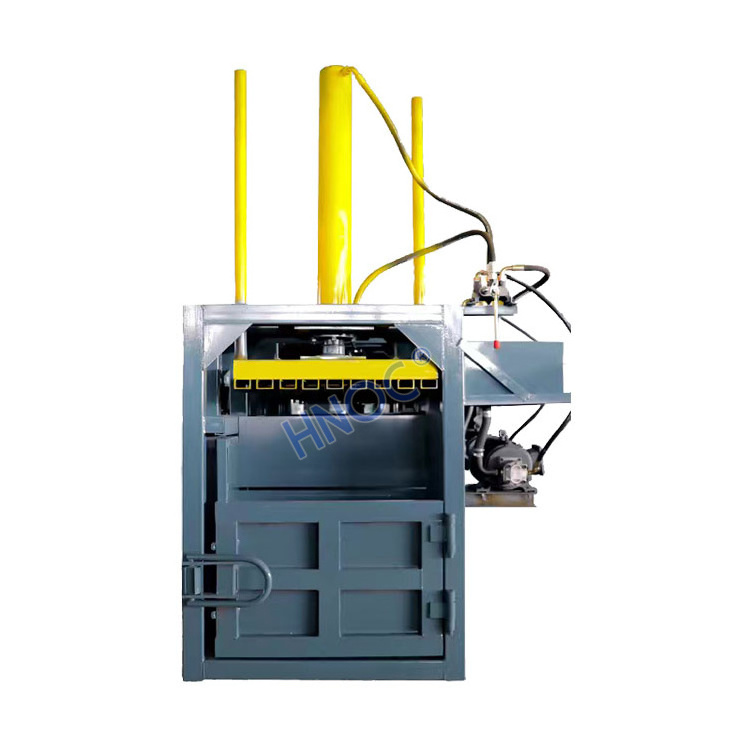

Vertical hydraulic packaging machine is mainly used for recycling compressed cardboard, waste film, waste paper, foam, beverage cans and industrial scraps and other packaging materials and waste products. This vertical baler reduces waste storage space, saves up to 80% of stacking space, reduces transportation costs, and facilitates environmental protection and waste recycling.
Application
1.
It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.
2.
Random compression of various materials such as waste cartons, beverage bottles, and cans.
Features
1.
Completely maintain the physical characteristics of the material .
2.
The waste compaction ratio can reach 5:1.
3.
The platen automatically returns to position.
4.
Anti-rebound barb, keep compression effect .
5.
Two tying lanes for easy operation.
Product Details
|
model
|
Motor（kw）
|
Package size
|
Overall
dimensions |
oil pump
（mm） |
Cylinder bore
|
Oil cylinder diameter
|
|
8T Single bar
|
4
|
600*400*600
|
1250*650*2150
|
306 Gear Pumps
|
80
|
90
|
|
10T Single bar
|
7.5
|
800*400*800
|
1450*650*2600
|
320 Gear Pumps
|
100
|
115
|
|
20T Single bar
|
7.5
|
800*400*800
|
1450*650*2700
|
325 Gear Pumps
|
125
|
140
|
|
30T Single bar
|
11
|
1000*600*800
|
1650*850*2750
|
532 Gear Pumps
|
140
|
160
|
|
30T Double bar
|
11
|
1000*600*800
|
1650*850*2700
|
532 Gear Pumps
|
100
|
115
|
|
40T Double bar
|
11
|
1000*600*800
|
1650*850*2750
|
550 Gear Pumps
|
125
|
140
|
|
60T Double bar
|
15
|
1200*800*1000
|
1600*2100*3100
|
563 Gear Pumps
|
140
|
160
|
|
80T Double bar
|
18.5
|
1200*800*1000
|
1700*2100*3300
|
563 Gear Pumps
|
160
|
180
|
|
100T Double bar
|
22
|
1200*800*1000
|
1700*2100*3900
|
563 Gear Pumps
|
160
|
180
|
|
120TFull steel plate
|
22
|
1100*700
|
1400*2000*4200
|
80YCY PZS
|
200
|
230
|
Wide Application
Product Photograph
F A Q
Q1: What's your company after- sales service?
A1:
Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation:
1.
improper operation problem, we will solve all the usage problems by video call.
2.
machine parts problem, we will send you accessories to ensure the normal use of the machine.
3.
In addition, our engineers go abroad every year to help customers solve
problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
Q2: Do you provide any warranty about your equipment?
A2
:
One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure
that the machine is in the best condition when it arrives at your address. Some
minor problems of the machine are usually caused by incorrect operation by
novices, so we provide a full set of English instruction videos and common problem
solving videos,To help users better understand it. On the other hand, we put a set
of spare parts in the toolbox of the machine in advance. During your use, if you
need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to
arrive at your door. During use, if you have any questions, we can make a video
call at any time.
Q3: How to transport without customs clearance experience ?
A3:
We have reliable forwarder agent which can ship items to you by sea/air/
Express to your home. We will help you choose the most suitable shipping
service.
Q4: Does your company provide training?
A4:
Yes, we provide a series of instructional videos and after-sales service
videos,supporting Chinese, English, French, Spanish, and Arabic.
Q5: Differences from other brands in China?
A5:
We are not only selling machines, we pay more attention to after-sales service.We have always believed that the customer's reputation is the best
advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
