European popular small telescopic articulated wheel loader like avant multione

European popular small telescopic articulated wheel loader like avant multione

FOB Reference Price: Get Latest Price

≥1 Sets

US $19000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 3450x1500x2480mm

Warranty:: 12 Months

Machine Weight:: 2300kg

Bucket capacity:: 0.8cbm, 0.8m3

Product name:: wheel loader

Operating weight:: 2300kg

Rated Power:: 37kw/50hp

Engine:: Chinese/ Euro 3, 5/ EPA Tier 4

Tire:: 31x15.5-15

Max. lifting height:: 3560mm

Wheel loader speed:: 0-12-24km/h two speed

Min. turning radius:: 2820mm

Transmission:: Hydrostatic

After Warranty Service:: Video technical support, Online support, Spare parts

Local Service Location:: None

Certification:: CE

Quick Details

Engine Brand:: YANMAR

Power:: 42kw

Brand Name:: STEEL CAMEL

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 3450x1500x2480mm

Warranty:: 12 Months

Machine Weight:: 2300kg

Bucket capacity:: 0.8cbm, 0.8m3

Product name:: wheel loader

Operating weight:: 2300kg

Rated Power:: 37kw/50hp

Engine:: Chinese/ Euro 3, 5/ EPA Tier 4

Tire:: 31x15.5-15

Max. lifting height:: 3560mm

Wheel loader speed:: 0-12-24km/h two speed

Min. turning radius:: 2820mm

Transmission:: Hydrostatic

After Warranty Service:: Video technical support, Online support, Spare parts

Local Service Location:: None

Certification:: CE

Product Description

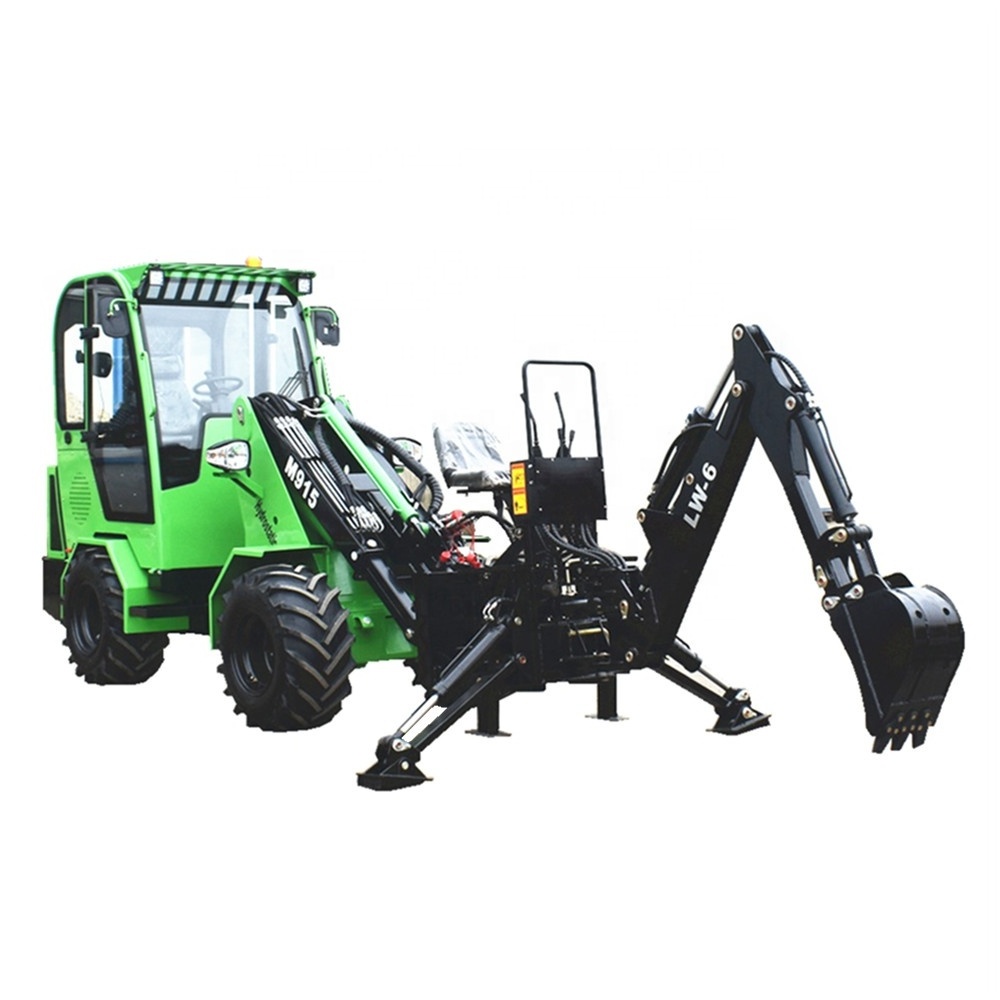

Hydrostatic telescopic avant mini wheel loader with skid steer attachments

STEEL CAMEL M915 multifunction tractor loader with telescopic boom is a machine that can meets all your expect and work requirements.

Its hydrostatic motor drive system , rear seated arrangement offers comfortable driving experience.

The front telescopic boom with hydraulic output and quick hitch , rear hydraulic output and 3 point linkage enable it to finish almost all your work with different attachments.

The high experienced and professional STEEL CAMEL engineering team can develop any special tools you need.

Top components, strict QC system, good service , guarantee your good purchasing and using experience with STEEL CAMEL

In a word, choose "STEEL CAMEL", you'll never be disappointed.

Techincal Data

Model	M915
Dimension (LxWxH)	3400X1500X2300mm
Max. lifting height	3562mm
Pulling force	18kN
Bucket capacity	0.8cbm
Max. loading capacity	1500kg
Min. turning radius	2800mm
Turning angle	450
Min. ground clearance	330mm
Speed	0~12~24km/h
Weight with bucket & counterweight	2300kg
Standard tire	31X15.5-15
Tire pressure	2.8 bar
Oil tank capacity	80L
Pressure	190 bar
Working oil flow	41L/min x 2
Tracking oil flow	120L/min
Oil model(mineral oil)	L-HL46

Detailed Images

Telescopic boom with boom floating function, and hydraulic quick hitch for various attachments

More useful than other normal wheel loaders.

Combination of loader and tractor, both front and rear end can hook attachments, money for one machine, you get both a loader and a tractor, very compact size, can be driven into the warehouse or garage

Wide view cabin, both sides have a door, adjustable steering column, joystick, forward/reverse pedal.

Operating friendly and easily.

Cabin can be tipping over, full access to the inner system, maintenance convenient and simple

Loader Application

Loader+Tractor, one Multi-purpose helper for globle customers

Front part is loader , with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor , with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.

With all the attachments below, STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.
