Quick Details
-
Number of Row:
-
Single row
-
Bore Size:
-
0 - 10 mm
-
Brand Name:
-
RUBEN
-
Model Number:
-
HF1012 HFL1012
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Needle Roller Bearing HF1012 HFL1012
-
Bearing HF1012 Material:
-
Chrome Steel GCR15
-
Bearing HF1012 Cage:
-
Steel Cage.copper Cage.nylon Cage
-
Service:
-
Service
-
Samples:
-
Avaliable
-
Vibration:
-
V1 V2 V3 V4
-
Lubrication:
-
Oil Grease
-
Package:
-
Plastic Bag+ Box+ Carton + Pallet
-
Delivery Time:
-
3-7 Days
-
Quality:
-
Bearing HFL1012 High Quility
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Precision Rating:
-
P6
-
Seals Type:
-
open ZZ 2RS
-
Number of Row:
-
Single row
-
Bore Size:
-
0 - 10 mm
-
Brand Name:
-
RUBEN
-
Model Number:
-
HF1012 HFL1012
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Needle Roller Bearing HF1012 HFL1012
-
Bearing HF1012 Material:
-
Chrome Steel GCR15
-
Bearing HF1012 Cage:
-
Steel Cage.copper Cage.nylon Cage
-
Service:
-
Service
-
Samples:
-
Avaliable
-
Vibration:
-
V1 V2 V3 V4
-
Lubrication:
-
Oil Grease
-
Package:
-
Plastic Bag+ Box+ Carton + Pallet
-
Delivery Time:
-
3-7 Days
-
Quality:
-
Bearing HFL1012 High Quility

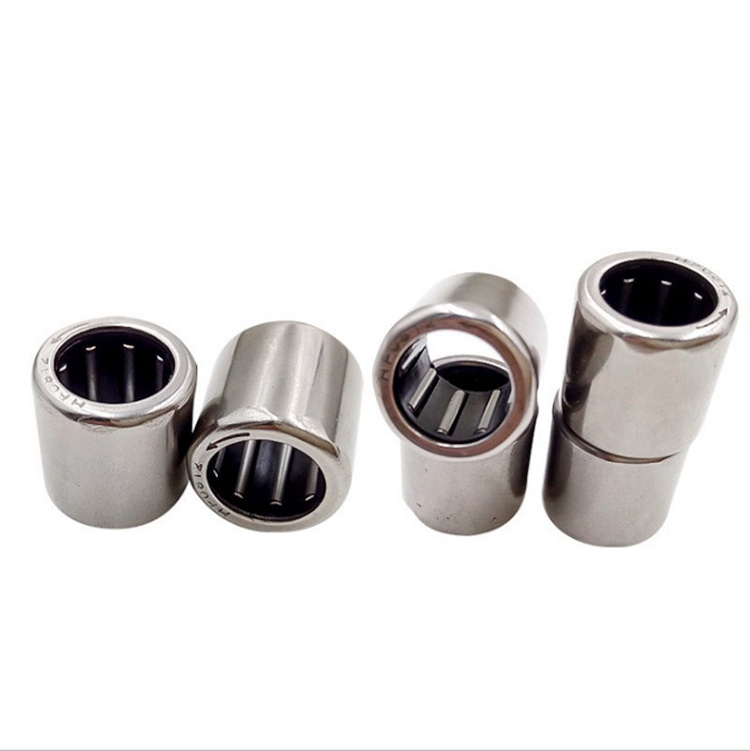

Original China RUBEN Needle Roller Bearing HF1012 One Way Clutch Bearing HFL1012 Size 10X14X12mm
| Brand Name | RUBEN |
| item name | Original China RUBEN Needle Roller Bearing HF1012 One Way Clutch Bearing HFL1012 Size 10X14X12mm |
| Bearing Seals | OPEN ZZ 2RS |
| Material | GCr15,chrome steel, stainless steel,Iron |
| Guarantee | 1YEAR |
| Size | 10X14X12mm |
| Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
| Bearings weight | 0.004kg |
| Payment Item | T/T ,Western Union , Paypal ,Credit card |
| Delivery time | 3-10day |
1.Bearing Specifications :
Needle bearings are commonly referred to as drawn cup needle bearings due to the shape of the bearing housing. Drawn cup needle roller bearings with open ends are needle roller bearings with a very small radial section height. They comprise thi-walled, drawn cup outer rings and needle roller and cage assemblies which together form a complete unit. This type of needle roller bearings use small, cylindrical rllers which are long and narrow. These bearings allow for a large surface area to be in contact with the outer race, and are much more compact than cylindrical rollers.
2.Application of Bearing :
Needle roller bearings are suitable for the automotive industry parts such as rocker arm pivots, compressors, transmissions, and drive shafts.3.Ruben Bearing Features :
Its main features are low Cross section height and high load carrying capacity. Mainly used for bearing arrangements that are compact, inexpensive, and the bore of the bearing housing cannot be used as the raceway for the needle roller cage assembly. The bearing and bearing housing must be installed in an interference ft. If the axial positioning function such as the box shoulder and the stop ring can be omitted, the inner hole of the bearing housing can be made extremely simple and economical. The drawn cup needle roller bearings mounted on the shaft end are open on both sides and closed on one side. The base end face of the closed stamped outer ring can withstand small axial guiding forces.
|
Bearing Number |
Boundary dimensions(mm) |
Moment(Nm) |
Basic load ratings(N) |
Mass(g) |
|||
|
|
Fw |
D |
C |
Md |
Cr |
Cor |
(Approx.) |
|
HF3530 |
35 |
42 |
30 |
121 |
3900 |
3900 |
58 |
|
HF2520 |
25 |
32 |
20 |
66 |
5500 |
5500 |
30.9 |
|
HF3020 |
30 |
37 |
20 |
90 |
4500 |
4500 |
36 |
|
HF3520 |
35 |
42 |
20 |
121 |
3900 |
3900 |
40 |
|
HF1616 |
16 |
22 |
16 |
20.5 |
8500 |
7500 |
14 |
|
HF1816 |
18 |
24 |
16 |
24.1 |
7500 |
7500 |
15.5 |
|
HF2016 |
20 |
26 |
16 |
28.5 |
7000 |
6500 |
17 |
|
HF1012 |
10 |
14 |
12 |
5.3 |
14000 |
11000 |
4 |
|
HF1216 |
12 |
18 |
16 |
12.2 |
10000 |
7000 |
10.5 |
|
HF1416 |
14 |
20 |
16 |
17.3 |
9500 |
8000 |
13 |
|
HF0409 |
4 |
8 |
6 |
0.34 |
34000 |
14000 |
1 |
|
HF0612 |
6 |
10 |
12 |
1.76 |
23000 |
13000 |
3 |
|
|
High Quality Bearings, Choose Ruben.
We are established in year 2008 and we have 10 years experience in bearing manufacture.
|
|||||
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize circuit board & packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight.
We DO NOT offer free samples to end users.
Q:How to place orders?
A: 1.Email us the model, brand and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
