Quick Details
-
Dimension(L*W*H):
-
395x163x225
-
Weight:
-
4500 KG
-
Drilling Diameter:
-
140-254mm
-
Drilling Depth:
-
180m
-
Mobility:
-
Yes
-
Walking speed:
-
2.5km/h
-
Using air pressure:
-
1.7-2.5Mpa
-
Swing speed:
-
45-70rpm
-
Swing torque:
-
3200-4600N.m
-
Drill pipe diameter:
-
76mm,89mm
-
Rig lifting force:
-
12T
-
Rapid rise speed:
-
21m/min
-
Fast feeding speed:
-
40m/min
-
Equiooed with hammer:
-
Medium and high air pressure serires
-
Width of loading:
-
2.4m
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Win Drill
-
Voltage:
-
/
-
Dimension(L*W*H):
-
395x163x225
-
Weight:
-
4500 KG
-
Drilling Diameter:
-
140-254mm
-
Drilling Depth:
-
180m
-
Mobility:
-
Yes
-
Walking speed:
-
2.5km/h
-
Using air pressure:
-
1.7-2.5Mpa
-
Swing speed:
-
45-70rpm
-
Swing torque:
-
3200-4600N.m
-
Drill pipe diameter:
-
76mm,89mm
-
Rig lifting force:
-
12T
-
Rapid rise speed:
-
21m/min
-
Fast feeding speed:
-
40m/min
-
Equiooed with hammer:
-
Medium and high air pressure serires
-
Width of loading:
-
2.4m

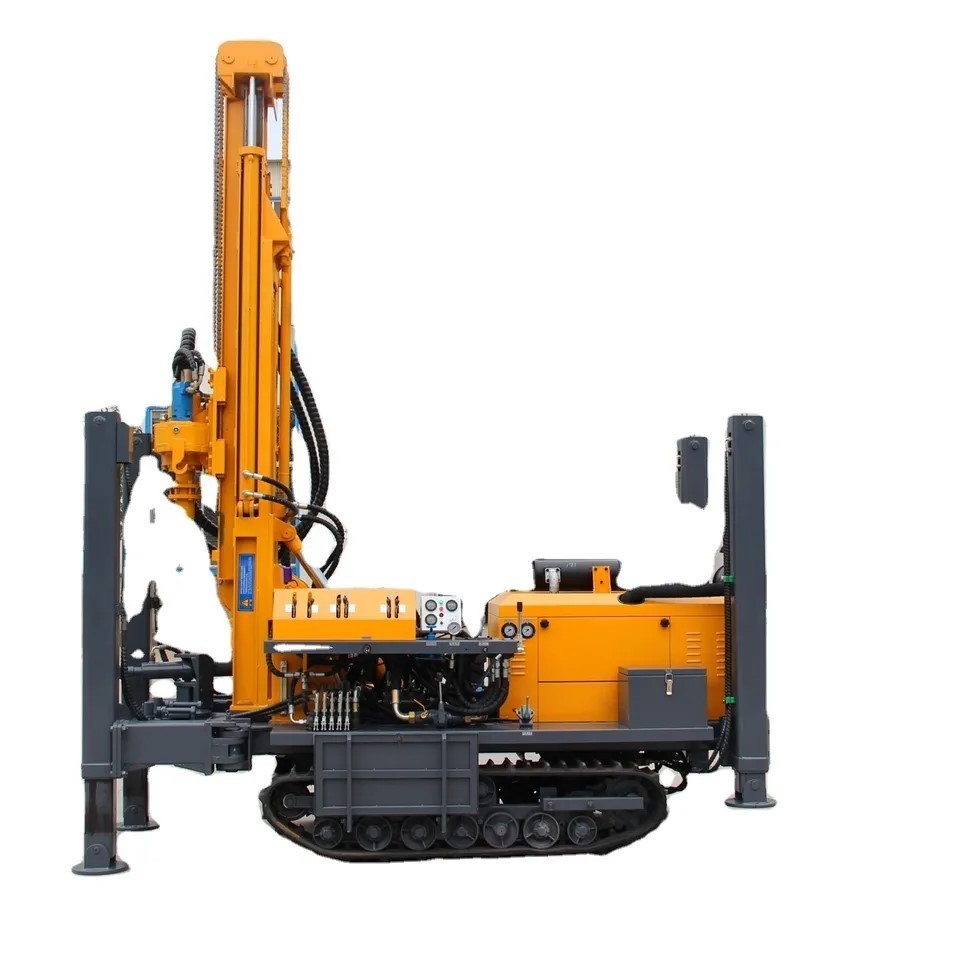

WXY180 Crawler types of drilling machine bore well drill rig
WXY180 Water and gas dual-purpose crawler type 180 meters deep water drilling Features:
1. Equipped with 55KW Yuchai brand turbocharged engine with strong power;
2. Patented design compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. Drilling rig chassis: professional excavator chassis, strong and durable, heavy-duty, wide chain plate, the drilling rig uses rubber tracks, high flexibility, less damage to hard roads;
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost;
6. The operating system is simple and easy to operate;
7. Easy to load and unload on the truck;
8. Dual systems can be added, the Air power system with air compressor and the Mud pump system with mud pump.
| The Weight (T) | 4.5 | Drill pipe diameter | Φ76 Φ89 |
| The Hole Diameter(mm) | Φ140-Φ254 | Drill Pipe Length (m) | 1.5m 2.0m 3.0m |
| Drilling Depth (m) | 180 | Rig lifting force (T) | 12 |
| One-time advance length (m) | 3.3 | rapid Rise Speed (m/min) | 20 |
| Walking speed (km/h) | 2.5 | Fast Feeding Speed(m/min) | 40 |
| Climbing angles (Max.) | 30 | Width of Loadng (m) | 2.4 |
| Equipped capacitor (kw) | 55 | Hoisting force of winch (T) | 1T |
| Working Air Pressure (Mpa) | 1.7-2.5 | Swing torque (N.M) | 3200-4600 |
| Air consumption (m³/min) | 17-31 | Dimension (mm) | 4000*1700*2200 |
| Swing Speed (rpm) | 45-70 | Equipped with hammer | Medium and high aire pressure series |
| The drilling efficiency (m/h) | 10-35 | High leg Stroke (m) |
1.4 |
