Quick Details
-
Brand Name:
-
allledlight
-
Model Number:
-
12V-3A-36W
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
3A
-
Watt:
-
36W
-
Efficiency:
-
83%
-
Case material:
-
Aluminium
-
Operation volt:
-
0-50℃
-
Feature:
-
Switching Power Supply
-
Test:
-
100% full load burn-in test
-
Load Variation:
-
3%
-
IP Rate:
-
IP20
-
Certification:
-
CE ROHS
-
Application:
-
LED Strip Light ,LED Display ,CCTV Camera
Quick Details
-
Input Voltage:
-
220v
-
Output Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
allledlight
-
Model Number:
-
12V-3A-36W
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
3A
-
Watt:
-
36W
-
Efficiency:
-
83%
-
Case material:
-
Aluminium
-
Operation volt:
-
0-50℃
-
Feature:
-
Switching Power Supply
-
Test:
-
100% full load burn-in test
-
Load Variation:
-
3%
-
IP Rate:
-
IP20
-
Certification:
-
CE ROHS
-
Application:
-
LED Strip Light ,LED Display ,CCTV Camera
LED Power Supply Specification :
| Item No. | S-12V-3A |
| Rated Load | 36W |
| Output Voltage | DC12V (Constant Voltage) |
| Output Current | 0-2.5A |
| Input Voltage | AC110 /220V |
| Dimming Range | 5% |
| Dimension | 12V 3A 270 *18*18MM |
| G.Weight | 72g |
| Working Temperature | -30°C~65°C |
| Temperature Rise | ≤30°C |
| Storage temperature | -30~100°C |
| IP code | IP20 |
| Cooling Mode | Air Cooling |
| Warranty | 2 Years |
| Certificate | CE RoHS |
| Protection | Over-Voltage,Over-Current,Over-load,Short-Circuit Protection |
| Function | Indoor Power Supply |
12V 1.5A Specification:
AC Input: AC110-220V
DC Output: 12V 1.5A
Power: 18W
Ahell Material: Aluminum
Size: 188*17*17mm
Weight: 46g
Safety Compliance: CE High Price-Effective Reliability with industry standards built in over voltage,over current,and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
12V 2A Specification:
AC Input: AC110-220V
DC Output: 12V 2A
Power: 24W
Ahell Material: Aluminum
Size: 188*17*17mm
Weight: 48g
Safety Compliance: CE High Price-Effective Reliability with industry standards built in over voltage,over current,and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
12V 3A Specification:
AC Input: AC110-220V
DC Output: 12V 3A
Power: 36W
Ahell Material: Aluminum
Size:
270*18*18
mm
Weight: 72g
Safety Compliance: CE High Price-Effective Reliability with industry standards built in over voltage,over current,and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
12V 4A Specification:
AC Input: AC110-220V
DC Output: 12V 4A
Power: 48W
Ahell Material: Aluminum
Size: 307*19*19mm
Weight: 140g
Safety Compliance: CE High Price-Effective Reliability with industry standards built in over voltage,over current,and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
12V 5A Specification:
AC Input: AC110-220V
DC Output: 12V 5A
Power: 60W
Ahell Material: Aluminum
Size: 307*19*19mm
Weight: 143g
Safety Compliance: CE High Price-Effective Reliability with industry standards built in over voltage,over current,and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
How to calculate Support max LED Strip Length:
Assumption Your LED Strip 60LEDs/m,and each LED 0.2W,then calculate max LED Strip Length 0.2W/LED X 60LEDs/m=12W/m, 60W(this listing)÷12W/m=5m,So,Support the LED Strip(60LEDs/m,0.2W/LED) Length (Max)=5M (Not suggest for use in bathroom)
LED Power Supply Typical Applications
LED Modules, LED Pixel modules, LED strips
LED Power Supply
Package Content
1pc power adapter

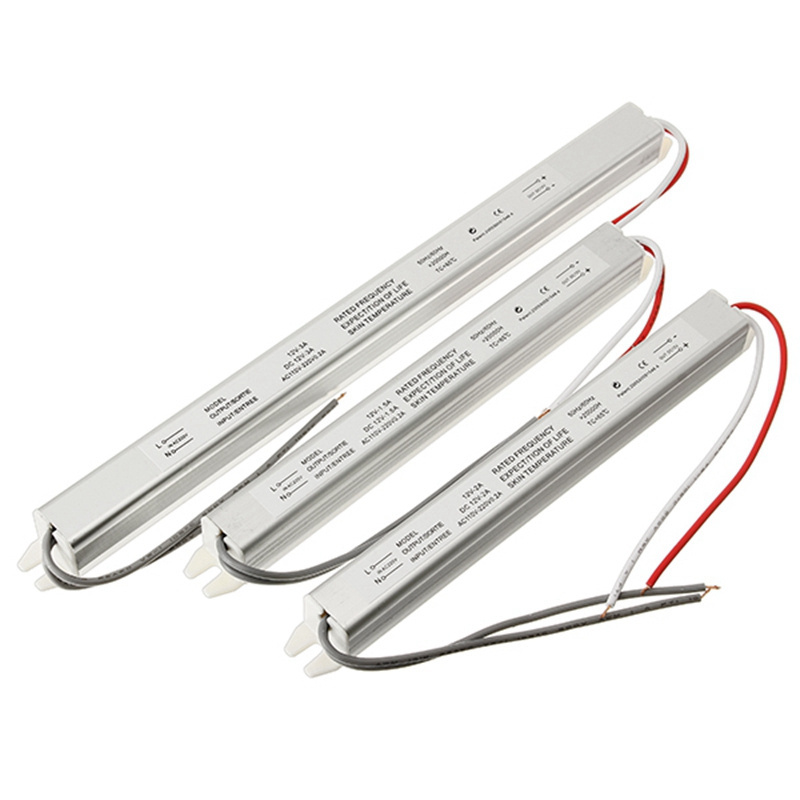

LED Power Supply Photos:
