Quick Details
-
Weight (KG):
-
1550
-
Voltage:
-
220V,50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UBORAY
-
Dimension(L*W*H):
-
(L)4323*(W)2998*(H)3700mm
-
Air/ gass consumption:
-
0.65 mpa/ 0.2 cubic meter/ min
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, BOXING, Embossing, Gluing
-
Packaging Type:
-
Cartons, CANS, Bottles, Stand-up Pouch, Bags, Film, Foil, Pouch, case, Sachet/Pillow bag/Back bag
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
1550
-
Voltage:
-
220V,50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UBORAY
-
Dimension(L*W*H):
-
(L)4323*(W)2998*(H)3700mm
-
Air/ gass consumption:
-
0.65 mpa/ 0.2 cubic meter/ min
Main Features

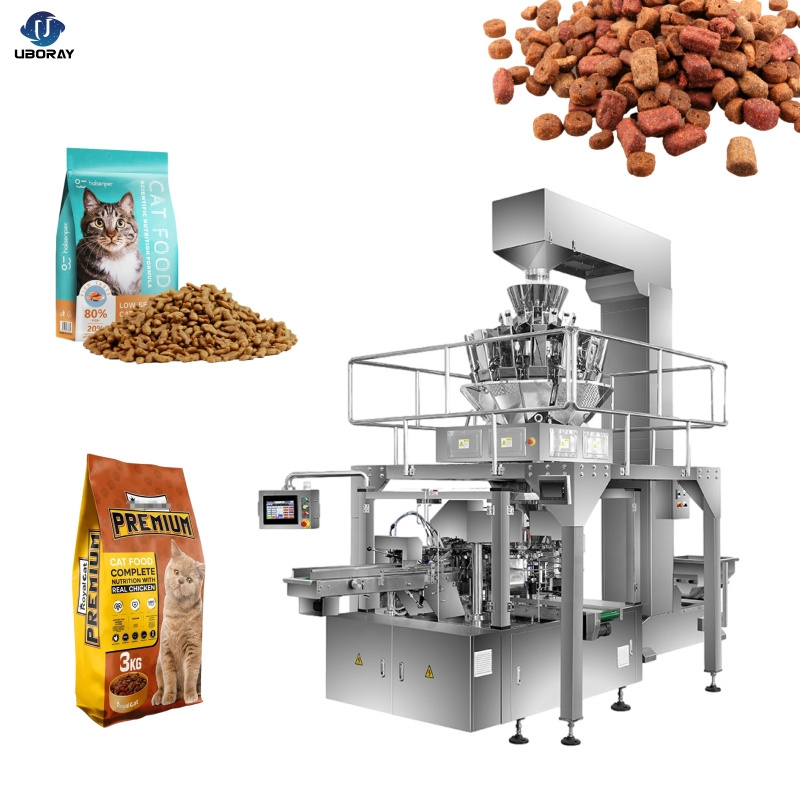

1.Z Shape bucket elevator / incline conveyor :Raise material to multi weigher which controls the start and stop of the hoister.
2.Multihead weigher:10/14/20 heads weighing machine for weighing target weight.
3.Platform:Support the multi weigher.
4.Rotray packing machine:It is for packing pre-made pouch,including get bag,print date,open zipper bag,filling from multihead weigher,option position,hot sealing and cold sealing.
1.Z Shape bucket elevator / incline conveyor :Raise material to multi weigher which controls the start and stop of the hoister.
2.Multihead weigher:10/14/20 heads weighing machine for weighing target weight.
3.Platform:Support the multi weigher.
4.Rotray packing machine:It is for packing pre-made pouch,including get bag,print date,open zipper bag,filling from multihead weigher,option position,hot sealing and cold sealing.
|
Uboray automatic doypack packing machine requirement for
premade bag, stand-up bag with or without zipper. It is suitable for weighing grain, stick, slice, globose, irregular shape
products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee
bean, chips ,raisins,plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea
food, frozen food, small hardware, etc.
|
|
|
|
|
||||
|
Model
|
UB-8200/8250/8350
|
UB-520
|
UB-620
|
UB-720
|
||||
|
Pouch Size
|
W: 80-350mm/L:100-300mm
|
Max.520mm
|
Max.620mm
|
Max.720mm
|
||||
|
Filling range
|
10-3000g
|
80-400mm
|
80-500mm
|
80-600mm
|
||||
|
Capacity
|
40-60bag/min（speed is determined by the product filling quantity）
|
70-250 mm
|
60-300 mm
|
200-350 mm
|
||||
|
Dosing Systems
|
Multi-head combination scale, Linear scale, Volumetric cup, Auger filler, Piston filler, etc.
|
50-2500ML
|
50-4000ML
|
50-5000ML
|
||||
|
Power
|
220V/380V/50/60 HZ(or customize according to specific demands)
|
|
|
|
||||
|
Average precision
|
≤ ±1%
|
|
|
|
||||
|
Cutting type
|
Straight cutting, Zig zag cutting, Round cutting, Special cutting
|
|
|
|
||||
|
Powder
|
2.5KW-3.5kw
|
2.2KW
|
3.0KW
|
4.0KW
|
||||
|
Machine Weight
|
1850KG
|
480KG
|
550KG
|
690KG
|
||||
|
Dimensions (mm)
|
2200x1850x1700mm
|
1500*1600*1800
|
1600*1700*1800
|
1600*1700*1800
|
||||
|
Main standard parts
|
1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
|
|
|
|
||||
