Quick Details
-
Brand Name:
-
Hisource
-
Model Number:
-
Hi-BT14F-A
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
poe extender 5 port
-
Lan/PoE Ports:
-
1 in 4 out
-
POE in:
-
DC52/44-57v
-
Distance:
-
250M
-
Cable:
-
Cat5 or above
-
Whole power:
-
≤90w
-
PoE Ports:
-
Port 2≤60W Port 3-5 ≤30W
-
Standard Protocol:
-
IEEE 802.3af/at/bt
-
Device Type:
-
poe extender
-
Mac address:
-
1k
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1Gbps
-
Brand Name:
-
Hisource
-
Model Number:
-
Hi-BT14F-A
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
poe extender 5 port
-
Lan/PoE Ports:
-
1 in 4 out
-
POE in:
-
DC52/44-57v
-
Distance:
-
250M
-
Cable:
-
Cat5 or above
-
Whole power:
-
≤90w
-
PoE Ports:
-
Port 2≤60W Port 3-5 ≤30W
-
Standard Protocol:
-
IEEE 802.3af/at/bt
-
Device Type:
-
poe extender
-
Mac address:
-
1k

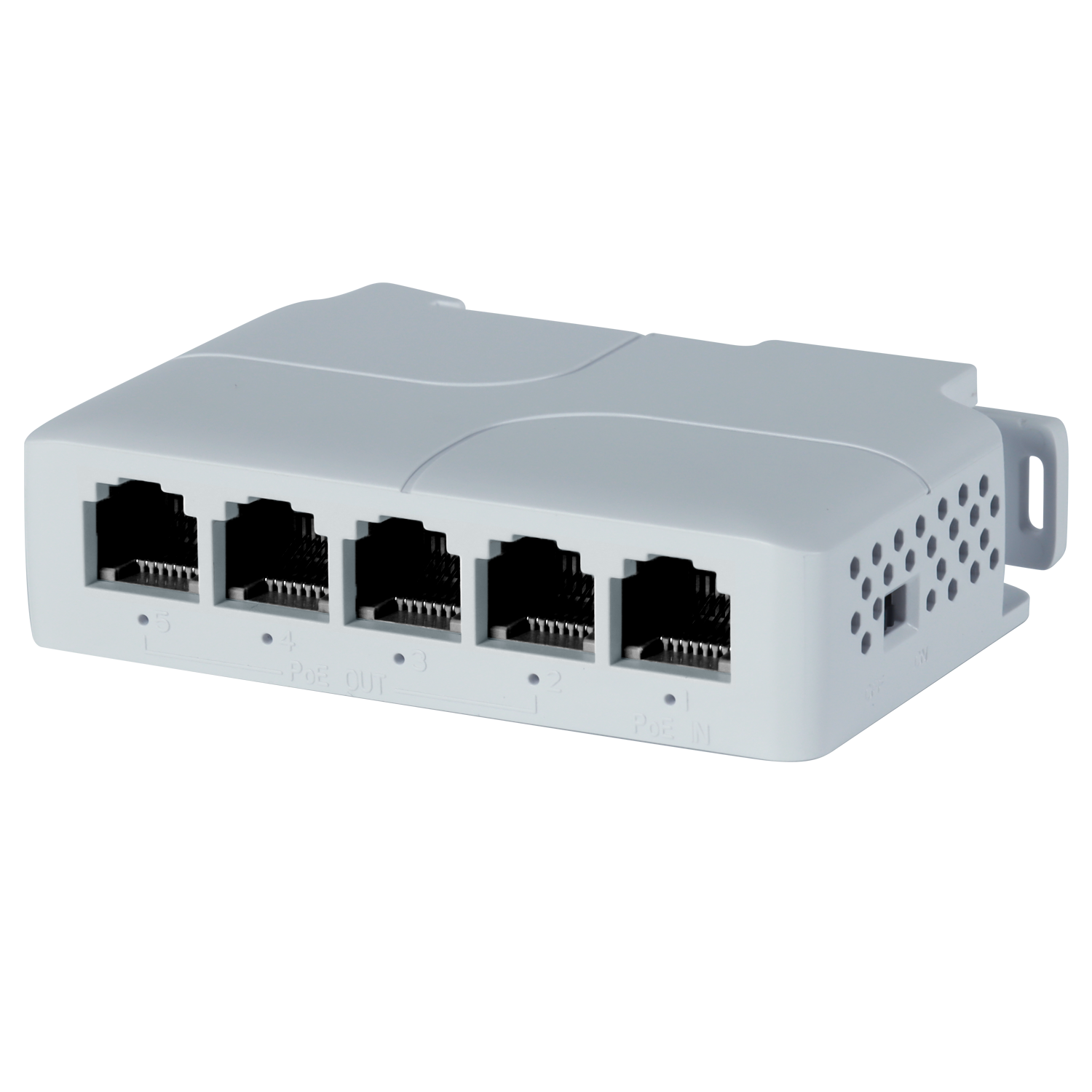

Hot Selling Active 5 port IEEE802.3af at bt POE Extender Mini Ethernet POE Switch for Indoor use
²
1 * IEEE802.3af/at(PoE/90W),1 * IEEE802.3af/at(PoE/60w) power out,3 * IEEE802.3af/at(PoE out)
² Support IEEE802.3AF/AT/BT
² Power in: 44V-57V
whole power≤90W, Port 2≤60W, Port 3-5 ≤30W
VLAN, Supports wall mounting, rail channel mounting
PoE port can detect PD device.
Extends both Ethernet data and PoE to an additional 250 meters.
Wall-mount design
Application:
² Wireless Access Point
² IP Camera
² IP Phone
² Computer Networks
| Product |
4+1 Port PoE Extender |
| Model | Hi-BT14F-A |
| POE Port | 1 in 4 out |
| Output Power |
whole power≤90W
Port 2≤60W Port 3-5 ≤30W |
| Power Pin | Both 1/2+ ,3/6- and 4/5+7/8- |
| POE Portocol | IEEE 802.3af/IEEE 802.3at/ IEEE 802.3bt |
| POE Type | End-span |
| Power Distance | 100m |
| Network Standard | IEEE 802.3 , IEEE802.3u , 802.3x , |
| Network Medium | 10/100/1000BASE-TX:5 class and above non shielded twisted pair |
| Switch Capability | 1Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx:14800pps/port |
| MAC Address | MAC address table 1K |
| Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| Working Environment | Working temperature:-10°-- 55°C |
