Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SXZG
-
Weight (KG):
-
4500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
laser cutting machine
-
Material:
-
Steel Material
-
Color:
-
Optional Color
-
Advantage:
-
High Efficiceny
-
Certification:
-
ce
-
Voltage:
-
Three Phases
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
40m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SXZG
-
Weight (KG):
-
4500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
laser cutting machine
-
Material:
-
Steel Material
-
Color:
-
Optional Color
-
Advantage:
-
High Efficiceny
-
Certification:
-
ce
-
Voltage:
-
Three Phases
good price 10mm metal exchange table all cover 1500W cnc fiber laser cutting machine

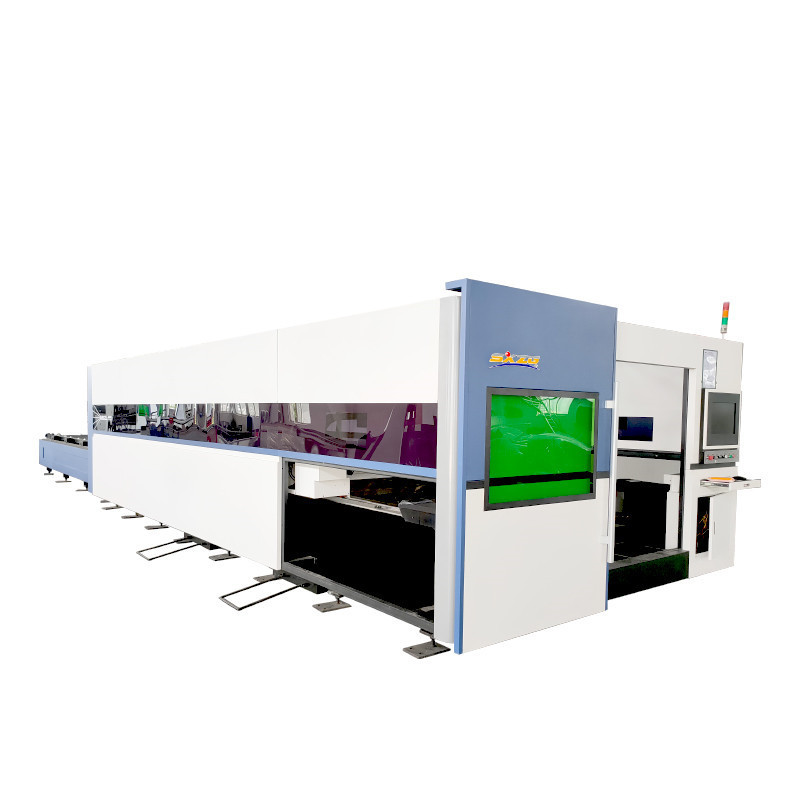

Laser cutting machine
Product Overview
Fiber laser cutting machine
- SANXIN® Fiber Laser Cutting Machine is produced with efficient and ecological fiber laser technology with the proven reliability
and flexibility
- Tough construction with the same solid framework we use for all of SANXIN fiber laser.
- User friendly Cypcut Windows CAD/CAM CNC control unit.
- Unique features:
• Very easy to operate.
• Quick and easy installation.
• Low investment and operating costs.
• The most cost-efficient solution for every requirement
and flexibility
- Tough construction with the same solid framework we use for all of SANXIN fiber laser.
- User friendly Cypcut Windows CAD/CAM CNC control unit.
- Unique features:
• Very easy to operate.
• Quick and easy installation.
• Low investment and operating costs.
• The most cost-efficient solution for every requirement
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Model
|
SXL-3015
|
SXL-4015
|
SXL-6015
|
SXL-4020
|
SXL-6020
|
||||
|
Working Area
|
3000*1500mm
|
4000*1500mm
|
6000*1500mm
|
4000*2000mm
|
6000*2000mm
|
||||
|
Laser Module
|
Fiber Laser Module
|
|
|
|
|
||||
|
Laser Power
|
500-2000W
|
|
|
|
|
||||
|
Driving Mechanism
|
High-precision rack drive
|
|
|
|
|
||||
|
Max.Moving Speed
|
140m/min
|
|
|
|
|
||||
|
Max.Cutting Speed
|
80m/min
|
|
|
|
|
||||
|
Positioning Accuracy
|
0.03mm
|
|
|
|
|
||||
|
Repeatability Accuracy
|
0.02mm
|
|
|
|
|
||||
|
Min.Line Width
|
0.1mm
|
|
|
|
|
||||
|
Cooling Mode
|
water cooling
|
|
|
|
|
||||
PRODUCT CONFIGURATION
Packaging and Delivery
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
A1: We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A2: We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
A3: We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
A4: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
A5: The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
Q6: What’s package, will it protect the products?
A6: Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for
seaworthy transportation.
Q7: How is the shipping method?
A7: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement .
A1: We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A2: We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
A3: We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
A4: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
A5: The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
Q6: What’s package, will it protect the products?
A6: Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for
seaworthy transportation.
Q7: How is the shipping method?
A7: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement .
