Quick Details
-
Brand Name:
-
SMARTS
-
Model Number:
-
SMT-012-015VWP
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
0.5A~5A
-
outer case:
-
plastic cover
-
waterproof rate:
-
IP44
-
working mode:
-
constant voltage type
-
efficiency:
-
> 83%
-
output:
-
single output
-
protection:
-
over load, heat , short circuit protection
-
warranty:
-
2 years warranty
-
certificate:
-
CE EMC LVD RoHS approval
-
Item:
-
mini led driver
Quick Details
-
Input Voltage:
-
100~265vac
-
Output Voltage:
-
12V & 24V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SMARTS
-
Model Number:
-
SMT-012-015VWP
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
0.5A~5A
-
outer case:
-
plastic cover
-
waterproof rate:
-
IP44
-
working mode:
-
constant voltage type
-
efficiency:
-
> 83%
-
output:
-
single output
-
protection:
-
over load, heat , short circuit protection
-
warranty:
-
2 years warranty
-
certificate:
-
CE EMC LVD RoHS approval
-
Item:
-
mini led driver

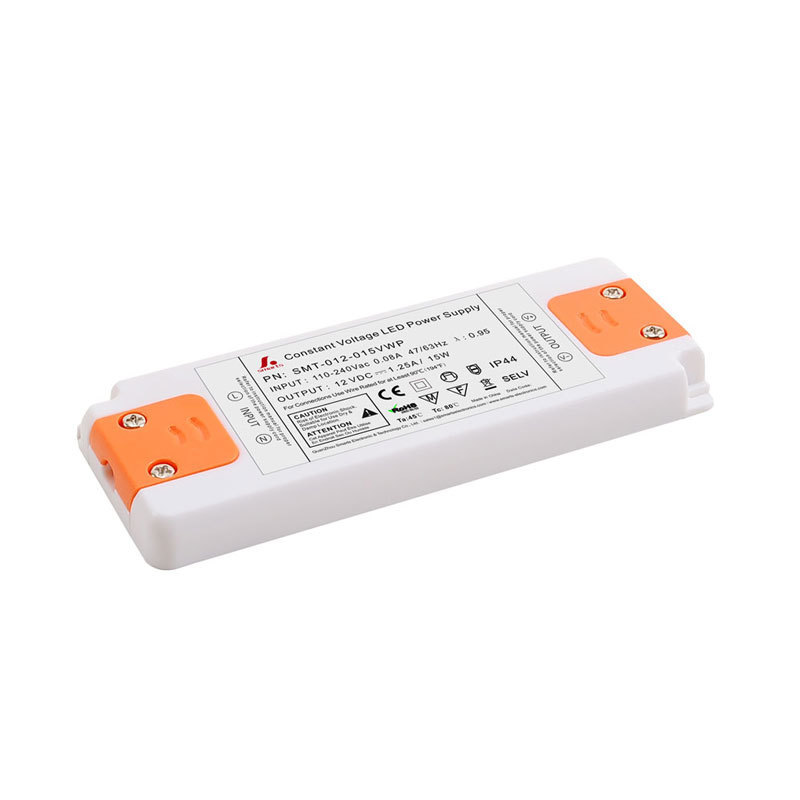

SMARTS POWER CE ip44 12v mini led driver 15w 20w 30w 42w 50w 60w
ultra silim led driver is a compact solution for powering LED’s. Typically smaller, lighter and less expensive.
The Slim
led driver
is CE (EMC + LVD) for use in Europe and covered by 2 year manufacturer limited warranty. Auto reset protection in case of lighting overload, open-circuit, short-circuit, over-temperature or over voltage. Suitable for LED lighting and sign lighting applications.
| 98.5*45.8*12 | 127.5*50*12 | 160*57.6*19 |
Accessories
Product Description
| MODEL | SMT-012-015VWP | SMT-024-015VWP | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 1.25Amp | 0.63Amp | |
| VOLTAGE RANGE | |||
| RATED POWER | 15Watt | 15Watt | |
| RIPPLE&NOISE(max) | 300mV | 300mV | |
| VOLTAGE TOLERANCE | ±5% | ±5% | |
| LINE REGULATION | ±1% | ±1% | |
| LOAD REGULATION | ±2% | ±2% | |
| INPUT | VOLTAGE RANGE | 200-240VAC | 200-240VAC |
| FREQUENCY RANGE | 47-63Hz | 47-63Hz | |
| POWER FACTOR(Typ.) | |||
| EFFICIENCY(Typ.) | >83% | >83% | |
| AC CURRENT(Typ.) | 0.18A/220VAC | ||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |
| OVER CURRENT | overload protected@145-160% above peak rating | ||
| OVER LOAD | 2.8A | 1.2A | |
| ENVIRONMENT | WORKING TEMP. | -10~+50℃ (Refer to output load derating curve) | |
| WORKING HUMIDITY | 20~99% RH non-condensing | ||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;CE /ROHS approval | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||
Hot Products
| Hot Products |
What kind of LED Driver/Power Supply Smarts Electronics do?
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
