Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K/4000K/5000K/6000K±8%
-
Support Dimmer:
-
Support 0-10 dimming
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
2.85
-
Input Voltage(V):
-
100-305VAC
-
Lamp Luminous Flux(lm):
-
17500Lm±5%
-
Working Temperature(℃):
-
-25 - 55
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tobole
-
Model Number:
-
TP-UFO300A4-150W1X
-
Product Name:
-

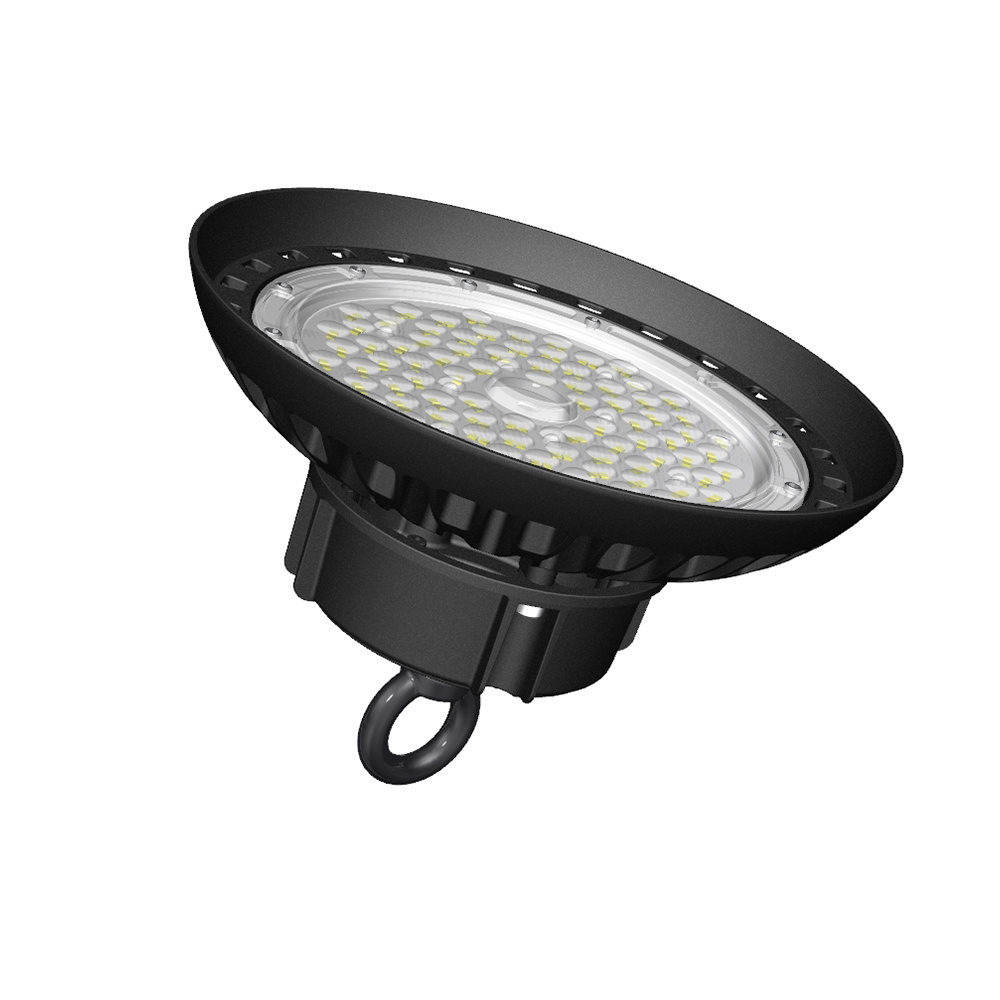

UFO LED High Bay Light
-
Power:
-
100W/150W/200W/240W
-
Keyword:
-
UFO Industrial High Bay Lighting
-
Type:
-
LED Hi-Bay Light
-
Material:
-
Aluminum+tempered Glass
-
IP Grade:
-
IP65 Wateproof
-
Beam angle:
-
110
-
LED Chip:
-
SMD2835
-
Item name:
-
Highlight Led Highbay Light
-
Power Factor:
-
PF>0.98
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
180
-
Lamp Body Material:
-
Aluminum+Glass cover
-
Application:
-
Warehouse
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K/4000K/5000K/6000K±8%
-
Support Dimmer:
-
Support 0-10 dimming
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
2.85
-
Input Voltage(V):
-
100-305VAC
-
Lamp Luminous Flux(lm):
-
17500Lm±5%
-
Working Temperature(℃):
-
-25 - 55
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tobole
-
Model Number:
-
TP-UFO300A4-150W1X
-
Product Name:
-
UFO LED High Bay Light
-
Power:
-
100W/150W/200W/240W
-
Keyword:
-
UFO Industrial High Bay Lighting
-
Type:
-
LED Hi-Bay Light
-
Material:
-
Aluminum+tempered Glass
-
IP Grade:
-
IP65 Wateproof
-
Beam angle:
-
110
-
LED Chip:
-
SMD2835
-
Item name:
-
Highlight Led Highbay Light
-
Power Factor:
-
PF>0.98
Product Description
Specification
|
item
|
value
|
|
Color Temperature(CCT)
|
3000K/4000K/5000K/6000K±8%
|
|
Lamp Luminous Efficiency(lm/w)
|
180
|
|
Color Rendering Index(Ra)
|
70
|
|
Support Dimmer
|
Support 0-10 dimming
|
|
Lighting solutions service
|
Lighting and circuitry design, Project Installation
|
|
Lifespan (hours)
|
100000
|
|
Working Time (hours)
|
100000
|
|
Product Weight（kg）
|
2.85
|
|
Input Voltage(V)
|
100-305VAC
|
|
Lamp Luminous Flux(lm)
|
17500Lm±5%
|
|
CRI (Ra>)
|
70
|
|
Working Temperature(℃)
|
-25-55 degree
|
|
Working Lifetime(Hour)
|
100000
|
|
Lamp Body Material
|
Aluminum+Glass cover
|
|
IP Rating
|
IP65
|
|
Certification
|
ce, EMC, ETL, FCC, LVD, RoHS, Saa, SASO, UL
|
|
Place of Origin
|
China
|
|
Brand Name
|
Tobole
|
|
Model Number
|
TP-UFO300A4-150W1X
|
|
Application
|
Warehouse
|
|
Light Source
|
LED 2835
|
|
Warranty(Year)
|
5-Year
|
|
Product Name
|
UFO LED High Bay Light
|
|
Power
|
100W/150W/200W/240W
|
|
Keyword
|
UFO Industrial High Bay Lighting
|
|
Type
|
LED Hi-Bay Light
|
|
Material
|
Aluminum+tempered Glass
|
|
IP Grade
|
IP65 Wateproof
|
|
Beam angle
|
110
|
|
LED Chip
|
SMD2835
|
|
Item name
|
Highlight Led Highbay Light
|
|
Power Factor
|
PF>0.98
|
Features:
Input Voltage:100-305VAC（50Hz/60Hz）
High quality 2835 LED chip，
High quality 2835 LED chip，
Uniformly light,Flicker free,High Output 175LM/W
Sosen certified driver,4KV Surge protection, 0-10V Dimmable
High PF>0.98 ,More energy saving
High efficient thermal conductivity aviation
aluminum,Nice appearance
Suitable for parking lot,hotel,shopping mall,factory,
IP65 Grade,Comply with CE and RoHS Standard
5 years warranty
Sosen certified driver,4KV Surge protection, 0-10V Dimmable
High PF>0.98 ,More energy saving
High efficient thermal conductivity aviation
aluminum,Nice appearance
Suitable for parking lot,hotel,shopping mall,factory,
IP65 Grade,Comply with CE and RoHS Standard
5 years warranty
|
Circular Power supply + Glass Lampshade
|
|
|
|
|
||||
|
Square Power supply + Lens Lampshade
|
|
|
|
|
||||
|
Luminaire Photometric Test Report
|
|
|
|
|
||||
|
CU and Luminaire Budgetary Estimate Diagram
|
|
|
|
|
||||
|
Luminaire Budgetary Estimate Diagram
|
|
|
|
|
||||
