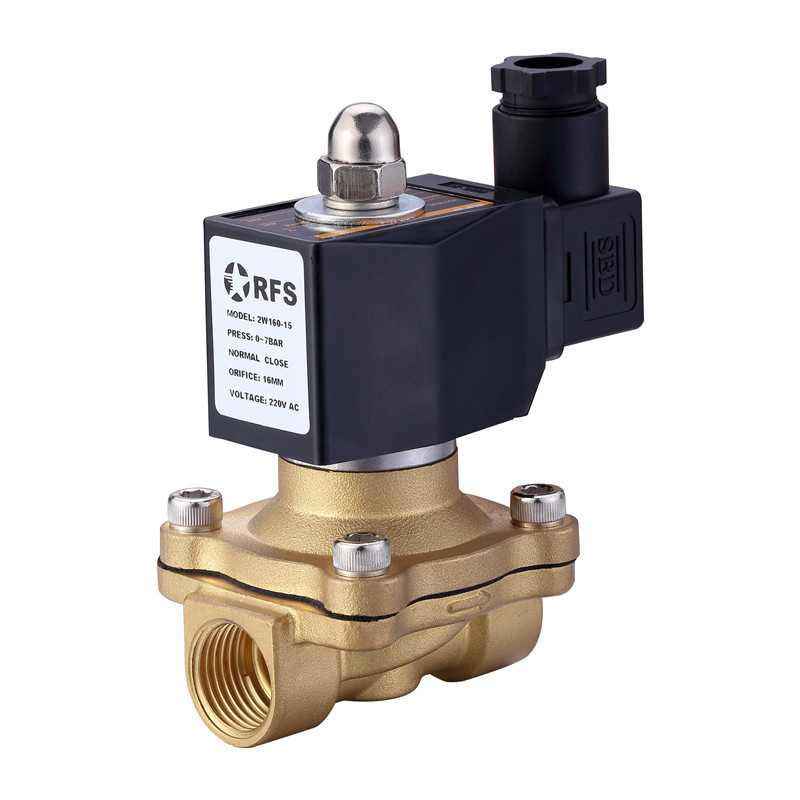

Quick Details
-
Model Number:
-
2W160-15
-
Brand Name:
-
RFS
-
Standard or Nonstandard:
-
Standard
-
Thread:
-
G ,NPT ,PT
-
Coil:
-
DIN & Leading Wire
-
Working Pressure:
-
0-7BAR
-
Voltage:
-
220VAC,110VAC ,12VDC ,24VDC etc
-
Seal:
-
NBR EPDM
-
Orifice:
-
16mm
-
CV value:
-
4.8
-
Connection Ports:
-
1/2''
-
Package:
-
One pc packed in one box
-
Certification:
-
CE
Quick Details
-
Port Size:
-
1/2"
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2W160-15
-
Brand Name:
-
RFS
-
Standard or Nonstandard:
-
Standard
-
Thread:
-
G ,NPT ,PT
-
Coil:
-
DIN & Leading Wire
-
Working Pressure:
-
0-7BAR
-
Voltage:
-
220VAC,110VAC ,12VDC ,24VDC etc
-
Seal:
-
NBR EPDM
-
Orifice:
-
16mm
-
CV value:
-
4.8
-
Connection Ports:
-
1/2''
-
Package:
-
One pc packed in one box
-
Certification:
-
CE
Product Description
|
Model
|
Media
|
Working Type
|
Orifice(mm)
|
Connection Ports
|
Working Pressure(Mpa)
|
Max Pressure(Mpa)
|
|
Seal Material
|
Voltage
|
|
|
|
|
|
|
|
|
Body
|
|
|
|
|
|
|
|
|
|
|
material
|
|
|
|
2W160-10
|
Air Water Oil
|
Direct Action
|
16
|
3/8''
|
0 - 0.7
|
1
|
Brass
SS304 SS316 |
NBR VITON EPDM
|
DC12-24V
AC110-220V |
|
2W160-15
|
|
|
16
|
1/2''
|
|
|
|
|
|
|
2W200-20
|
|
|
20
|
3/4''
|
|
|
|
|
|
|
2W250-25
|
|
|
25
|
1''
|
|
|
|
|
|
|
2W350-35
|
|
|
35
|
1-1/4''
|
|
|
|
|
|
|
2W400-40
|
|
|
40
|
1-1/2''
|
|
|
|
|
|
|
2W500-50
|
|
|
50
|
2''
|
|
|
|
|
|
* Direct Acting ,Diaphragm Structure ,Can be Work At Zero Pressure
* Plate Diaphragm ,high reliablity ,long cycle life
* Plastic Encapsulating Coil ,Be able to use under Numerous Environment
* Different Type coil can be choosed ,DIN and Lead wire coil
* Plate Diaphragm ,high reliablity ,long cycle life
* Plastic Encapsulating Coil ,Be able to use under Numerous Environment
* Different Type coil can be choosed ,DIN and Lead wire coil
