Quick Details
-
Scan Speed:
-
70MS
-
Brand Name:
-
Vguang
-
Place of Origin:
-
Beijing, China
-
Communication interface:
-
USB, RS232
-
Weight:
-
250.5g
-
Image Sensor:
-
640*480 CMOS
-
Material:
-
ABS+Tempered glass
-
Reading distance:
-
0~11cm
-
Reading speed:
-
70ms per time
-
Working voltage:
-
DC 5V~12V
-
Working current:
-
193.1mA (Typical value 5V)
-
Scan code feedback:
-
Buzzer, reading window led ,red and green light indication
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Optical Resolution:
-
640*480
-
Scan Speed:
-
70MS
-
Brand Name:
-
Vguang
-
Place of Origin:
-
Beijing, China
-
Communication interface:
-
USB, RS232
-
Weight:
-
250.5g
-
Image Sensor:
-
640*480 CMOS
-
Material:
-
ABS+Tempered glass
-
Reading distance:
-
0~11cm
-
Reading speed:
-
70ms per time
-
Working voltage:
-
DC 5V~12V
-
Working current:
-
193.1mA (Typical value 5V)
-
Scan code feedback:
-
Buzzer, reading window led ,red and green light indication

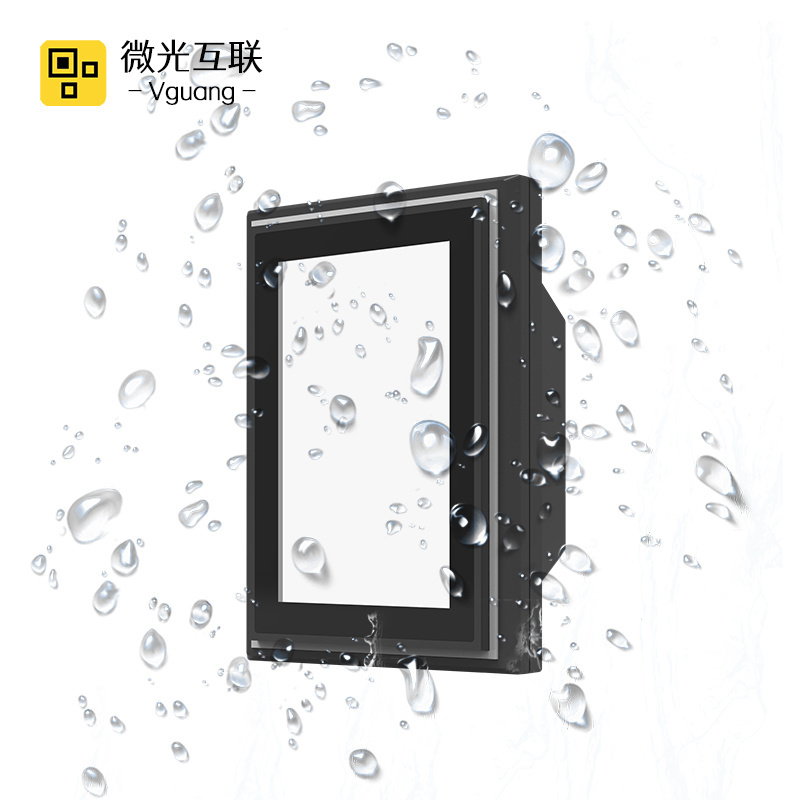

Vguang JL7066 IP66 Waterproof Scanner Barcode QR Code Reader 2D Scanner
JL7066 provides a self-contained 1D and 2D barcode scanning solution, whether decoding mobile phone screens or paper. It offers many differentiating features that simplify installation (e.g., cable connector compatibility and more mounting options) and enhance performance (e.g., Wide Angle and Megapixel optics options, wider choice of non-laser aimers and illumination, enhanced scan time and print contrast, and higher operating temperature range). Its unique design simplifies installation and deployment for a wide range of kiosk applications. Potential applications include medical diagnostic and analytical equipment; rail, airport, resort, event, car park and border control access control kiosks; lottery terminals/ticket checkers; e-voting machines; retail point-of-sale self-checkout equipment; smart lockers; banking ATMs; and in-vehicle ticket validators used in buses, subways and trains. 1. Built-in installation, after installation, the whole surface is flush without gap and surface waterproof.
2. Card frequency: 13.56MHz contactless IC card, M1 sensor card, NFC mobile phone and ID card (physical card number), but also support scanning to identify 1D code, 2D code, PDF417.(mobile phone screen code & paper code)
3. Built-in white LED light, does not hurt the eyes, in the dark environment of paper and mobile phone recognition is also very sensitive.
4. Strong recognition ability. Powerful algorithms easily cope with defaced codes and high-density QR codes. No need to deliberately point the QR code at the lens, can be identified within 300 milliseconds. 5. It is suitable for outdoor waterproof gate machine, vending machine, self-service machine, etc., so that the overall more beautiful. 6. Provide configuration software that allows users to modify parameters such as line breaks, baud rates, prefixes, and suffixes for the device.
|
Specification parameters of JL7066 series |
|
|
Working Voltage |
4.7v-15v |
|
Reading distance |
0-11cm |
|
Reading speed |
90ms per time |
|
Recognition window size |
88*57mm |
|
Protection class |
IP66 |
|
Working current |
210mA(5V)or 80mA(12V) |
|
Prompt mode |
buzzer,White light fill light,Green light and red light prompt |
|
Reading angle |
Tilt± 40 degree,Deflection ± 30 degree,Rotate ± 360 degree |
|
FOV |
Horizontal:86 degree,Vertical: 62 degree |
|
Symbologies |
Two-dimensional:QR Code,Data Matrix,etc. One-dimensional:EAN-8,RSS_14,CODE_39,CODE_93,CODE_128,ITF,CODABAR,inverse code,image code,etc. |
|
Support interfaces |
RS232(9.6-115.2kbps),USB1.1(HID-KBW,HID-POS),Custom HID(Added USB development interface, High speed transmission) |
|
Compatible system |
Windows(XP,7/8/10),Android,Linux,Mac,etc. |
|
Applied environment |
Temp-20~70℃ ,Humidity 0 % ~95 % ,Static Protection : EN 61000-4-2,Ambient light 0~80000Lux,storage temperature-40~80 ℃ |
|
Size |
122*89*59.5mm |
|
Weight |
250.5g |
|
Resolution |
640*480(300,000 pixels) |
|
Hole Size |
111*76mm |
|
Material |
PC&ABS |
