Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE RoHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
xindun
-
Model Number:
-
XD-107/207/307 solar kits
-
Load Power (W):
-
1000w-500w
-
Output Voltage (V):
-
5v 12v 110v 120v 220v
-
Output Frequency:
-
50hz/60hz
-
Work Time (h):
-
1-24hours
-
Battery:
-
Gel / Lifepo4 Lithium / Lead acid Battery
-
Product name:
-
Solar Power Lighting Kit 30W solar kits for homevan/camper
-
Output wave:
-
Pure sine wave output
-
Color:
-
white+black or customized solar kits
-
Usage:
-
Solar kits use for lighting,fan,t etc,
-
Keyword:
-
solar lighting power kit 30w solar kits
-
Type:
-
Mini Portable Solar System
-
Controller:
-
MPPT/PWM Solar Charge Controller
-
Protection:
-
Short Circuit/Over load/Over voltage etc.
-
Material:
-
Aluminum Alloy
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE RoHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
xindun
-
Model Number:
-
XD-107/207/307 solar kits
-
Load Power (W):
-
1000w-500w
-
Output Voltage (V):
-
5v 12v 110v 120v 220v
-
Output Frequency:
-
50hz/60hz
-
Work Time (h):
-
1-24hours
-
Battery:
-
Gel / Lifepo4 Lithium / Lead acid Battery
-
Product name:
-
Solar Power Lighting Kit 30W solar kits for homevan/camper
-
Output wave:
-
Pure sine wave output
-
Color:
-
white+black or customized solar kits
-
Usage:
-
Solar kits use for lighting,fan,t etc,
-
Keyword:
-
solar lighting power kit 30w solar kits
-
Type:
-
Mini Portable Solar System
-
Controller:
-
MPPT/PWM Solar Charge Controller
-
Protection:
-
Short Circuit/Over load/Over voltage etc.
-
Material:
-
Aluminum Alloy

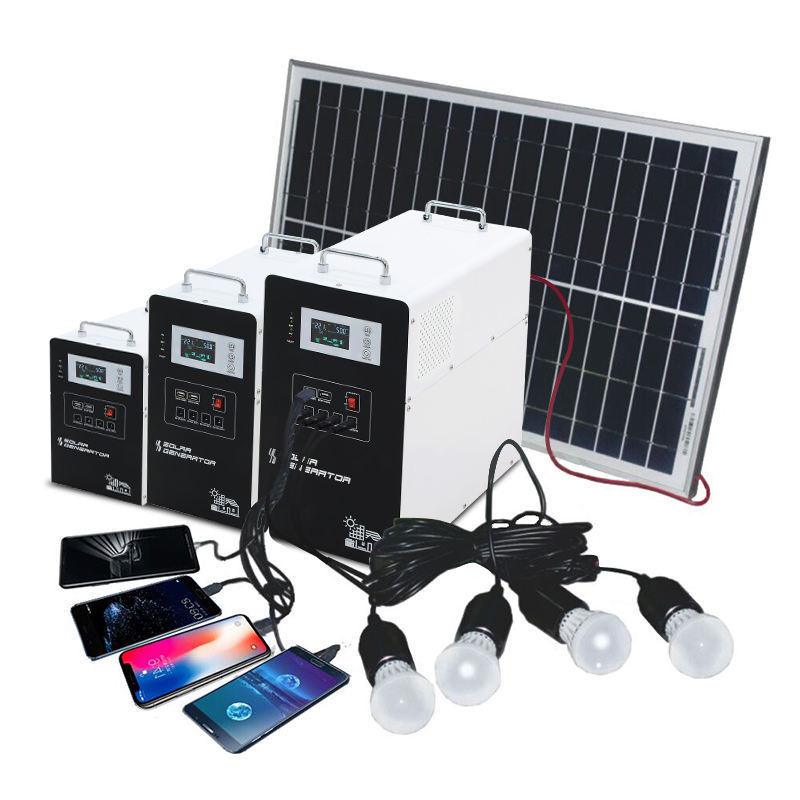

1. Portable mini solar kit power 1000W 200W 300W 500W.
2. Integrated Chassis: 5V/12V/110V/120V/220V output.
3. Suitable for charging all types of mobile phones
4. Solar independent power supply.
5. High photoelectric conversion efficiency.
6. Built-in maintenance-free battery, safe and reliable.
7. Optional AC adapter for charging battery.
8. Multi-protections(charging/discharging and etc).
| Specification | ||||
| Model : ESS | 301P | 501P | 102P | |
| Capacity | Rated power | 300W | 500W | 1000W |
| Peak power(20ms) | 900VA | 1500VA | 3000VA | |
| Input | Stardard battery voltage | 12VDC | ||
| AC input voltage range | 73~138VAC(110VAC)/83~148VAC(120VAC)/145~275VAC(220VAC)/ 155~285VAC(230VAC)/165~295VAC(240VAC) | |||
| AC input frequency range | 45Hz~55Hz(50Hz);55Hz~65Hz(60Hz) | |||
| Output | Conversion efficiency | ≥85%(Battery mode); >99%(AC mode) | ||
| AC Output voltage | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode) | |||
| AC Output frequency | 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) | |||
| AC Output waveform | Pure Sine Wave | |||
| THD | ≤3%(Linear load) | |||
| DC Output voltage | 4*DC 12V; 2*USB(5V) | |||
| AC charger | AC charging current | 0~30A(Depends on model) | ||
| AC charging method | Three-stage(constant current, constant voltage, floating charge) | |||
| solar charger (Optional) | Charging mode | PWM | ||
|
Max PV input voltage(Voc)
(At the lowest temperature) |
50V | |||
| PV input voltage range | 15V~44V | |||
| Charge & discharge current | 20A | 40A | ||
| Max PV input power | 280W | 560W | ||
| Inbuilt battery | Capacity | 1*50AH | 1*100AH | |
| Battery size(LxWxH)/pcs | 229*138*210(228) | 407*174*210(240) | ||
| Other | Transfer time | ≤4ms | ||
| Protection | with over-voltage, low-voltage, overload, short circuit, high tempreature protections | |||
| Display | LCD & LED | |||
| Cooling way | Cooling fan in intelligent control | |||
| Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring)(Models below 1000W (including 1000W) are not supported) | |||
|
Working mode
(selectable) |
d1 | AC priority mode | ||
| d2 | ECO mode | |||
| d3 | Solar priority mode | |||
|
Work
environment |
Operating temperature | -10℃~40℃ | ||
| Storage temperature | -15℃~60℃ | |||
| Elevation | 2000m(More than derating) | |||
| Humidity | 0%~95% ,No condensation | |||
| Physical | Dimention L x W x H(mm) | 358*192*390 | 488*232*450 | |
| Net weight(kg)(without battery) | 8 | 10 | 16 | |
| Packing | Dimention L x W x H(mm) | 400*252*500 | 550*295*625 | |
| Gross weight(kg)(without battery) | 11 | 13 | 21 | |
| Quantity/CTN | 1pcs per wooden case | |||
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
