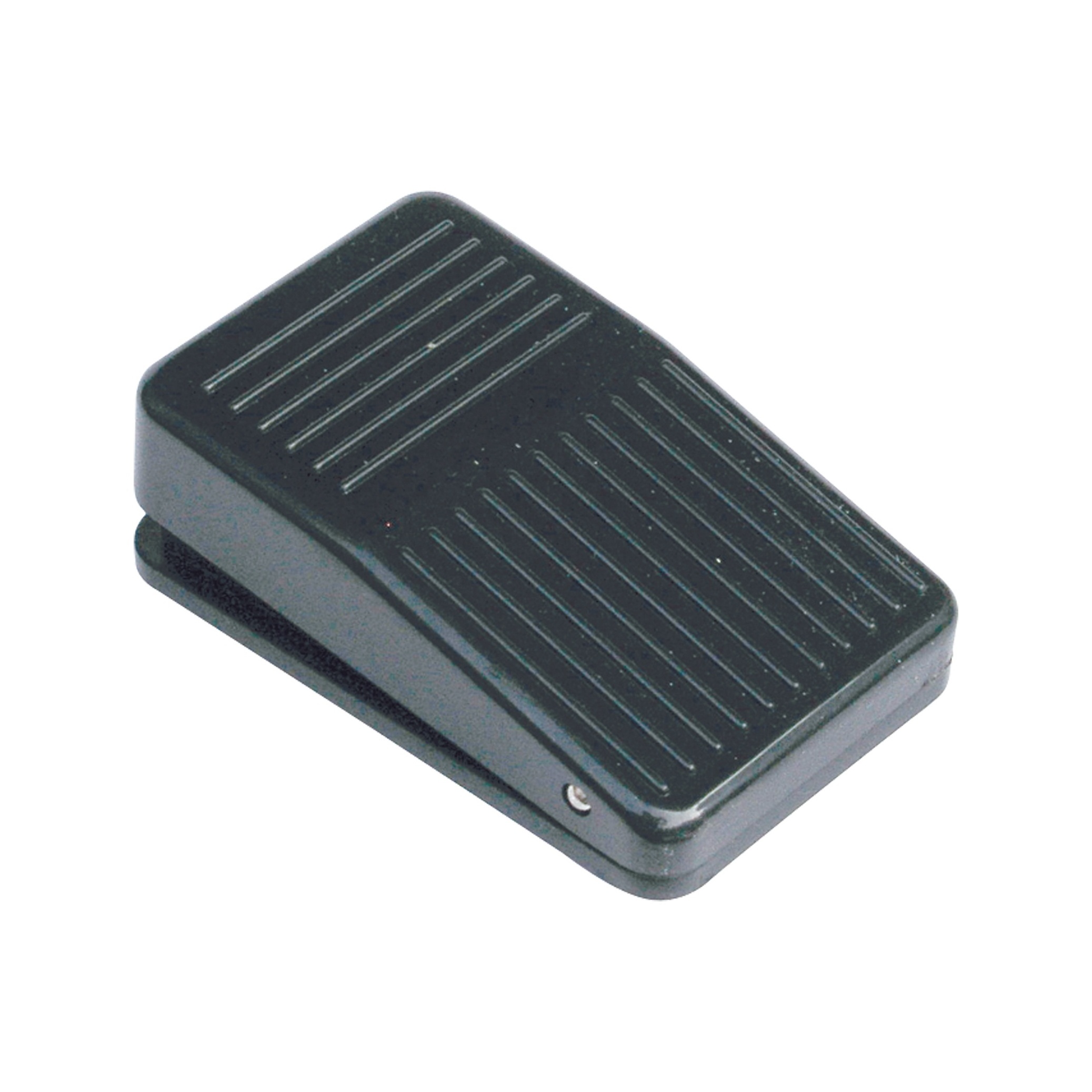

CNTD CFS-01-2M Momentary Industrial Medical Foot Switch Foot Controller Pedal Switch
CNTD CFS-01-2M Momentary Industrial Medical Foot Switch Foot Controller Pedal Switch
CNTD CFS-01-2M Momentary Industrial Medical Foot Switch Foot Controller Pedal Switch
CNTD CFS-01-2M Momentary Industrial Medical Foot Switch Foot Controller Pedal Switch
CNTD CFS-01-2M Momentary Industrial Medical Foot Switch Foot Controller Pedal Switch
CNTD CFS-01-2M Momentary Industrial Medical Foot Switch Foot Controller Pedal Switch
CNTD CFS-01-2M Momentary Industrial Medical Foot Switch Foot Controller Pedal Switch
CNTD CFS-01-2M Momentary Industrial Medical Foot Switch Foot Controller Pedal Switch

CNTD CFS-01-2M Momentary Industrial Medical Foot Switch Foot Controller Pedal Switch

FOB Reference Price: Get Latest Price
≥100 Pieces
US $1.82
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
CNTD
Model Number:
CFS-01(2M)
Max. Current:
10A
Product Name:
Foot Switch
Contact Form:
NO, NC, NO+NC
Rated Current:
10A
Rated Voltage:
250VAC
Micro Switch inside:
CMV-100D
Cable type/ length:
0.5mm²,3C/1 meter~3 meter
Cantact:
1A1B
Action Force:
0.7kg
Shell Material:
Plastic
Certification:
TUV, ISO9001, CCC, CE

Quick Details

Whether the smart:
NO
Max. Voltage:
250VAC
Place of Origin:
Zhejiang, China
Brand Name:
CNTD
Model Number:
CFS-01(2M)
Max. Current:
10A
Product Name:
Foot Switch
Contact Form:
NO, NC, NO+NC
Rated Current:
10A
Rated Voltage:
250VAC
Micro Switch inside:
CMV-100D
Cable type/ length:
0.5mm²,3C/1 meter~3 meter
Cantact:
1A1B
Action Force:
0.7kg
Shell Material:
Plastic
Certification:
TUV, ISO9001, CCC, CE

Features

Plastic shell and metal shell are for selection

Contact Form

Specifications

Designation
Model
Rating
Type of switch enclosed & contact arrangement
Cable type / length
Cantact
Action force
Material of Rind



Standard type
Momentary Action
CFS-101
10A 250VAC
CMV-100D
0.75mm²,3C/0.5 meter,
1meter~3meter
1A1B
1.2kg


Plastic
CFS-102
15A 250VAC
CM-1704
0.75mm²,3C/1 meter,
1.5meter~2meter
1A1B
1.1kg
CFS-2
10A
250VAC
CMV-100D
0.5mm²,
3C/1meter~3meter
1A1B
1.1kg



Aluminum cast
CFS-3
10A 250VAC
CMV-100D
0.75mm²,3C/0.5 meter,
1meter~3meter
1A1B
1.2kg
CFS-3S
15A 250VAC
CM-1704
0.75mm²,3C/1 meter,
1meter~3meter
1A1B
1.1kg



Alternate action
CFS-105
6A 250VAC
CMVS-D
0.75mm²,3C/1 meter,
1meter~2meter




1A1B
2kg
Plastic
CFS-305
6A 250VAC
CMVS-D



Accessory: Cable gland (No cable)
3.1kg


Aluminum cast
CFS-405
6A 250VAC
CMVS-D
3.1kg
CFS-505
6A 250VAC
CMVS-D
3.1kg


Mini foot switch
Front end push
CFS-201
10A 250VAC
CMV-100D
0.5mm²,
3C/1meter~3meter
1A1B
0.7kg


Plastic
CFS-01
10A 250VAC
CMV-100D
0.5mm²,
3C/1meter~3meter
1A1B
0.7kg
CFS-1
10A 250VAC
CMV-100D
0.5mm²,
3C/1meter~3meter
1A1B
0.9kg
Iron




Protective guard foot switch
CFS-302
15A 250VAC
CM-1704













Accessory: Cable gland
(No cable)
1A1B
3.2kg













Aluminum cast
CFS-304
15A 250VAC
CM-1704 * 2
2A2B
3.2kg
CFS-502
15A 250VAC
CM-1704
1A1B
3.2kg
CFS-504
15A 250VAC
CM-1704 * 2
2A2B
3.2kg
CFS-602
15A 250VAC
Button spring type
2*1A1B
2.8kg
CFS-702
15A 250VAC
CM-1704
2*1A1B
3.2kg


Large type
CFS-402
15A 250VAC
CM-1704
1A1B
3.2kg
CFS-404
15A 250VAC
CM-1704 * 2
2A2B
3.2kg
CFS-802
15A 250VAC
CM-1704
2*1A1B
3.2kg
How and how long can I get a sample to check your quality?can I expect to get the sample? After price confirmation, you can require for samples to check our quality. Then after you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-5 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account. Can you do the design for us? Yes. Send us high resolution images, your Logo and text and tell us how you would like to arrange them, We will send you finished files for confirmation. What about the lead time for mass production? Honestly, it depends on the order quantity and the season you place the order. Generally speaking, We suggest that you start inquiry two months before the date you would like to get the products at your country. Can I have a visit to your factory before the order? Welcome! Our factory address: A NO. 258. Wei Eleven Road, Yueqing Economic Development Zone, Yueqing City, Zhejiang Province, P.R. China What's your shipment method? We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method. How to order our product ? 1).Please tell us the model and quantity and other request you need. 2).We make the PI for you. 3).After you confirm the PI, we arrange the order for you after receiving your payment. 4).After the goods finished, we send the goods out to you and tell you the tracking number. 5).We will track your goods until you receive the goods. If i want to release order, what's the payment method you accept ? A: We accept T/T, Paypal, L/C,etc.
