Roof,Ceiling,Wall,Floor,Attic,Livestock Shelters,Basement,Factory buildings,Duct wrappings,Container liner,Sun-stop cover and vehicles.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCGS
-
Model Number:
-
XCGS-RD24032903N
-
Type:
-
Aluminum Insulation Material
-
Material:
-
Al+Bubble or Foam+Al
-
Item:
-
Radiator Insulation Foil Materials
-
Material Structure:
-
Alu +Bubble or Foam+Alu
-
Thickness:
-
can customize
-
Feature:
-
Eco-Friendly,Thermal insulation
-
Color:
-
silvery or customize
-
Size:
-
can customize
-
Package:
-
PO bag or customize
-
reflectivity::
-
96%-97%
-
Fire standards:
-
can customize
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCGS
-
Model Number:
-
XCGS-RD24032903N
-
Type:
-
Aluminum Insulation Material
-
Material:
-
Al+Bubble or Foam+Al
-
Item:
-
Radiator Insulation Foil Materials
-
Material Structure:
-
Alu +Bubble or Foam+Alu
-
Thickness:
-
can customize
-
Feature:
-
Eco-Friendly,Thermal insulation
-
Color:
-
silvery or customize
-
Size:
-
can customize
-
Package:
-
PO bag or customize
-
reflectivity::
-
96%-97%
-
Fire standards:
-
can customize
Products Description

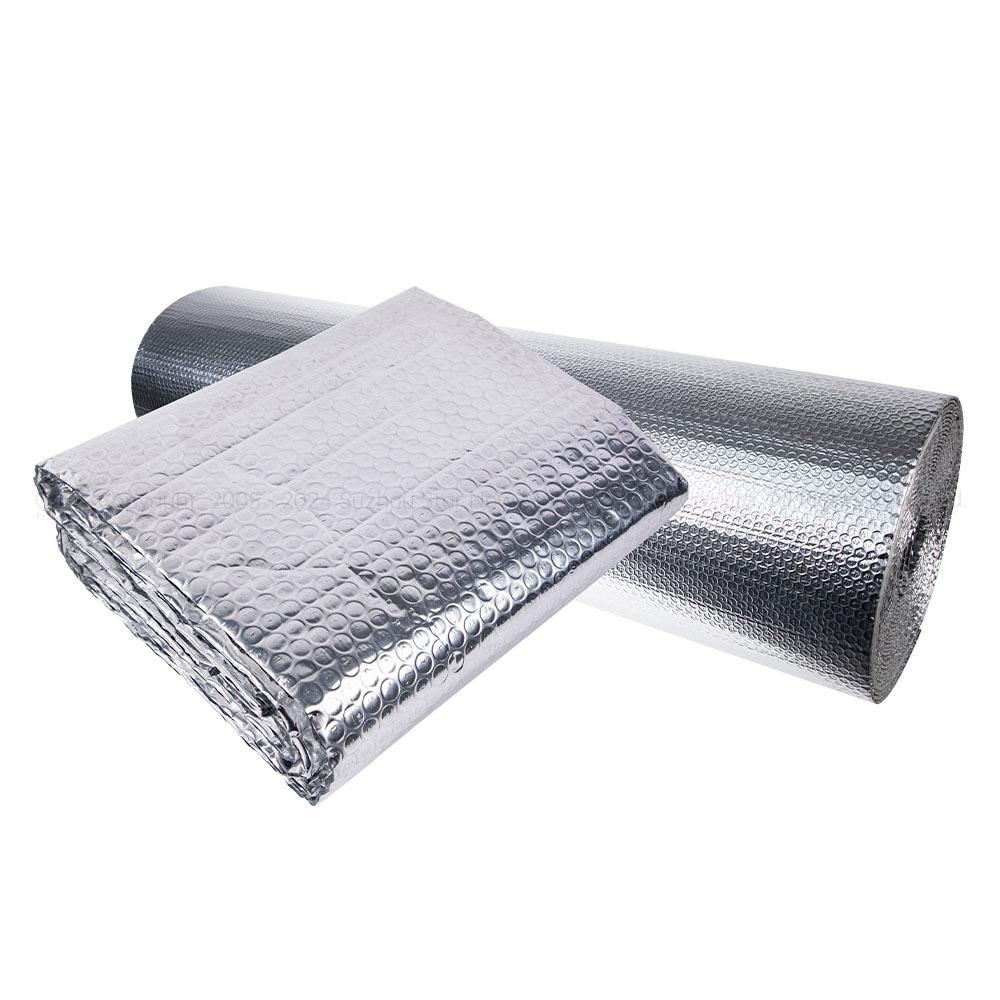

The produc ( Air cell insulation/reflective aluminium bubble foil insulation )t consists of two layers of aluminum foil with
plastic bubble laminated between the aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture, air currents and vapors.
plastic bubble laminated between the aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture, air currents and vapors.
|
Item
|
Heat insulation material/reflective aluminium bubble foil insulation
|
|
|
|
|||
|
Main Structure
|
1) Al / bubble / Al (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm)
2) Al / bubble + bubble / Al (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 3) Al / bubble / white PE anti-flaming sheet (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 4) Al / white anti-flaming bubble / Aluminum with blue color (bubble: ¢ : 20mm, H: 7mm) 5) AL / white anti flaming bubble / woven cloth /AL ( bubble: ¢ : 20mm, H: 7mm ). Normal roll size: 1.2m x 40m / roll, various lengths available upon requests |
|
|
|
|||
|
Thickness
|
4mm or customzied
|
|
|
|
|||
|
Roll Size
|
1.2*40m per roll
|
|
|
|
|||
|
Reflectivity
|
97%
|
|
|
|
|||
|
Bubble Size
|
10*2.5/10*3/10*4/10*5/20*7/25*8/25*10
|
|
|
|
|||
|
Logo Printing
|
OEM Available
|
|
|
|
|||
Details Images
Related Products
Thermal insulation materials products:
Bubble foil insulation, foam foil insulation, woven foil insulation, FSK , insulated box liner, thermal pallet cover etc
Application & Installation
Application
Installation Methods
1.Purchase approximately 10% more for overlapping and to provide the proper air gap between the purlins
2.Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin.
3.Secure the bubble foil to the framing members with furring strips. Use a drill equipped with a screwdriver bit to drive the screws into the framing members.
4.Cover the seams of the bubble insulation with foil tape.
