Quick Details
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
8000 KG
-
Coating Way:
-
Extrusion Slot Die Coating
-
Coating Weight:
-
20-100g/㎡
-
Coating Precision:
-
±5%
-
Coating Speed:
-
10-50m/min
-
Coating width:
-
500-3000mm
-
Unwinding/Rewinding Way:
-
Single Position
-
Certification:
-
CE Certificate
Quick Details
-
Voltage:
-
380V,415V,440V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SanRenXing
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
8000 KG
-
Coating Way:
-
Extrusion Slot Die Coating
-
Coating Weight:
-
20-100g/㎡
-
Coating Precision:
-
±5%
-
Coating Speed:
-
10-50m/min
-
Coating width:
-
500-3000mm
-
Unwinding/Rewinding Way:
-
Single Position
-
Certification:
-
CE Certificate

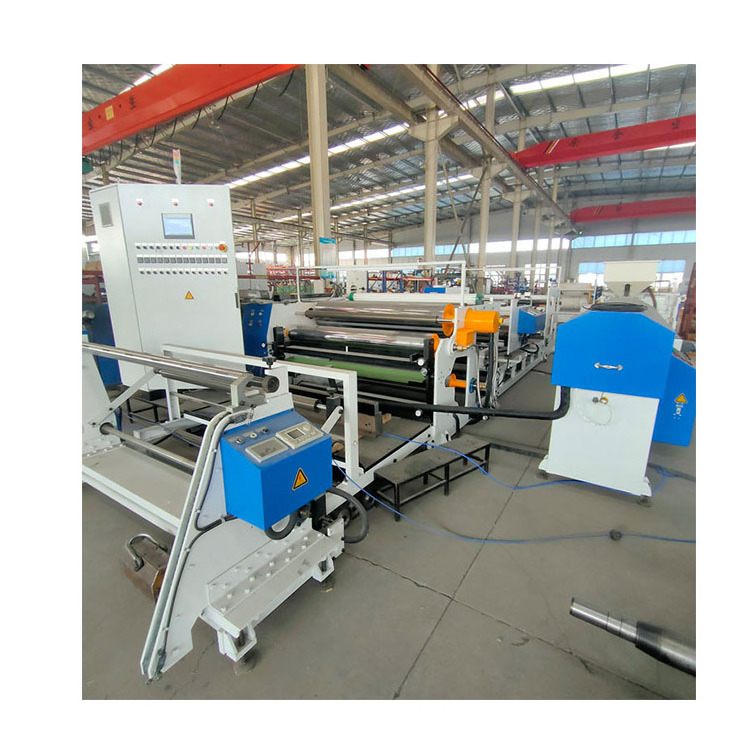

Extruder Coating Machine ce Approved Hot Melt Glue Coating Machine Coating Machine for Textile
* Above is standard parameter, we can customize machine according to customer's requirement.
* Please confirm these question before:
Coating width, coating quantity, coating speed, what material the equipment produce.
Application & Features:
Mainly use in producing EVA kraft heat-seal tape, EVA picture mounting membrane, wall covering hot iron membrane etc.
The use of slot die coating makes the coating weight and overall distribution more uniform, increases the production line speed, and minimizes volatile emissions, coating pollution, and raw material waste. This equipment unwinding and rewinding all single position, more economical.
Machine Parameters:
| Coating Way | Extrusion Slot Die Coating |
| Coating Weight | 20-100g |
| Coating Speed | 10-50m/min |
| Coating Width | 500-3000mm |
| Coating Presition | ±5% |
| Unwinding/Rewinding Way | Single Position |
| Glue Type | EVA |
Hot Melt Advantage:
1. It is widely used in packaging, automobiles, clothing, footwear, electronics, waterproofing and other industries.
2. It is 100% solids, contains no solvents, no pollution, fast production speed, high efficiency, low cost, low energy consumption, small equipment footprint, etc. advantage.
3. It has become a development trend with huge market prospects.
Main Characteristic:
1. High precision alloy steel head and high precision metering gear pump.
2. All active rollers and passive rollers are adjusted by famous web guider.
3. Intelligent PID temperature control system, temperature error controlled at 1℃
4. Auto lift for unwinding raw material roll.
5. PLC control system for the whole machine with precision control coating speed and glue amount. Use famous brand Touch Screen.
6. Automatic clloing system,makes sure the glue to be cooled and dried quickly.
7. Automatic glue compensation system can make machine work the same quantity of glue when in low or high speed.
8. Make sure the machine runs stably, laminating materials no- crinkling and low noise which suits the international standard
Our service:
1. 24 hours online service
2. Before-sale and after-sale service, overseas engineer service is available
3. All products have been strictly quality test in our factory before packing
4. Free technical training, until customers can operate independently and qualified production produced.
5. 12 months warranty and life time technical support service.
6. Long-term providing quick-wear parts.
