Quick Details
-
Brand Name:
-
MZC
-
handle color:
-
blue
Quick Details
-
Port Size:
-
1/4"-4"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Q11F
-
Brand Name:
-
MZC
-
handle color:
-
blue

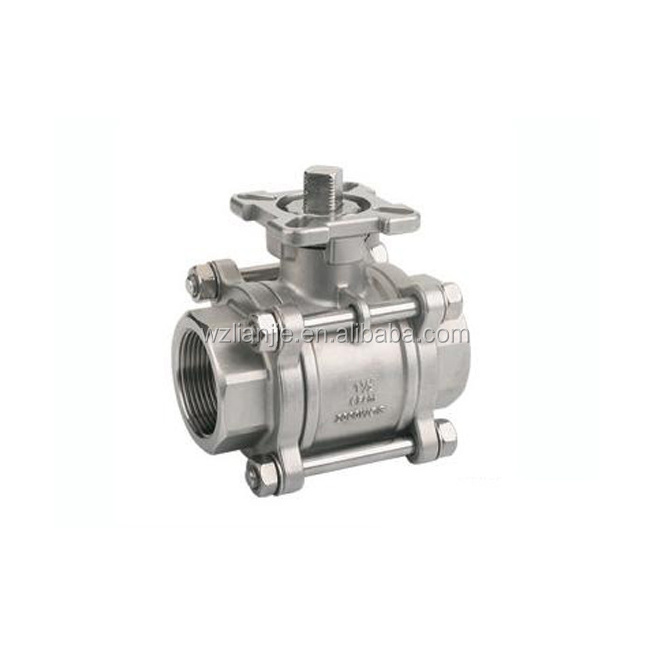

Stainless steel A351 CF8 CF8M 3pc ball valve /1000 wog Floating ball valve stem with ISO plate
Funcation description:
Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
Standards:
Design Standard:
ANSI B16.34 / API 600 / API 602
Inspection & Test:
API 598
Face To Face:
ANSI B16.10
Flange Connection:
ANSI B16.5 (For NPS≤24) / ANSI B16.47 SERIES B, ANSI 16.47 SERIES A, MSS SP-44 (For NPS >24)
Application:
Applicable Temperature:
-196℃ ~ 649 ℃
Main Materials:
WCB/CF8/CF8M/CF3/CF3M
Applicable Medium:
Water / Oil / Gas / Causticity Medium
Pressure Rating: 1000WOG/2000WOG
Size Range: 1/4" ~ 4"
Pictures:
Pressure Testing:
