Quick Details
-
Weight (KG):
-
600
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JYT Automation Equipment
-
Dimension(L*W*H):
-
3990*900*1468mm
-
Packing speed:
-
30-150bags/min
-
Sealing type:
-
Heat Sealer
-
Control system:
-
Control system
-
Packing material:
-
OPP/CPP/PE/PET
-
Bag type:
-
Back Sealing
-
Usage:
-
Widely Used
-
Main Function:
-
Filling Sealing Wrapping
-
Machine type:
-
Pneumatic
-
Product Keywords:
-
wrapping,sealing,filling,packing
-
Feature:
-
Servo Automatic Packing Machine
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Bags, Film, Pouch
-
Packaging Material:
-
Plastic, OPP/CPP/PE
-
Weight (KG):
-
600
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JYT Automation Equipment
-
Dimension(L*W*H):
-
3990*900*1468mm
-
Packing speed:
-
30-150bags/min
-
Sealing type:
-
Heat Sealer
-
Control system:
-
Control system
-
Packing material:
-
OPP/CPP/PE/PET
-
Bag type:
-
Back Sealing
-
Usage:
-
Widely Used
-
Main Function:
-
Filling Sealing Wrapping
-
Machine type:
-
Pneumatic
-
Product Keywords:
-
wrapping,sealing,filling,packing
-
Feature:
-
Servo Automatic Packing Machine

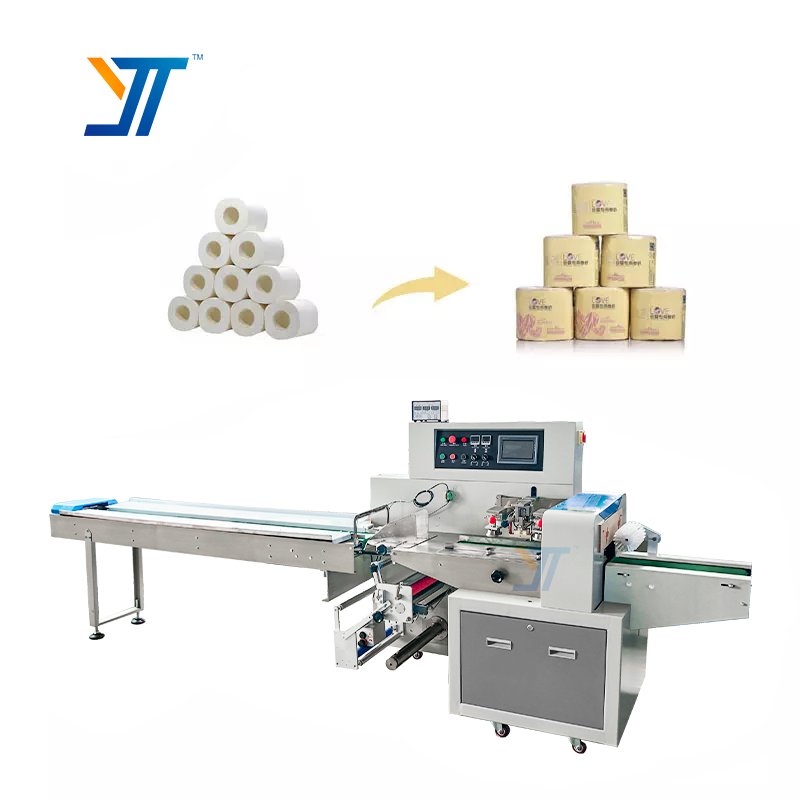

Wholesale High Speed Napkins Toilet Tissue Wipe Pack Machine Single Toilet Paper Roll Packing Machine
Machine Introduction
Packaging Application
Automatic flow packing machine is a widely used packing machine. Suitable for all kinds of product packaging. Including medical supplies, vegetables and meat, baked bread, snacks and candy, daily necessities, hardware accessories, etc.
Packing Effect
The effect after packaging is back-seal bag. According to demand, other devices can be customized or upgraded to meet other models. For example, pillow bag with hole, bag with label, gusset bag, etc.
Machine characteristics and parameters
1. Double frequency conversion control, the bag length canbe set and cut, no need to adjust the air, one step in place, saving time and film.
2. Man-machine interface, parameter setting is convenient and quick.
3. Fault self-recognize function, fault display at a glance.
4. High-sensitivity photoelectric eye color tracking, digital input sealing position, make sealing position more accurate.
5. Temperature independent PID control, better suitable for various packaging materials.
6. Positioning stop function, no sticky kuife, no waste film.
7. The transmission system is simple, the work is more reliable, and maintenance is more convenient.
8. All control is implemented by software, which is convenient for function adjustment and technical upgrade, and never lags behind.
3. Fault self-recognize function, fault display at a glance.
4. High-sensitivity photoelectric eye color tracking, digital input sealing position, make sealing position more accurate.
5. Temperature independent PID control, better suitable for various packaging materials.
6. Positioning stop function, no sticky kuife, no waste film.
7. The transmission system is simple, the work is more reliable, and maintenance is more convenient.
8. All control is implemented by software, which is convenient for function adjustment and technical upgrade, and never lags behind.
|
Model NO.
|
JYT-250X
|
JYT-350X
|
JYT-450X
|
JYT-600X
|
|||
|
Film Width
|
Max.250mm
|
Max.350mm
|
Max.450mm
|
Max.600mm
|
|||
|
Product Height
|
Max.40/70mm
|
Max.45/80mm
|
Max.110mm
|
Max.110mm
|
|||
|
Bag Length
|
45-190 or
90-330mm
|
65-280 or
90-330mm
|
120-450mm
|
130-450mm
|
|||
|
Bag Width
|
30-110mm
|
50-160mm
|
60-210mm
|
60-280mm
|
|||
|
Packaging Speed
|
40-230 bags/min
|
40-230 bags/min
|
30-150 bags/min
|
30-150 bags/min
|
|||
|
Machine Weight
|
800KG
|
900KG
|
900KG
|
1050KG
|
|||
|
Machine Size
|
3920*670*1320mm
|
4020*720*1450mm
|
3990*900*1468mm
|
3990*1000*1468mm
|
|||
|
Optional Device
|
Date coder,Air-filling device,Punching device
|
|
|
|
|||
Machine Details
This machine is easy to operate. Just set the parameters on the screen, and then you can start the machine. Put the product on the conveyor belt, the machine will automatically pull the film, the bag is formed, sealed, and finally the bag is cut.
Multilingual touch screen
The machine supports various language customization, easy to operate.
High sensitivity eye sensor
The eye sensor automatically senses the color code to ensure accurate and beautiful packaging effects.
Replaceable bag former
When you want to change the bag width, you only need to change a different size bag fromer.
Electronic control component
Use Panasonic PLC and frequency converter to ensure the stable operation of the machine.
