Quick Details
-
Model Number:
-
MY-B006A
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Blood gas and Chemistry Analysis System
-
Throughput:
-
Results in 1 minute after sample aspiration
-
Sample volume:
-
120uL
-
Quality control:
-
3 or 5 levels QC, External electronic simulator
-
Display:
-
7-inch color LCD Display, 800*480
-
Interface:
-
4xUSB 2.0 host, 1xRS232, WLAN
-
Input device:
-
Touch screen and barcode scanner
-
Power supply:
-
100-240VAC,50/60HZ
-
Dimensions (W*H*D):
-
238*153*310 mm
-
Weight:
-
3.65 KG
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
Mayamed
-
Model Number:
-
MY-B006A
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Blood gas and Chemistry Analysis System
-
Throughput:
-
Results in 1 minute after sample aspiration
-
Sample volume:
-
120uL
-
Quality control:
-
3 or 5 levels QC, External electronic simulator
-
Display:
-
7-inch color LCD Display, 800*480
-
Interface:
-
4xUSB 2.0 host, 1xRS232, WLAN
-
Input device:
-
Touch screen and barcode scanner
-
Power supply:
-
100-240VAC,50/60HZ
-
Dimensions (W*H*D):
-
238*153*310 mm
-
Weight:
-
3.65 KG
Product Description

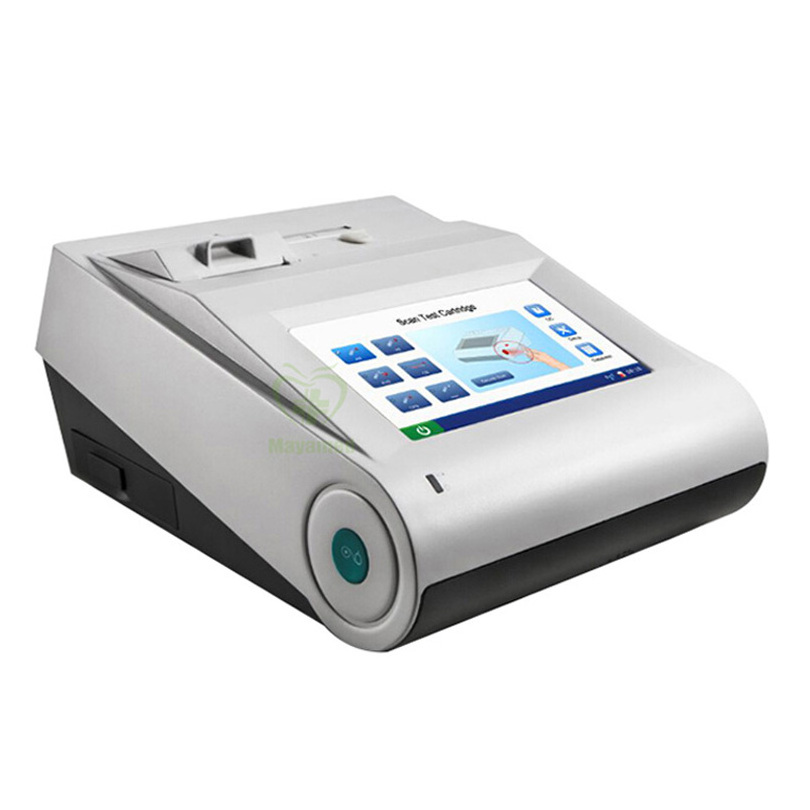

Portable Mobile Blood Gas Analyzer blood testing equipments veterinary electrolytes blood gas analyzer
Specification
|
Features for blood gas analyzer:
Blood Gas and Chemistry Analyzer The Blood Gas and Chemistry Analyzer is an electronic instrument
which is used to analyze whole blood samples (measuring blood gases, electrolytes, metabolites, and hematocrit). The analyzer can: Scan bar codes of test cartridges, calibrant fluid packs, controls, calibration verification controls, patient and operator ID, etc. Identify the types of test cartridges. Control the flow of fluids. Maintain sample temperature at 37C. Measure the ambient barometric pressure and ambient temperature. Measure electrical signals generated by chemical sensors and biosensors.
Analyze and display the concentrations of analytes in whole blood samples. Transmit test results to the Data Management System (DMS) or HIS/LIS.
Store all kinds of test results and data, such as patient sample results, control test results, proficiency test results,
calibration verification test results, simulator test results, etc. Animatedly demonstrate the operating process. Data Management System (DMS) DMS refers to a computer which is loaded with the data management system software. With the DMS, you can: Enter test application data. Edit patient information, view, check and print test results. View, check and print quality control (QC) test results.
Search for patient test results by patient name, patient ID, date and time, department, etc. Calculate the amount of work
of a physician, the results for a parameter of a patient during a period, the test times and the fee of a parameter, and print the statistics results.
Set the following items: test physician, department, sample status, printing, bar code, etc. Backup and restore data, view logs. View data for instrument diagnosis.
Import patient information from HIS/LIS. Manage up to 20 analyzers simultaneously, storing test results transmitted by analyzers.
|
|
Reaction Time 60 seconds
Throughput Single measuring mode 60 T/H;
continuous measuring mode 120 T/H
Display LCD screen
Memory Capacity 5000 results
Strip URIT 10G/11G/14G urine reagent strip
Interface: Serial port (RS232), parallel port (external printer),PS/2 (barcode reader)
Work Condition Environment temperature: 15-3013, RHW80%, lumination〈2000lx
Power Supply Instrument: 12V DC;
Adapter: 100V-240V, 50/60Hz
Dimension & Weight 290 mm (L) x 200 mm (W)x 100 mm (H), 2 kg
|
