Quick Details
-
Place of Origin:
-
Shandong China
-
Product name:
-
two straight load trailer
-
Material:
-
Hot Dip Galvanized RHS
-
Light:
-
LED Light
-
Color:
-
Single or Double or Customized
-
Brake:
-
Double Axle Electric Brakes
-
Finish:
-
Painted
-
Certificate:
-
ISO9001:2008
-
Wheel:
-
Four Wheel
-
Package:
-
3 Sets/ 40HQ
Quick Details
-
Max Payload:
-
1800kg
-
Brand Name:
-
Jinlida
-
Size:
-
3925*2270*2590mm
-
Place of Origin:
-
Shandong China
-
Product name:
-
two straight load trailer
-
Material:
-
Hot Dip Galvanized RHS
-
Light:
-
LED Light
-
Color:
-
Single or Double or Customized
-
Brake:
-
Double Axle Electric Brakes
-
Finish:
-
Painted
-
Certificate:
-
ISO9001:2008
-
Wheel:
-
Four Wheel
-
Package:
-
3 Sets/ 40HQ
China imported two horse straight load trailer figerglass horse float roof
- Australian standard
- high quality
- the best service
Product Overviews

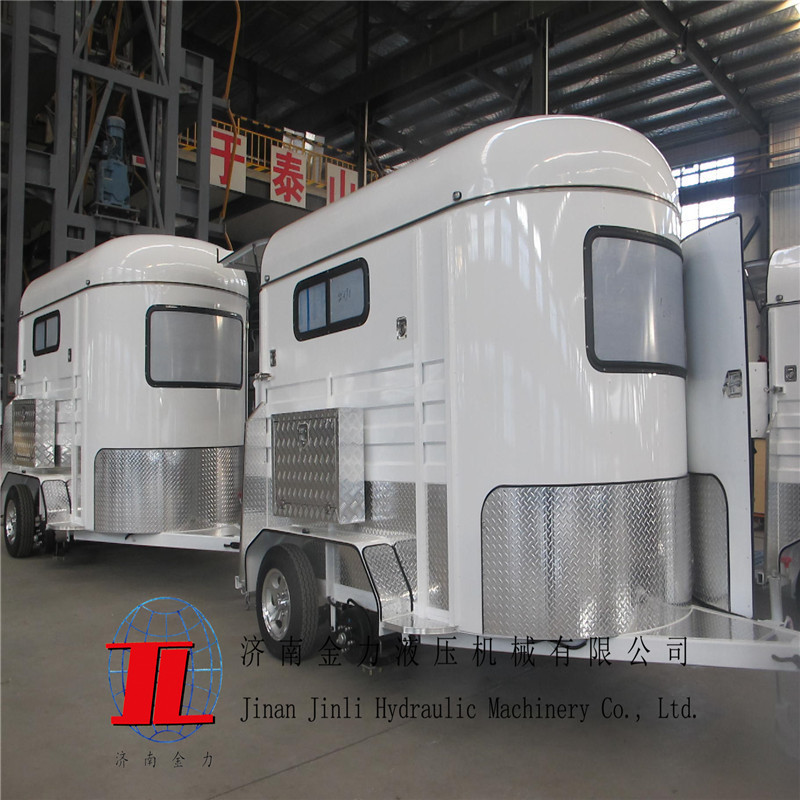

2 Horse Straight Load Float-Standard
| Model NO. | 2HSL-S | Origin | jinan ,shandong,PRC |
| Overall Dimension | 3925*2270*2590mm | Dimension | 3075*1750*2230mm |
| Maxmum Internal Dimension of Body | 3050*1700*2155mm | color | single or customized |
| Production Capacity | 20Units/Month | shipping | via sea from Qingdao port |
| Packing | loading in bulk fixed on the floor of container | payment | T/T 30% deposit in advance ,the balance should be paid against copyof B/L date |
| Empty Weight | 1250kg | Max Payload | 1800kg |
| MOQ | 3 Units in 1*40'HQ |
| Overall Dimension | 3925*2270*2590mm |
| Dimension of Body | 3075*1750*2230mm |
| Maximum Internal Dimenson of body | 3050*1700*2155mm |
| Chassis | hot galvanized RHS(3.5mm-4.0mm) |
| Frame | hot galvanized RHS(2.5mm) |
| Body | Galvanized iron sheet (1.0mm-1.5mm) |
| Roof | glass fibre reinforced plastic 3075*1750mm |
| Wheel / Tyre | alloy wheel 185R14C |
| Spare wheel | 1,mounted outside |
| Suspension | 5 leaf plate spring suspension (400KG/leaf),independent |
| Axles | trailer axles |
| Brake System | one axle electric brake with break-away systems |
| Front Window | 1220*610 polycarbonate wind shield |
| Side window | two rectangle(diamond) sliding windows ,one each side |
| side door | one |
| Tum light | two each side (except tail lights) |
| Tail lights | one set |
| Horse Divider | soft cushion |
| Decorative Front panel | aluminium checkered plate 1.2 mm |
| Mudguard | partialy decorate with aluminium checkered plate |
| Pedal Plate | decorate with aluminium checkered plate |
| Extemal Tie Hooks | four ,two each side |
| Jockey Wheel | swing -up jockey wheel |
| A kitchen | none |
| Roof Vents | two vents |
| Saddle Stents | none |
| Toolbox | none (optional ) |
| Hay Rack | yes horse bay |
| Tailgate (upper) | 2020*1065mm,pneumatic spring -loaded |
| Tailgate /Ramp Door | 2020*1210mm,pneumatic spring -loaded ,10mm rubber custion |
| Horse Area | 10mm rubber floor |
| Side Area inner | 6mm rubber cushion |
| Taillight Mounting Plate | aluminium checkered plate |
